BILOBA BL 8010 Adjustable double-sided hydraulic hinge for glass interior and exterior doors

BILOBA BL 8010 Adjustable double-sided hydraulic hinge for glass interior and exterior doors

Manufacturer  - SIMONSWERK GROUP / COLCOM (Italy)

• double-sided hinge for all-glass doors hydraulic self-closing function ensuring soft and controlled door closure
• connection: wall/glass
• suitable for interior and exterior doors protected from severe weather conditions (such as heavy rainstorms etc.)
• fit for use indoors for dividing doors in spaces such as medical practices or in large open-plan spaces
• elegant and smart solution for modern office and public spaces with high aesthetic and functional standards
• certified according to EN 1154, grade 3 / 500 000 test cycles
• adjustable closing speed according to door weight, width and user needs
• constant braking control

Technical data

• max door opening angle: 90°
• automated closing from 80°
• hold open: 90°
• glass thickness: 8 - 13.52 mm
• max door leaf weight: 100 kg (2 hinges per leaf)
• min leaf width: 800 mm
• max leaf width: 1000 mm
• operational temperature range: from -15 °C to +40 °C
• hinge with loading - to be used on doors with closing stop
• for installation in aggressive environment (such as high levels of humidity, acid or saline), please consult product distributors first
• available finishes:

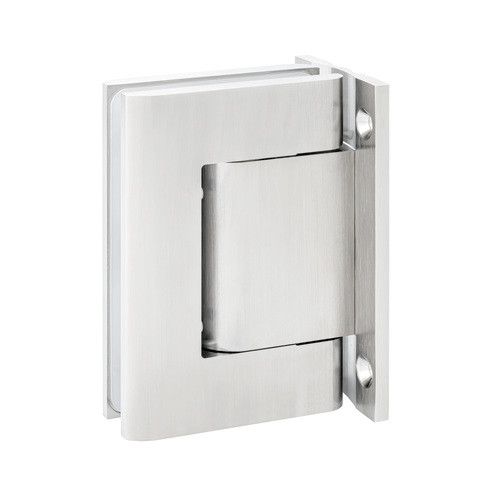

  • EV1 natural silver tone, anodised 20μm (002)
  • chrome tone, polished (014)

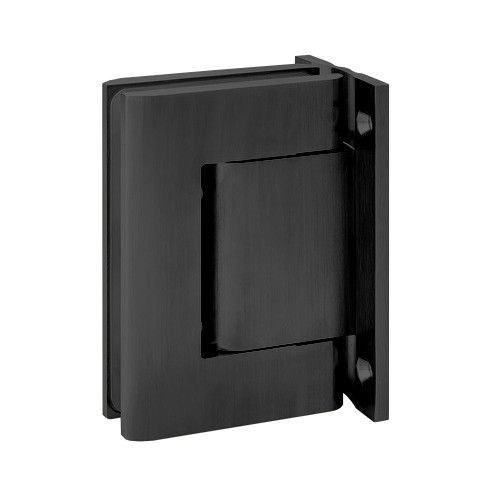

  • black, satin anodised (005)
  • stainless steel tone PVD, matt (013)

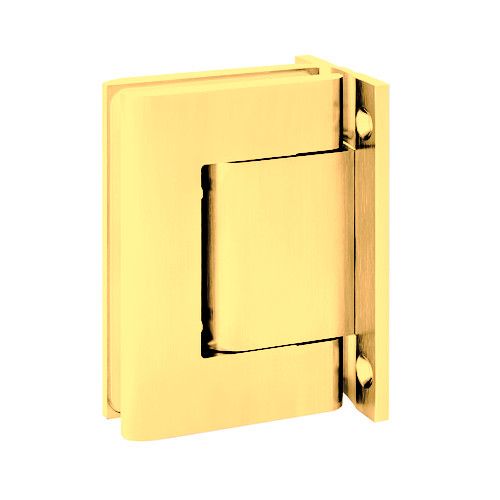

  • gold tone PVD, polished (016)

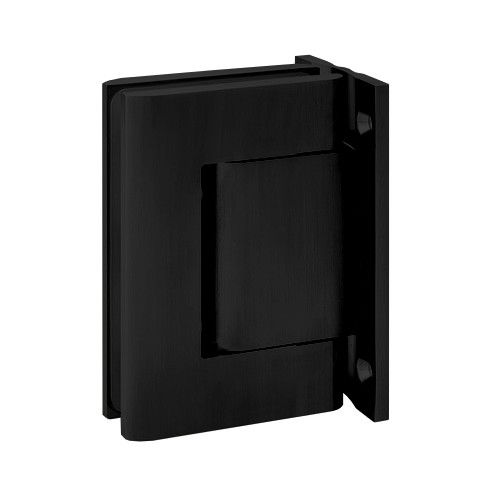

  • RAL 9005 black, electrostatic coated (062)

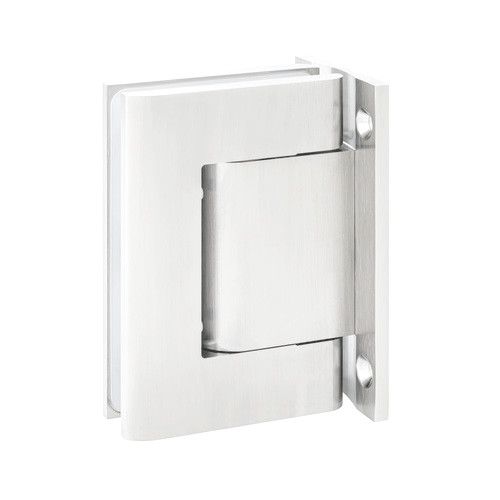

  • RAL 9016 white, electrostatic coated (095)
