BILOBA BL 8010 SOL Double-sided hinge for all-glass interior doors in public or private spaces

BILOBA BL 8010 SOL Double-sided hinge for all-glass interior doors in public or private spaces

Manufacturer  - SIMONSWERK GROUP / COLCOM (Italy)

• double-sided hinge for all-glass doors
• connection: wall/glass
• fit for use indoors for dividing doors in spaces such as medical practices or in large open-plan spaces
• elegant and smart solution for modern office and public spaces with high aesthetic and functional standards

Technical data

• max door opening angle: 90°
• glass thickness: 8 -13,52 mm
• max door leaf weight: 100 kg (2 hinges per leaf)
• min leaf width: 800 mm
• max leaf width: 1000 mm
• for installation in aggressive environment (such as high levels of humidity, acid or saline), please consult product distributors first
• available finishes:

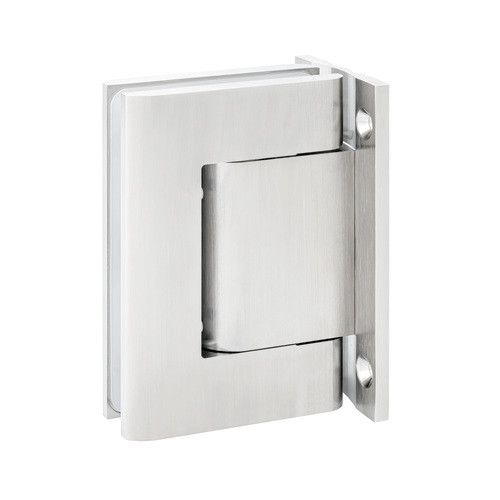

• • EV1 natural silver tone, anodised 20μm (002)
  • chrome tone, polished (014)

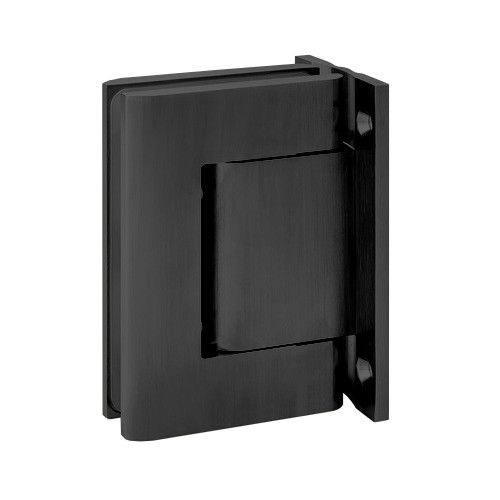

  • black, satin anodised (005)
  • stainless steel tone PVD, matt (013)

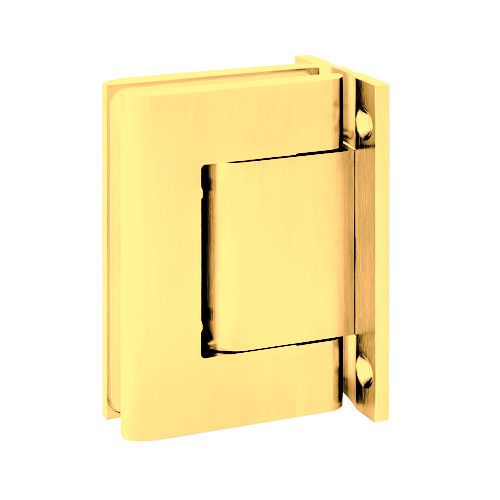

  • gold tone PVD, polished (016)

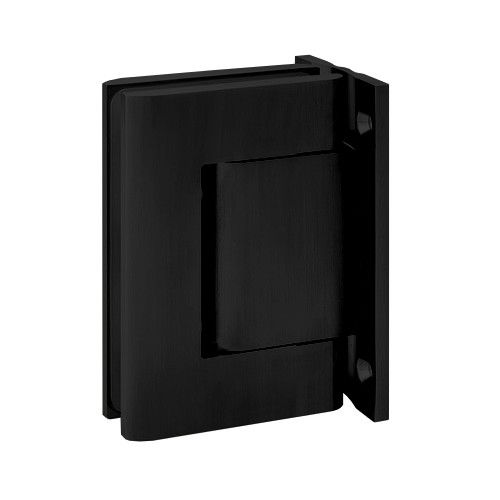

  • RAL 9005 black, electrostatic coated (062)

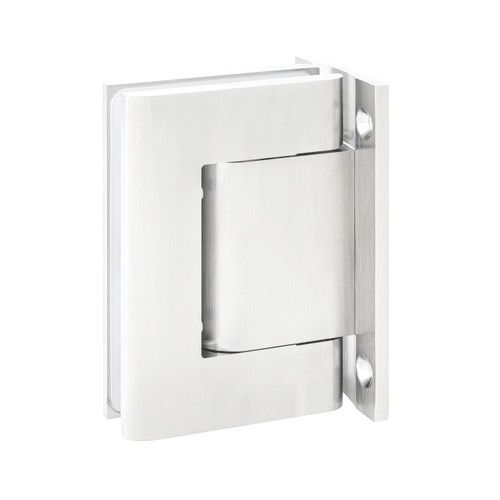

  • RAL 9016 white, electrostatic coated (095)
