Multi-point lock with round bolts KFV AS4350

Product code
MB00000265
All prices include VAT
From €110.63
From €110.63
In Stock
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.

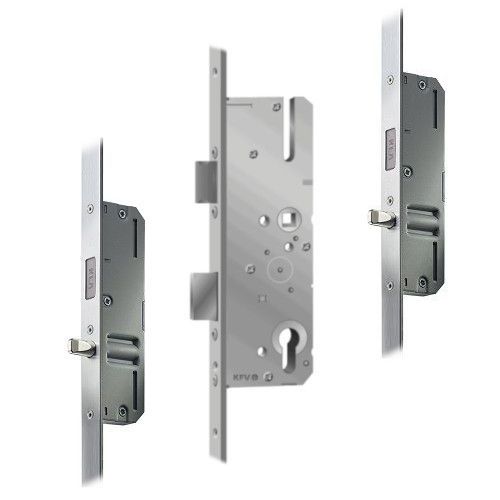

Multi-point lock with round bolts KFV AS4350
Manufacturer - KFV

    • multi-point lock with 3 locking points - main lock bolt and auxiliary lock round bolts
    • all bolts and latches are handle-operated
    • suitable for both left and right hand doors
    • anti-intruder protection with multiple bolts
    • back-pressure and anti-sawing protection
    • tight seal provides sound and heat insulation
    • compatible with standard door hardware
    • corresponds with DIN V 18103 (ET1, ET2, ET3) standard for doors with anti-intruder protection
    • long galvanised, yellow chrome-plated face plate with main lock and 2 auxiliary locks
    • main lock compatible with cylinder, latch is not key-retractable, bolt projection: 15 mm
    • main lock with lined holes for screws up to M6 - for fixing backplate into its place
    • 2 auxiliary locks, located on both sides of the main lock
    • all locking components are bright nickel-plated, all lock cases - galvanised and closed
    • centre distance: 72 / 92 mm
    • spindle depth: 35 - 65 mm
    • spindle square: 8 mm
    • compatible with standard backplates and cylinders according to DIN 18254 and with electric door openers
    • available finishes: light galvanised (face plate)

Lock operation
Locking from outside / inside
  • lifting the handle up (1) locks the round bolts of the auxiliary locks
  • turning the key 360° locks the deadbolt of the main lock and the handle is locked

Unlocking from outside / inside

  • turning the key 360° unlocks the mechanism
  • pressing the handle down (3) opens the door

Set

Separate strike plates:
  • central 19-267 + upper/lower 2300-08-20-1R
  • central 15-530E + upper/lower 3615-530Q/31
  • central 19-504 V + upper/lower 2319-504V
  • central 19-503 V + upper/lower 3619-503V-31
  • central 19-512V + upper/lower 2319-512V
  • central SLK 881-083 A /DZM 402-00031 + upper/lower SLK 2600-267-2W/31

Milling sizes

Cutter type  A
Total length (mm)
 B
Distance from handle centre to lower part centre (mm)
 C
Distance from handle centre to upper part centre (mm)
 G
Distance from handle centre to bottom (mm)
 B001  2170  760  730  1020
 B003   2400  760  980  1020













Lietošanas instrukcija


    •
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

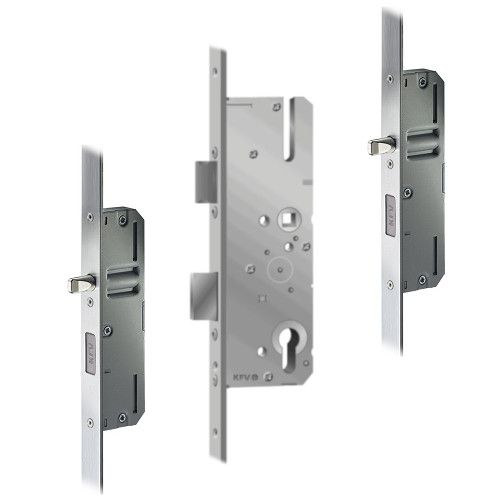

  1. AS-4350-F-PZ 16-55/92-8 light galvanised, Cutter B001, multi-point lock, KFV
    AS-4350-F-PZ 16-55/92-8 light galvanised, Cutter B001, multi-point lock, KFV
    Code: SB00003685
    Art. Nr.: 3468186
    Price:
    From €110.63
    In Stock: 4 pc.
  2. AS-4350ANXF 55/72-20 universal multi-point lock B001, lightly galvanised
    AS-4350ANXF 55/72-20 universal multi-point lock B001, lightly galvanised
    Code: SB00003939
    Art. Nr.: 3490150
    Price:
    From €110.63
    In Stock: 10 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. 8035-45-F-20/31 Face plate extension for multi-locks AS, 20x3x400 mm, light galvanized
    8035-45-F-20/31 Face plate extension for multi-locks AS, 20x3x400 mm, light galvanized
    Code: SB00003300
    Art. Nr.: 3119274
    Price:
    From €17.06
    In Stock: 6 pc.
Manufacturer KFV
latch type bolts (round bolts)
locking elements polished nickel-coated
number of locking points 3
lock case galvanised closed
lock cutter type B001 / B003
round bolt projection 20 mm
round bolt diameter 11 mm
lock operation type with handle
fire safety not suitable for fire safety doors
possible spindle depth 35 - 65 mm
bolt projection 15
door direction universal use for DIN right and left hand doors
face plate finish gaiši cinkota
load capacity high
compatibility standard German (DIN)
leaf material for wooden, metal and framed doors
purpose for exterior doors
lock type multi-point lock for hinged doors
sound insulation yes
face plate width 16 / 20 / 24 mm
face plate shape square or U-profile
installation type mortise
latch not key-retractable
class as per EN 12209 (DIN 18251) not certified
locking function PZ - with profile cylinder hole
lock operation mechanical
lock bolt single turn (central lock)
handle square spindle size 8 mm
centre distance PZ 72 / 92 mm
face plate length 2170-2400 mm
