Multi-point lock with hooks KFV AS2500 PZ/92
Product code
MB00000956
All prices include VAT
Out of stock
Only %1 left
May be substituted with BS2500 lock. Milling parameters are identical.

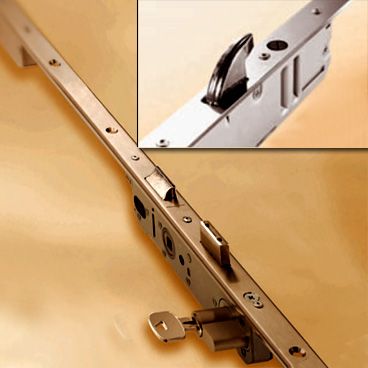

Multi-point lock with hooks KFV AS2500 PZ/92
Manufacturer - KFV
Security features
Advantages
Areas of use
Milling sizes:
Set
Separate strike plates
Joint strike plates
Electric strikes
Manufacturer - KFV
-
- multi-point lock with 3 locking points
- all locking components are operated by key
- suitable for both left and right hand doors
- anti-intruder protection with multiple bolts
- compatible with standard door hardware
- standardised routing template

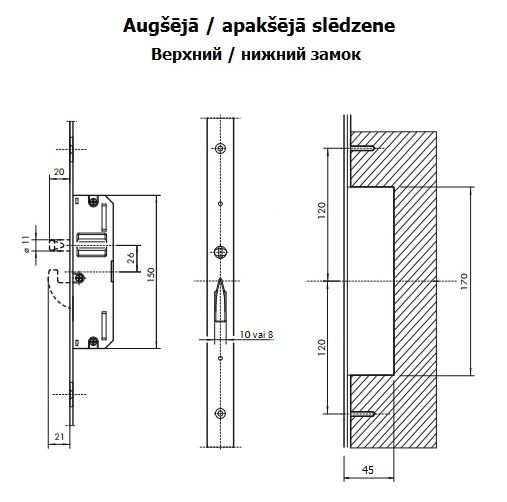

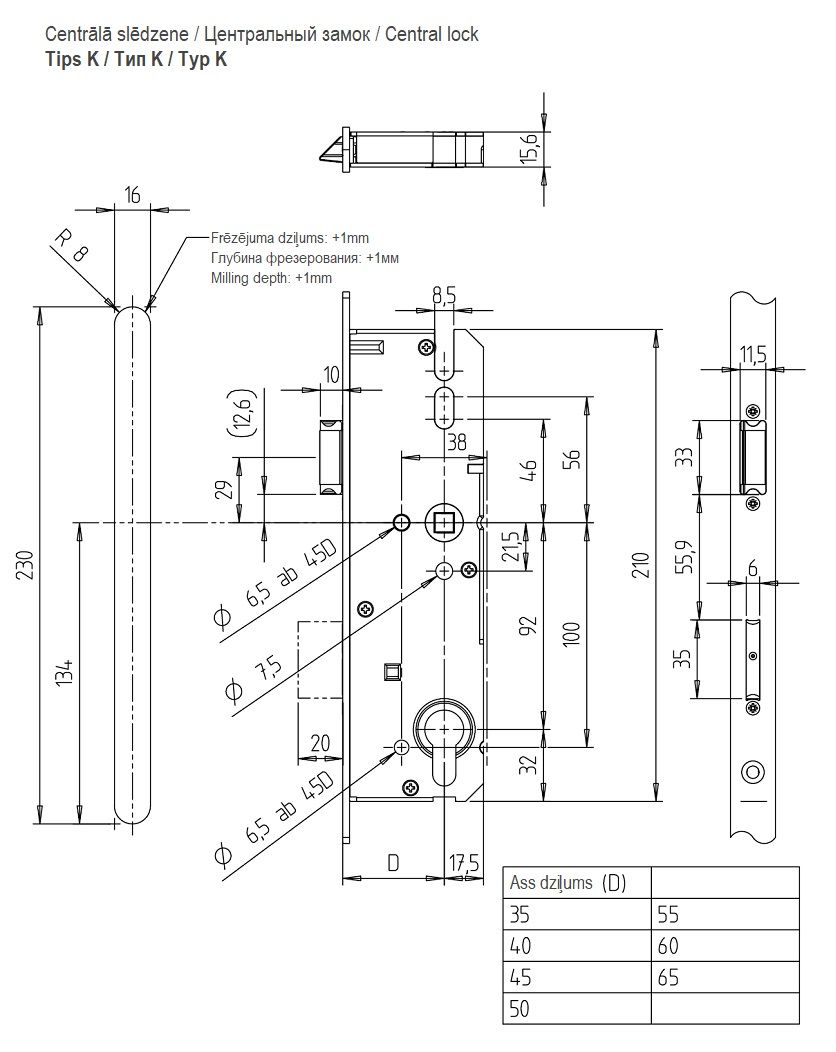

- main lock compatible with profile cylinder and has 2 auxiliary locks on either side with hooked bolts
- spindle depth D: 45 mm
- centre distance: 92 mm
- key-retractable latch, double throw bolt projection: 20 mm
- hooked bolt projection: 21 mm
- main lock with lined holes for screws up to M6 - for fixing backplate into its place
- handle spindle square: 8 mm
- all locking components are bright nickel-plated, all lock cases - galvanised and closed
- face plate width: 20 mm, thickness: 3 mm
- main lock casing heigth: 210 mm, casing thickness: 16 mm
- distance from the cylinder centre to the back of the casing: 17,5 mm
- face plate finish: light galvanised
- cutter type: B298
Security features
-
- hooked bolts prevent intruders from prising the door open and secure high back-pressure protection
- tempered steel elements notably improve lock durability
- main lock deadbolt is secured against sawing and thus hinders break-in attempts
Advantages
-
- door tightening ensures an optimal seal to prevent draughts
- the tight seal provides sound and heat insulation
- smooth latch-lever mechanism is easy to use
- the lock retains its perfect functionality even after prolonged and intensive use
- the patented technology guarantees easy and accurate fitting
- the hooks lock from the bottom up thus preventing the door from warping and securing tight sealing
Areas of use
-
- for residential front doors, for basement doors and back doors
- for apartment doors
- for extra high interior doors
- and for other areas where high security and protection against warping is required

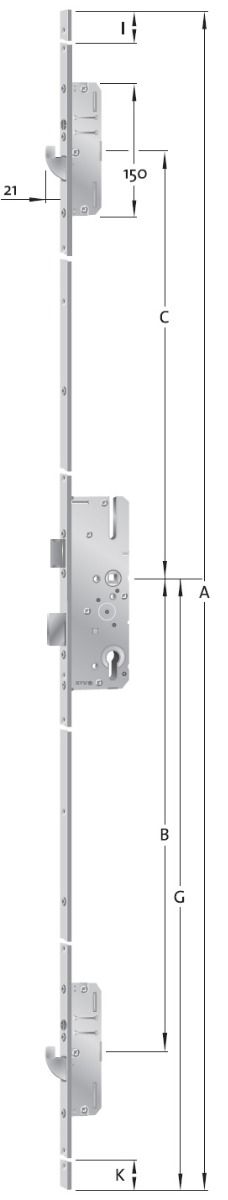

Milling sizes:
| Cutter type | A Total length (mm) |
B Distance from handle centre to lower part centre (mm) |
C Distance from handle centre to upper part centre (mm) |
G Distance from handle centre to bottom (mm) |
I Max face plate shortening from top (mm) |
K Max face plate shortening from bottom (mm) |
| B298 | 2170 | 760 | 605 | 1020 | 415 | 130 |
Set
Separate strike plates
- central 15-530E + upper/lower 3615-530Q/31
- central 19-503 V + upper/lower 3619-503V-31
- central SLK 881-083 A /DZM 402-00031 + upper/lower SLK 2600-267-2W/31
- central 8050-752ERH
- upper/lower 2500-03-20R
- upper/lower 2830-03-20R
Joint strike plates
- joint BD25-2-230ERQH/31 B001
- joint locking rail BS60-230ERQH/31
Electric strikes
- Effeff 118E130
- rolling latch module 115 B
Lietošanas instrukcija
Dokumentācija
Additional products
- Products
- Price
- In Stock
- Quantity
-
8035-45-F-20/31 Face plate extension for multi-locks AS, 20x3x400 mm, light galvanizedCode: SB00003300Art. Nr.: 3119274Price:From €17.06In Stock: 7 pc. -
ZSK 201-TR-8084/v-45 auxiliary lockCode: SB00004005Art. Nr.: 3502007Price:From €56.37In Stock: 2 pc.
-
ZSK 201-TR-8084/v-55 auxiliary lockCode: SB00004006Art. Nr.: 3502009Price:From €56.37In Stock: 5 pc.
| Manufacturer | KFV |
|---|---|
| latch type | hooks |
| locking elements | polished nickel-coated |
| number of locking points | 3 |
| lock case | galvanised closed |
| lock cutter type | B298 |
| round bolt projection | 20 mm |
| round bolt diameter | 11 mm |
| hook bolt projection | 21 mm |
| lock operation type | with key |
| fire safety | option for fire safety doors available on request |
| possible spindle depth | 45 mm |
| bolt projection | 20 mm |
| door direction | universal use for DIN right and left hand doors |
| face plate finish | gaiši cinkota |
| load capacity | high |
| compatibility standard | German (DIN) |
| leaf material | for wooden, metal and framed doors |
| purpose | for exterior doors |
| lock type | multi-point lock for hinged doors |
| sound insulation | yes |
| face plate width | 16 mm |
| face plate shape | square |
| installation type | mortise |
| latch | key-retractable (central lock) |
| class as per EN 12209 (DIN 18251) | class 3 according to DIN 18251-3 / class 6 according to EN 12400 |
| locking function | PZ - with profile cylinder hole |
| lock operation | mechanical |
| lock bolt | double turn (central lock) |
| handle square spindle size | 8 mm |
| centre distance PZ | 92 mm |
| face plate length | 2170 mm |
