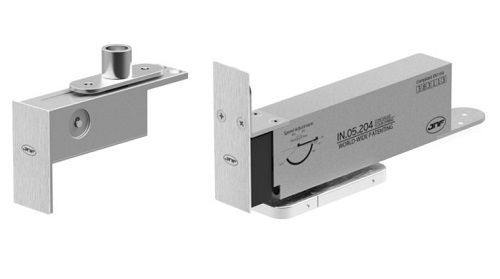

Pivot system with closer IN.05.204
Product code
MB00001374-A
All prices include VAT
From
€252.89
Only %1 left
Pivot system with adjustable closer for single or double non-rebated doors.
Maximum leaf weight: up to 100 kg.
Maximum leaf weight: up to 100 kg.
Pivot system with closer IN.05.204
Manaufacturer - JNF (Portugal)
Manaufacturer - JNF (Portugal)
-
- suitable for single or double non-rebated wooden doors
- max leaf weight 100 kg
- hydraulic axle with closer
- simple installation
- adjustable closing speed: fast/slow
- patented worldwide
- door adjustment system: +/- 3 mm in all directions horizontally, fixing position +/- 4°
- fixed to floor without damaging the surface
- suitable for door thickness from 40 mm and maximum door width: 1000 mm
- material: stainless steel EN 1.4301 (AISI 304) satin
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Pivot system with closer, max weight 100 kg.Code: SB00013929Art. Nr.: IN05204Price:From €252.89In Stock: 5 kit
| Manufacturer | JNF |
|---|---|
| door direction | universal use for DIN right and left hand doors |
| closer operating type | hydraulic closer |
| installation type | pie grīdas / integrēts grīdā |
| fire safety | suitable for fire safety doors |
| closing speed | adjustable |
| back check | no |
| maximum single leaf width | up to 1000 mm |
| hold open | yes, integrated |
| doorstop | no |
| application | for hinged and swing doors |
| closer type | flush hinge with closer function |
| door thickness | from 40 mm |
| leaf maximum weight | 100 kg |
| suitable for aluminium frames | suitable |
| suitable for steel frames | suitable |
| suitable for industrial frames | suitable using additional mounting parts |
| suitable for timber frames | suitable |
| anti-corrosion resistance | class 4 according to EN 1935 - very high |
| anti-corrosion resistance in accordance with EN 1935 | class 4 - very high |
| knuckle diameter | 23 mm |
