From
€276.73
ARRANGEMENT BG-SL - Installation door push side, the closer body on the leaf, and the guide rail installed onto the bottom of the frame with a mounting bracket.
Mounting accessories and auxiliary tools are listed in the section 'Additional products' of our Online shop.
Mounting accessories and auxiliary tools are listed in the section 'Additional products' of our Online shop.
Door closer GEZE TS 5000 L Soft Close with standard guide rail and mounting bracket for guide rail
ARRANGEMENT BG-SL
Manufacturer - GEZE (Germany)
- top-mounted door closer body with standard guide rail BG TS 5000/3000 with latching action and brake-to-stop function
- suitable for interior and exterior doors with single leaf
- door leaf width up to 1400 mm
- installed door push side - the closer body is installed onto the leaf, guide rail onto the bottom of the frame with a mounting bracket
- suitable for both left and right hand doors opening either inwards or outwards
- front adjusted thermo-constant closing speed
- front adjusted hydraulic latching action speed, thermo-constant closing speed and soft close mechanism
- adjustable closing force - sizes 2 - 6 according to EN 1154 A
- size '2'- for leaf width up to 850 mm
- size '3'- for leaf width up to 950 mm
- size '4'- for leaf width up to 1100 mm
- size '5'- for leaf width up to 1250 mm
- size '6'- for leaf width up to 1400 mm
- max opening angle: 180º
- certified for use in fire and smoke safety doors on the condition that closing size is set on 3 or higher
- all functions can be adjusted from the front
- visual closing force display for easy control of the setting
- closer body size: 287 x 47 x 60 mm
- colours: silver, white RAL9016, dark brown, black RAL9005
Standard guide rail
- with click-in controller
- not suitable for heavy impact
- opening restrictor available separately
- size (length x width x height): 448.5 x 30.5 x 20.5 mm

Both guide rails have identical fastening with 2 screws and identical mounting points against the door closer profile. Thus, the rails are easily interchangeable without changing the fastening.
Additional components required for installation
- Mounting bracket for guide rail
Guide rail can be mounted onto the bottom of the frame.
![]() |
![]() |
![]() |
![]() |
silver tone / standard guide rail SB00004543 |
white RAL9016 / standard guide rail SB00004165 |
dark brown / standard guide rail SB00004562 |
black RAL9005 / standard guide rail SB00004139 |
Auxiliary tools
- Closer body mounting plate 287 x 60 x 5 mm
Closer can be secured on the surface in more places other than the 3 screws on the closer's profile.
![]() |
![]() |
![]() |
![]() |
silver tone Product code: SB00004574
|
white RAL9016 Product code: SB00004598
|
dark brown Product code: SB00004578
|
black RAL9005 Product code: SB00004159
|
- Integrated opening restrictor
Alternative to doorstops.
Product code: SB00004599

- Integrated mechanical Hold-Open device
Holds the door in an open position. Only for use in doors without fire safety requirements!
Product code: SB00004600

All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

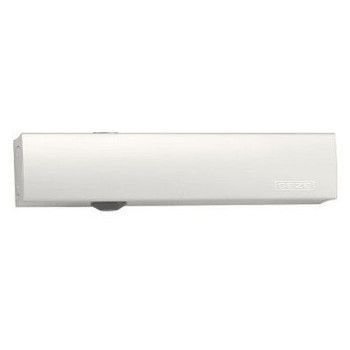

Door closer body TS 5000L SOFT CLOSE, white RAL9016Code: SB00023889Art. Nr.: 191211Price:From €234.14In Stock: 0 pc.
-

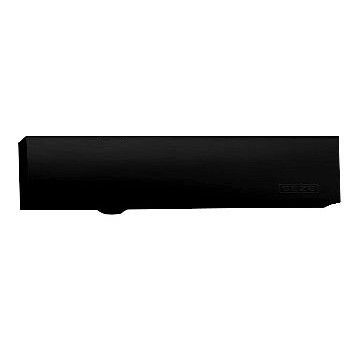

Door closer body TS 5000L SOFT CLOSE, black RAL9005Code: SB00023890Art. Nr.: 191210 black RAL9005Price:From €234.14In Stock: 0 pc.
-

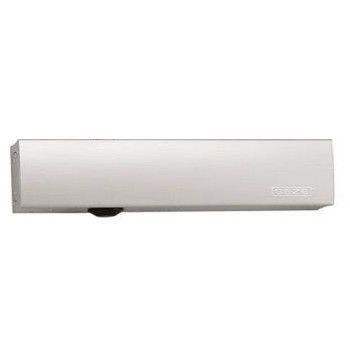

Door closer body TS 5000L SOFT CLOSE, silver toneCode: SB00023780Art. Nr.: 191210 sudrabaPrice:From €234.14In Stock: 0 pc.
-

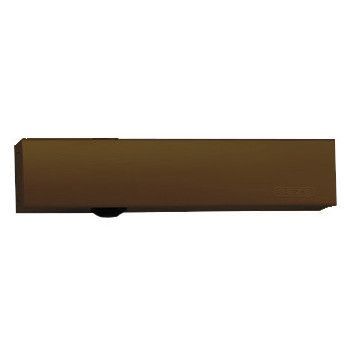

Door closer body TS 5000L SOFT CLOSE, dark brownCode: SB00023888Art. Nr.: 191210 bronzePrice:From €234.14In Stock: 0 pc.
-
Guide rail BG for door closer TS 3000/5000 L, white 9016Code: SB00004163Art. Nr.: 029404Price:From €26.86In Stock: 5 pc.
-
Guide rail BG for door closer TS 3000/5000 L, dark brownCode: SB00004162Art. Nr.: 029403Price:From €26.86In Stock: 3 pc.
-
Guide rail BG for door closer TS 5000 L, black RAL9005Code: SB00004137Art. Nr.: 198812Price:From €29.04In Stock: 10 pc.
-
Guide rail BG for door closer TS 3000/5000 L, silver toneCode: SB00004136Art. Nr.: 025655Price:From €26.86In Stock: 21 pc.
-

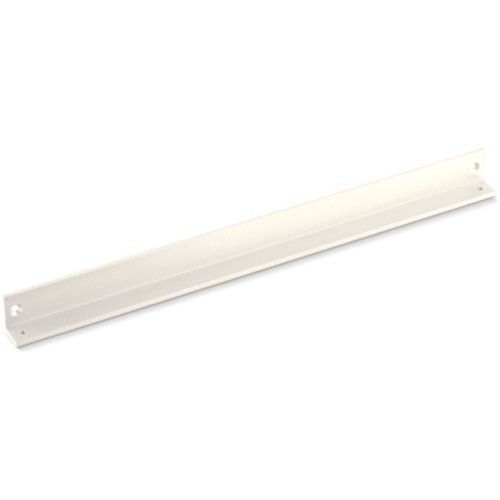

Mounting bracket for guide rail, white RAL9016Code: SB00004165Art. Nr.: 030034Price:From €15.73In Stock: 5 pc.
-

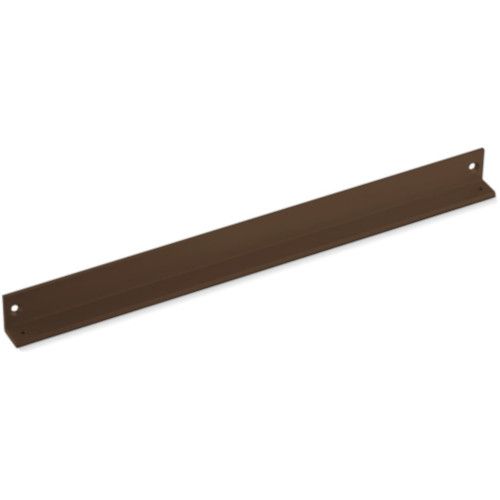

Mounting bracket for guide rail 5000/3000, dark brownCode: SB00004562Art. Nr.: 030033Price:From €15.73In Stock: 2 pc.
-

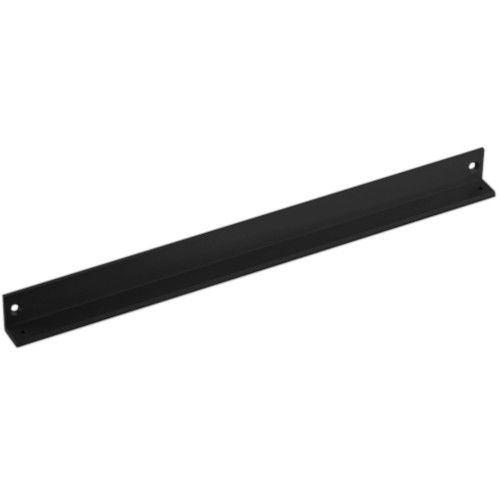

Mounting bracket for guide rail 5000/3000, black RAL9005Code: SB00004139Art. Nr.: 025658 RAL9005Price:From €15.73In Stock: 4 pc.
-

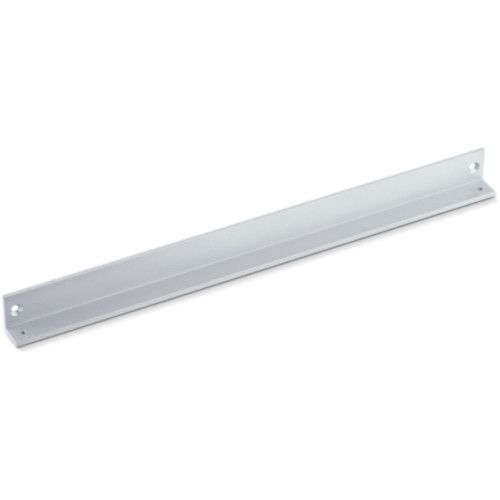

Mounting bracket for guide rail 5000/3000, silverCode: SB00004543Art. Nr.: 025657Price:From €15.73In Stock: 12 pc.
Additional products
- Products
- Price
- In Stock
- Quantity
-
Mounting plate for door closer 4000/5000, silverCode: SB00004574Art. Nr.: 049185Price:From €4.36In Stock: 6 pc.
-
Mounting plate for door closer 4000/5000, whiteCode: SB00004598Art. Nr.: 068627Price:From €6.96In Stock: 83 pc.
-
Mounting plate for door closer 4000/5000, dark brownCode: SB00004578Art. Nr.: 052351Price:From €6.96In Stock: 19 pc.
-
Mounting plate for door closer TS 4000/5000, black RAL9005Code: SB00004159Art. Nr.: 076508Price:From €7.74In Stock: 12 pc.
-
Opening restrictor for GEZE BOXER guide rails 20,7 mmCode: SB00004599Art. Nr.: 069780Price:From €15.49In Stock: 19 pc.
-
Guide rail locking unit for GEZE standard door closers - compatible with T-stop guide rail / Boxer 20.7 mm guide railCode: SB00004600Art. Nr.: 071924Price:From €17.55In Stock: 14 pc.
-
Skrūvju piederumi standarta un BG sliedei 3000/5000Code: SB00004196Art. Nr.: 068265Price:From €6.91In Stock: 5 pc.
Manufacturer | GEZE |
---|---|
Series | TS 5000 |
closer operating type | hydraulic closer |
closer type | with a track |
application | for hinged doors |
Papildu funkcijas | Soft Close |
installation type | opposite hinge side / profile on leaf |
Vērtņu skaits | 1 vērtne |
fire safety | suitable for fire safety doors |
closing force | size 2-6 according to EN 1154 |
closing force adjustment | continuous control with valve |
closing force adjustment position | from front |
back check | hydraulically adjustable |
maximum single leaf width | up to 1400 mm |
latching action | adjustable with valve |
hold open | built-in |
doorstop | built-in |
