Multi-point lock with hooks KFV AS2750 / AS2752

Product code
MB00000390
KFV View catalogue of manufacturer

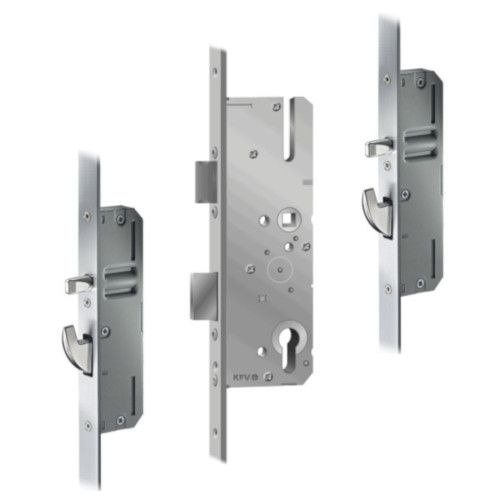

main product photo
All prices include VAT
From €113.39 €113.39
From €113.39 €113.39
In Stock
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Questions and answers
Durvju vērtņu virzieni saskaņā ar DIN 107
Slēgšanas veidi. Slēdzenes un rokturu garnitūras.
Durvju furnitūras kopšanas norādījumi.
Ražotāju BIM dati
Slēdzeņu lietošanas un kopšanas norādījumi
Multi-point lock with hooks KFV AS2750 / AS2752
Manufacturer - KFV

    • multi-point lock with 3 locking points - main lock bolt and auxiliary lock hooks
    • 3 'Sodtlock' latches - for extra security when the door is unlocked
    • stroke and all locking components are operated by key
    • suitable for both left and right hand doors
    • anti-intruder protection with multiple bolts
    • compatible with standard door hardware
    • long galvanised face plate with main lock and 2 auxiliary locks
    • main lock with lined holes for screws up to M6 - for fixing backplate into its place
    • 2 auxiliary locks, located on both sides of the main lock
    • auxiliary locks are fitted with self-locking latches and hooked bolts
    • hooked bolt thickness: 8 mm, projection: 21 mm
    • self-fixing Teflon alloy latches with noise reduction provide quiet lock operation and door closure
    • all locking components are bright nickel-plated, all lock cases - galvanised and closed
    • distance between handle hole and cylinder centres: 92 mm (AS2750) / 72 mm (AS2752)
    • distance D from cylinder centre to face plate: 35mm, 40mm, 45mm, 55mm, 65mm
    • spindle square: 8 mm or 10 mm
    • compatible with standard backplates and cylinders according to DIN 18254
    • available finishes:
      • stainless steel (face plate)
      • light galvanised (face plate)
  •
Security features
    • high security even when door is unlocked, with 3 'Softlock'
    • hooked bolts prevent intruders from prising the door open and secure high back-pressure protection
    • tempered steel elements notably improve lock durability
    • main lock deadbolt is secured against sawing and thus hinders break-in attempts
    • corresponds with DIN V 18103 (ET1, ET2, ET3) standards for doors with anti-intruder protection
    • locked with key

Advantages

    • door tightening ensures an optimal seal to prevent draughts
    • the tight seal provides sound and heat insulation
    • smooth latch-lever mechanism is easy to use
    • the lock retains its perfect functionality even after prolonged and intensive use
    • the patented technology guarantees easy and accurate fitting
    • the hooks lock from the bottom up thus preventing the door from warping and securing tight sealing
    • standard set includes adjustment module Q
    • standard set includes 'Softlock' latches

Areas of use
    • for residential front doors
    • for basement and back doors
    • for apartment doors and in other areas where doors tend to warp and require a high level of security
Set
Separate strike plates
  • central 15-530E + upper/lower 3615-530Q/31
  • central 19-503 V + upper/lower 3619-503V-31
  • central KFV SLK 881-083 A / DZM 402-00031 + upper/lower KFV 3630-752QR

Joint strike plates
  • joint BD25-2-230ERQH/31 B001
  • joint locking rail BS60-230ERQH/31

Milling sizes
Cutter type  A
Total length
 (mm)		  B
Distance from handle centre to lower part centre (mm)		  C
Distance from handle centre to upper part centre (mm)		  G
Distance from handle centre to bottom (mm)		  I
Max face plate shortening from top  (mm)		  K
Max face plate shortening from bottom (mm)
 B001  2170  760  730  1020  290  130
 B003  2400  760  980  1020  270  130
 B298  2170  760  605  1020  415  130

Face plate types
Model  Face plate type  Size (mm)
 AS2750 F 16  flat  16 x 3
 AS2750 F 20  flat  20 x 3
 AS2750 F 24  flat  24 x 3
 AS2750 P 6/24  U-shape  6 x 24 x 6 x 2
 AS2750 P 10/30  U-shape  10 x 30 x 10 x 2


Montāžas un lietošanas instrukcijas
AS2750 montāžas instrukcija AS2750 montāžas instrukcija
AS2750 lietošanas instrukcija AS2750 lietošanas instrukcija

Dokumentācija
Certificate IFT Rosenheim 230-7060937-1-6 Certificate IFT Rosenheim 230-7060937-1-6
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Multi-point lock AS-2750SLQF45/92-20-8, light galvanised, B298
    Multi-point lock AS-2750SLQF45/92-20-8, light galvanised, B298
    Code: SB00003516
    Art. Nr.: 3491612
    Price:
    From €135.34
    In Stock: 6 pc.
  2. AS-2750SLQFPZ 35/92-16-8, brightly galvanized, B001
    AS-2750SLQFPZ 35/92-16-8, brightly galvanized, B001
    Code: SB00003739
    Art. Nr.: 3468659
    Price:
    From €128.64
    In Stock: 5 pc.
  3. Multi-point lock AS-2750-SLQFPZ 45/92-20-8, brightly galvanized, B001
    Multi-point lock AS-2750-SLQFPZ 45/92-20-8, brightly galvanized, B001
    Code: SB00003756
    Art. Nr.: 3472414
    Price:
    From €113.39
    In Stock: 4 pc.
  4. Multi-point lock AS-2750-SLQF45/92-20-8, brightly galvanized, B003
    Multi-point lock AS-2750-SLQF45/92-20-8, brightly galvanized, B003
    Code: SB00003912
    Art. Nr.: 3486285
    Price:
    From €129.24
    In Stock: 18 pc.
  5. Multi-point lock AS-2750-QFPZ 45/92-16-8, brightly galvanized, B001
    Multi-point lock AS-2750-QFPZ 45/92-16-8, brightly galvanized, B001
    Code: SB00003929
    Art. Nr.: 3489073
    Price:
    From €135.34
    In Stock: 47 pc.
  6. AS-2752SLQF 55/72-20-8, B001, Brightly galvanized
    AS-2752SLQF 55/72-20-8, B001, Brightly galvanized
    Code: SB00003936
    Art. Nr.: 3490129
    Price:
    From €135.34
    In Stock: 3 pc.
  7. AS-2752SLQFPZ, 55/72-20-8, B003, brightly galvanized
    AS-2752SLQFPZ, 55/72-20-8, B003, brightly galvanized
    Code: SB00003937
    Art. Nr.: 3490130
    Price:
    From Special Price €138.84 was €154.26
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 3 pc.
  8. Multi point lock AS-2750SLQF55/92-16-8, brightly galvanized, B001
    Multi point lock AS-2750SLQF55/92-16-8, brightly galvanized, B001
    Code: SB00003949
    Art. Nr.: 3491440
    Price:
    From €135.34
    In Stock: 14 pc.
  9. AS-2750-QF55/92-20-8 mm, brightly galvanized, B001
    AS-2750-QF55/92-20-8 mm, brightly galvanized, B001
    Code: SB00003955
    Art. Nr.: 3492708
    Price:
    From €113.39
    In Stock: 54 pc.
  10. AS-2750-QF55/92-20-8 mm, brightly galvanized, B003
    AS-2750-QF55/92-20-8 mm, brightly galvanized, B003
    Code: SB00003972
    Art. Nr.: 3494965
    Price:
    From €129.24
    In Stock: 17 pc.
  11. Multi point lock AS-2750SLQF 55/92-20-8, brightly galvanized, B298
    Multi point lock AS-2750SLQF 55/92-20-8, brightly galvanized, B298
    Code: SB00003973
    Art. Nr.: 3494967
    Price:
    From €113.39
    In Stock: 5 pc.
  12. Multi-point lock AS-2750-QF65/92-20-8, brightly galvanized, B001
    Multi-point lock AS-2750-QF65/92-20-8, brightly galvanized, B001
    Code: SB00004012
    Art. Nr.: 3502904
    Price:
    From €135.34
    In Stock: 6 pc.
  13. Multi-point lock AS-2750-QF65/92-20-8 mm, light galvanized, B003
    Multi-point lock AS-2750-QF65/92-20-8 mm, light galvanized, B003
    Code: SB00004013
    Art. Nr.: 3502905
    Price:
    From €154.26
    In Stock: 5 pc.
  14. Multi point lock AS-2750SLRQF, 65/92-20-8, brightly galvanized, B298
    Multi point lock AS-2750SLRQF, 65/92-20-8, brightly galvanized, B298
    Code: SB00004039
    Art. Nr.: 3512278
    Price:
    From €135.34
    In Stock: 0 pc.
  15. Daudzpunktu slēdzene AS-2750-QFPZ 45/92-16-8, gaiši cinkota, B003
    Daudzpunktu slēdzene AS-2750-QFPZ 45/92-16-8, gaiši cinkota, B003
    Code: SB00003930
    Art. Nr.: 3489074
    Price:
    From €154.26
    In Stock: 11 pc.
  16. Daudzpunktu slēdzene AS-2750-QFPZ 55/92-16-8, gaiši cinkota, B003
    Daudzpunktu slēdzene AS-2750-QFPZ 55/92-16-8, gaiši cinkota, B003
    Code: SB00019973
    Art. Nr.: 3511293
    Price:
    From €154.26
    In Stock: 1 pc.
bolt projection 20
centre distance PZ 72 / 92 mm
class as per EN 12209 (DIN 18251) class 3 according to DIN 18251-3 / class 6 according to EN 12400
compatibility standard German (DIN)
door direction universal use for DIN right and left hand doors
face plate width 16 / 20 / 24 mm
face plate finish gaiši cinkota
face plate length 2170-2400 mm
face plate shape square or U-profile
fire safety option for fire safety doors available on request
handle square spindle size 8 mm
hook bolt projection 21 mm
installation type mortise
latch key-retractable (central lock)
leaf material for wooden, metal and framed doors
load capacity high
lock bolt double turn (central lock)
lock case galvanised closed
lock cutter type B001 / B003 / B298
lock operation mechanical
lock operation type with key
lock type multi-point lock for hinged doors
locking elements polished nickel-coated
locking function PZ - with profile cylinder hole
Manufacturer KFV
number of locking points 3
possible spindle depth 35/40/45/55/65 mm
purpose for exterior doors
sound insulation yes
