Door handle FSB 1004 1735 NT
Product code
MB00008642
All prices include VAT
From
€252.53
From
€252.53
Only %1 left
Stainless steel door handle with round roses FSB 1004 1735
Manufacturer - FSB (Germany)
Design: David Chipperfield
For the talented architect David Chipperfield the idea to create his own line of handles stems from his ambition to fit buildings with handles that represent his architectural philosophy. Chipperfield's handle design displays influences from the logical clarity of both the modernist architecture and philosopher Ludwig Wittgenstein. Model 1004 is based on a formal concept that complies with all functional requirements, and thus illustrates the architect's philosophy in both private and public spaces.
PVD finishes in various tones available on request
Manufacturer - FSB (Germany)
Design: David Chipperfield
For the talented architect David Chipperfield the idea to create his own line of handles stems from his ambition to fit buildings with handles that represent his architectural philosophy. Chipperfield's handle design displays influences from the logical clarity of both the modernist architecture and philosopher Ludwig Wittgenstein. Model 1004 is based on a formal concept that complies with all functional requirements, and thus illustrates the architect's philosophy in both private and public spaces.
-
- made for interior doors, adaptable for exterior doors
- innovative, sturdy FSB ASL® construction with concealed handle guide ring
- corresponds to grade 4 in use and durability according to EN 1906, suitable for heavy-duty doors and recommended for public buildings
- construction durability tested on 1'000'000 cycles of use
- integrated spring for lock load release with active angle of 45°
- concealed handle guide ring
- stainless steel reinforced sub-construction with stable fixed pivot axis
- handle length: 130 mm
- spindle: 8 mm
- rose size: 55 x 55 mm
- rose thickness: 7,2 mm
- distance between fixed supporting lugs: 38 mm
- standard set suitable for door thickness 39-58 mm
- possible to order sets for door thickness 29-98 mm
- compatible also with rectangular roses, short and long backplates
- suitable door knob can be added to all rose and backplate sets
- keyhole options - PZ, BB, WC, BAC
- backplate centre distance: PZ, BB - 72 mm, WC - 78 mm
- material: stainless steel matt satin
PVD finishes in various tones available on request
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

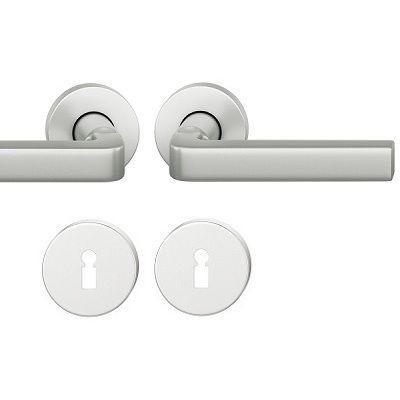

Handle set on round roses BB, stainless steel mattCode: SB00000846Art. Nr.: 0 12 1004 01302 6204Price:From €283.02In Stock: 0 set
-

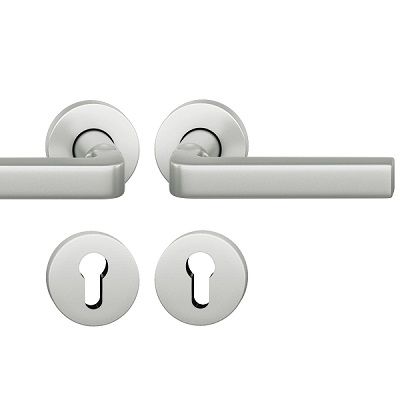

Handle set on round roses PZ, stainless steel mattCode: SB00000849Art. Nr.: 0 12 1004 01310 6204Price:From €283.02In Stock: 0 set
-

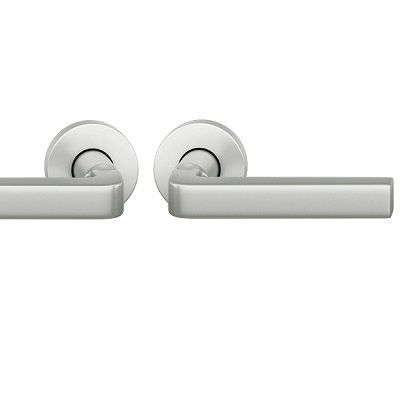

Handle set on round roses BAC, stainless steel mattCode: SB00000851Art. Nr.: 0 12 1004 01320 6204Price:From €252.53In Stock: 0 set
backplate/rose shape | round |
---|---|
backplate/rose size | Ø55 mm |
backplate/rose thickness | 7 mm |
centring lug diameter | 9 mm |
class as per EN 1906 | class 4 |
compatibility standard | German (DIN) |
construction | lever handles on both sides |
designer | David Chipperfield |
door direction | universal use for DIN right and left hand doors |
door thickness | 39-58 mm (adaptable 29-38 mm and 59-98 mm) |
fastening centre distance | 38 mm |
fastening type | concealed screws |
fastening type | concealed screws |
fastening type | concealed screw fitting |
fire safety | related fireproof model available |
handle construction | ASL construction with stable fixed pivot axis |
handle length | 132 mm |
handle square spindle size | 8 mm |
handle spring | integrated holding spring to cushion the push and pull forces |
installation type | screw on |
leaf material | for wooden and metal doors |
load capacity | high |
locking function | PZ / BB / WC / BAC |
Manufacturer | FSB |
material | stainless steel |
material: sub-construction | reinforced with stainless steel |
material properties (for specific finishes see tech. data) | PVD coating - suitable for use in aggressive environments |
purpose | for interior doors / for exterior doors |
set | with split roses |
suitable for emergency exits | related model available, complies with EN 179 requirements |
