Door handle FSB 1058 1735 ALU

Product code
All prices include VAT
From €62.05
From €62.05
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Aluminium door handle with round roses FSB 1058 1735
Manufacturer - FSB (Germany)
Design: Johannes Potente

The FSB 1058 was Johannes Potente's favourite model. It is not known why, only two years after designing his supreme creation, the FSB 1051, he followed it up with this redesign. The FSB 1058 is one of four models from FSB designer Johannes Potente that have been added to New York's Museum of Modern Art's permanent collection.

    • made for interior doors, adaptable for exterior doors
    • innovative, sturdy FSB ASL® construction with concealed handle guide ring
    • corresponds to grade 4 in use and durability according to EN 1906, suitable for heavy-duty doors and recommended for public buildings
    • construction durability tested on 1'000'000 cycles of use
    • integrated spring for lock load release with active angle of 45°
    • concealed handle guide ring
    • stainless steel reinforced sub-construction with stable fixed pivot axis
    • handle length: 129 mm
    • spindle: 8 mm
    • standard set suitable for door thickness 39-58 mm
    • possible to order sets for door thickness 29-98 mm
    • may be used with short or long, rectangular backplates
    • matching knob can be added to all rose and backplate sets
    • keyhole options: PZ, BB, WC, BAC
    • backplate centre distance: PZ, BB - 72 mm, WC - 78 mm
    • material aluminium anodised:
      • F1-natural aluminium tone
      • F2-new silver tone
      • S4-bronze tone, textured matt
      • S5-medium dark bronze tone
      • S7-dark bronze tone
      • S8-black
      • powder-coated in black (RAL9005), white (RAL9016), anthracite (RAL7016) or grey-brown (RAL8019) tone.

If you wish to order a colour that is not available in our online shop, please select the relevant item and quantity to order, indicate the colour in a comment and complete your order. We will send you the information regarding the estimated delivery time and price.
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

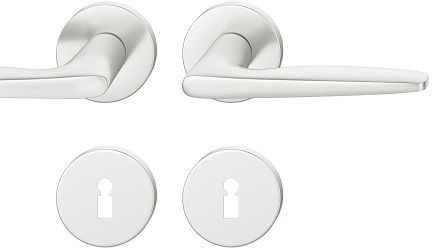

  1. Handle set on round roses BB, aluminium F1
    Handle set on round roses BB, aluminium F1
    Code: SB00001043
    Art. Nr.: 2 12 1058 01302 F1
    From €78.70
    In Stock: 0 set

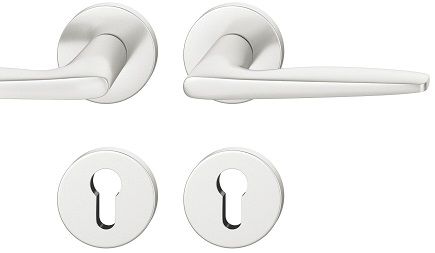

  2.  Handle set on round roses PZ, aluminium F1
    Handle set on round roses PZ, aluminium F1
    Code: SB00001045
    Art. Nr.: 2 12 1058 01310 F1
    From €78.70
    In Stock: 0 set

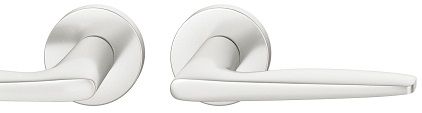

  3. Handle set on round roses BAC, aluminium F1
    Handle set on round roses BAC, aluminium F1
    Code: SB00001048
    Art. Nr.: 2 12 1058 01320 F1
    From €62.05
    In Stock: 0 set

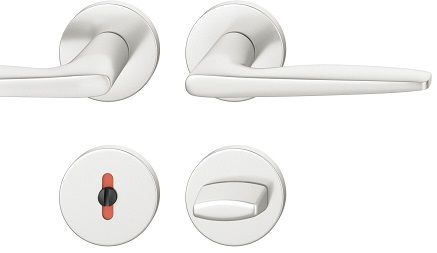

  4. Handle set on round roses WC, aluminium F1
    Handle set on round roses WC, aluminium F1
    Code: SB00001051
    Art. Nr.: 2 12 1058 01954 F1
    From €105.97
    In Stock: 0 set
backplate/rose shape round
backplate/rose size Ø55 mm
backplate/rose thickness 7 mm
centring lug diameter 9 mm
class as per EN 1906 class 4
compatibility standard German (DIN)
construction lever handles on both sides
designer Johannes Potente
door direction universal use for DIN right and left hand doors
door thickness 39-58 mm (adaptable 29-38 mm and 59-98 mm)
fastening centre distance 38 mm
fastening type concealed screws
fastening type concealed screw fitting
fastening type concealed screws
fire safety not suitable for fire safety doors
handle construction ASL construction with stable fixed pivot axis
handle length 129 mm
handle square spindle size 8 mm
handle spring integrated holding spring to cushion the push and pull forces
installation type screw on
leaf material for wooden and metal doors
load capacity high
locking function PZ / BB / WC / BAC
Manufacturer FSB
material aluminium anodised blasted
material: sub-construction reinforced with stainless steel
purpose for interior doors / for exterior doors
set with split roses
