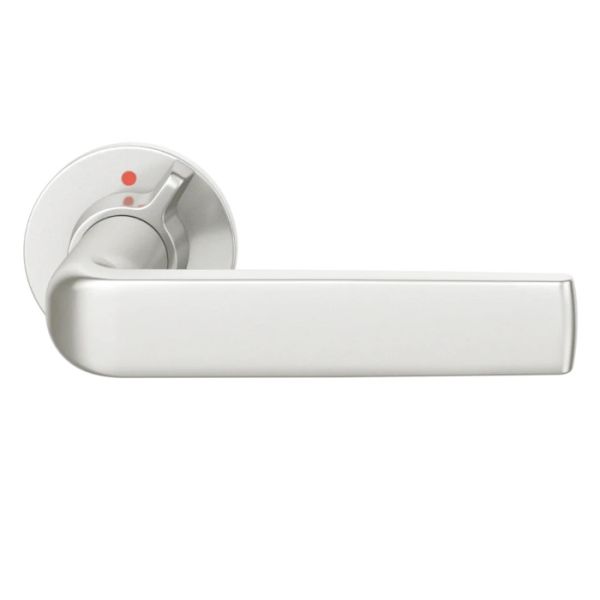

Door handle with flush-mounted roses and built-in turn lock FSB AFL® 16 1267 1735 ALU

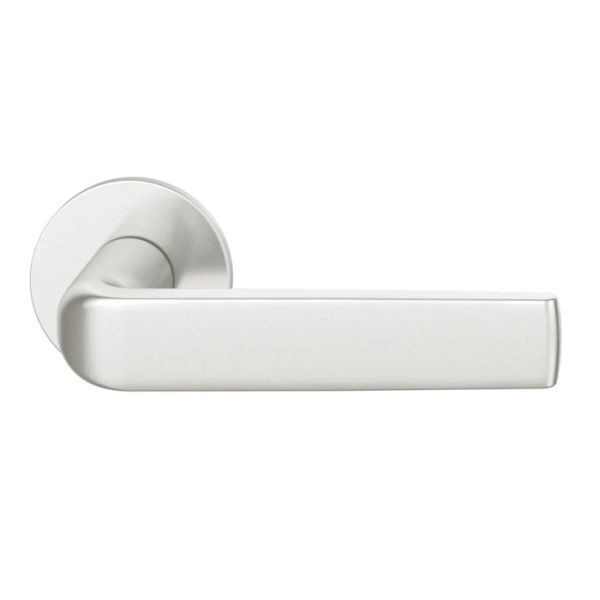

Aluminium door handle with flush-mounted/screw-on roses FSB AFL® 16 1267 1735 ALU

Manufacturer - FSB (Germany)

FSB pays tribute to the revered Ludwig Mies van der Rohe with this design. The FSB 1267 is more than just a replica of an original Mies van der Rohe lever handle, however. While retaining the formal thrust of its forebears, our interpretation also conforms to present-day standards and the requirements of modern architecture.

• door handle set with round roses
• innovative, adaptive FSB AFL® construction for 2 installation options: screw-on or flush-mounted roses
• fast and precise installation of click-on cover roses with concealed screws
• stainless steel sub-construction
• option: lockable rose with built-in, concealed and intuitive turn lock with colour indicator on the inside and emergency release option on the outside; suitable for use as an alternative to standard WC lock rose
• set may be combined with standard lock
• WC rose compatible only with German standard DIN WC locks
• construction durability tested on 1'000'000 cycles of use, corresponds to grade 4 in use and durability according to EN 1906, suitable for heavy-duty interior doors and recommended for public buildings
• WC turn lock corresponds to grade 3 in use and durability according to EN 1906
• connecting spindle suitable for door thickness of 39-109 mm
• standard PZ / BB / BAC sets are suitable for door thickness of 39-48 mm; set with built-in turn lock (WC function) is suitable for door thickness of 39-43 mm
• integrated spring for lock load release with active angle of 45°
• suitable for both left and right hand doors
• handle length: 135 mm
• spindle: 8 mm cover
• rose diameter: 55 mm
• cover rose thickness: 3.5 mm
• milling for sub-construction: Ø29 mm, depth 4.5 mm
• fixed supporting lugs: Ø9 mm, distance between centres: 38 mm

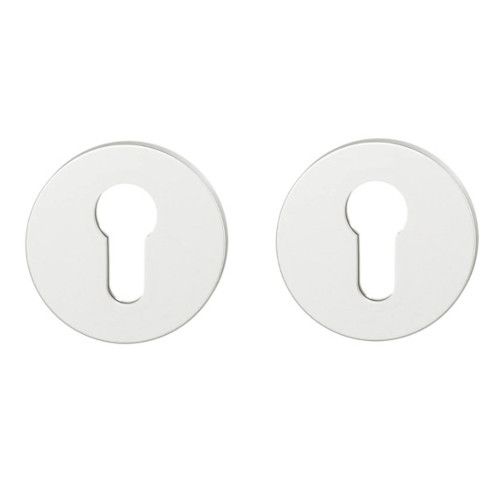

• key hole options: PZ, BB, BAC; WC turn built into rose
• material: anodised aluminium
• available finishes:
  • F1 natural aluminium tone
  • S5 medium dark bronze tone blasted
  • S7 dark bronze tone blasted
  • S8 black blasted
  • powder coated in black RAL9005
  • powder coated in white RAL9016

If you wish to order a colour that is not available in our online shop, please select the relevant item and quantity to order, indicate the colour in a comment and complete your order. We will send you the information regarding the estimated delivery time and price.
