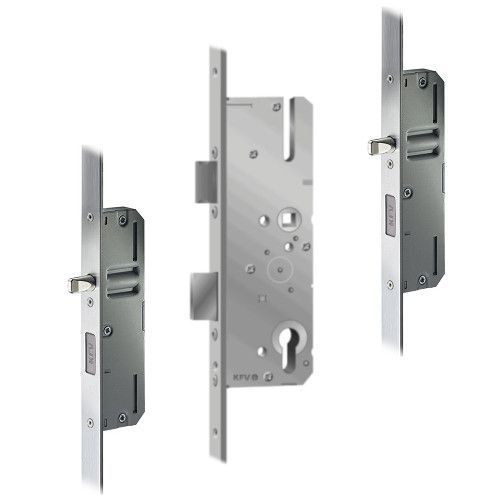

Multi-point lock with round bolts KFV AS4340
Manufacturer - KFV

    • multi-point lock with 3 locking points - main lock bolt and auxiliary lock round bolts
    • all bolts and latches are handle-operated
    • suitable for both left and right hand doors
    • anti-intruder protection with multiple bolts
    • back-pressure and anti-sawing protection
    • tight seal provides sound and heat insulation
    • compatible with standard door hardware
    • locked with handle
    • long light galvanised face plate with main lock and 2 auxiliary locks
    • main lock compatible with cylinder, latch is not key-retractable, bolt projection: 15 mm
    • main lock with lined holes for screws up to M6 - for fixing backplate into its place
    • 2 auxiliary locks, located on both sides of the main lock, fitted with Ø11mm round steel bolts, bolt projection: 20 mm
    • all locking components are bright nickel-plated, all lock cases - galvanised and closed
    • centre distance: 72 / 92 mm
    • spindle depth: 25 - 65 mm
    • spindle square: 8 mm
    • compatible with standard backplates and cylinders according to DIN 18254
    • standardised routing template
    • available finishes: light galvanised (face plate)
Locking from outside / inside
  • lifting the handle up (1) locks the round bolts of the auxiliary locks
  • turning the key 360° locks the deadbolt of the main lock and the handle is locked
Unlocking from outside / inside
  • turning the key 360° unlocks the mechanism
  • pressing the handle down (3) opens the door

Set
Separate strike plates:
central 19-267 + upper/lower 2300-08-20-1R
central 15-530E + upper/lower 3615-530Q/31
central 19-504 V +  upper/lower 2319-504V
central 19-503 V + upper/lower 3619-503V-31
central 19-512V + upper/lower 2319-512V
central SLK 881-083 A /DZM 402-00031 + upper/lower SLK 2600-267-2W/31
central 8050-752ERH
 upper/lower 2330-03-20R or 2500-03-20R

Joint strike plates
joint BD25-2-230ERQH/31 B001
joint locking rail BS60-230ERQH/31

Milling sizes
Cutter type  A
Total length
 (mm)		  B
Distance from handle centre to lower part centre (mm)		  C
Distance from handle centre to upper part centre (mm)		  G
Distance from handle centre to bottom (mm)		  I
Max face plate shortening from top (mm)		  K
Max face plate shortening from bottom (mm)
 B001  2170  760  730  1020  290  130
  B003*  2400  760  980  1020  270  130
 B298  2170  760  605  1020  415  130
 *except for face plate P 6/22








Lietošanas instrukcija
Multi-point lock user manual (LV) Multi-point lock user manual (LV)


    •
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. AS-4340ANXF 35/92-16, B001, brightly galvanized
    AS-4340ANXF 35/92-16, B001, brightly galvanized
    Code: SB00003940
    Art. Nr.: 3490364
    Price:
    From €110.63
    In Stock: 6 pc.
  2. AS-4340ANXF PZ 45/92-20, B001, brightly galvanized
    AS-4340ANXF PZ 45/92-20, B001, brightly galvanized
    Code: SB00003960
    Art. Nr.: 3494877
    Price:
    From €75.12
    In Stock: 29 pc.
  3. AS-4340ANXF PZ 55/92-20, B001, brightly galvanized
    AS-4340ANXF PZ 55/92-20, B001, brightly galvanized
    Code: SB00003975
    Art. Nr.: 3494990
    Price:
    From €70.16
    In Stock: 42 pc.
  4. AS-4340ANXF PZ 45/92-16, B001, brightly galvanized
    AS-4340ANXF PZ 45/92-16, B001, brightly galvanized
    Code: SB00003995
    Art. Nr.: 3500094
    Price:
    From €75.12
    In Stock: 5 pc.
  5. AS-4340ANXF PZ 55/92-16, B001, brightly galvanized
    AS-4340ANXF PZ 55/92-16, B001, brightly galvanized
    Code: SB00003996
    Art. Nr.: 3500095
    Price:
    From €110.63
    In Stock: 5 pc.
  6. AS-4340ANXF PZ 45/92-16, B003, brightly galvanized
    AS-4340ANXF PZ 45/92-16, B003, brightly galvanized
    Code: SB00003997
    Art. Nr.: 3500097
    Price:
    From €133.69
    In Stock: 2 pc.
  7. AS-4340ANXF PZ 55/92-20, B003, brightly galvanized
    AS-4340ANXF PZ 55/92-20, B003, brightly galvanized
    Code: SB00004008
    Art. Nr.: 3502347
    Price:
    From €133.69
    In Stock: 2 pc.
  8. AS-4340ANXF PZ 55/92-20, B298, brightly galvanized
    AS-4340ANXF PZ 55/92-20, B298, brightly galvanized
    Code: SB00004009
    Art. Nr.: 3502348
    Price:
    From €110.63
    In Stock: 6 pc.
  9. AS-4340ANXF PZ 55/72-20, B001, brightly galvanized
    AS-4340ANXF PZ 55/72-20, B001, brightly galvanized
    Code: SB00004010
    Art. Nr.: 3502350
    Price:
    From €110.63
    In Stock: 5 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. 8035-45-F-20/31 Face plate extension for multi-locks AS, 20x3x400 mm, light galvanized
    8035-45-F-20/31 Face plate extension for multi-locks AS, 20x3x400 mm, light galvanized
    Code: SB00003300
    Art. Nr.: 3119274
    Price:
    From €17.06
    In Stock: 9 pc.
bolt projection 15 mm
centre distance PZ 72 / 92 mm
class as per EN 12209 (DIN 18251) not certified
compatibility standard German (DIN)
door direction universal use for DIN right and left hand doors
face plate width 16 / 20 / 24 mm
face plate finish gaiši cinkota
face plate length 2170-2400 mm
face plate shape square or U-profile
fire safety not suitable for fire safety doors
handle square spindle size 8 mm
installation type mortise
latch not key-retractable
latch type bolts (round bolts)
leaf material for wooden, metal and framed doors
load capacity high
lock bolt single turn (central lock)
lock case galvanised closed
lock cutter type B001 / B003 / B298
lock operation mechanical
lock operation type with handle
lock type multi-point lock for hinged doors
locking elements polished nickel-coated
locking function PZ - with profile cylinder hole
Manufacturer KFV
number of locking points 3
possible spindle depth 25 - 65 mm
purpose for exterior doors
round bolt diameter 11 mm
round bolt projection 20 mm
sound insulation yes
