Concealed hinge INVISACTA IN230 M

Product code
IN230-M
OTLAV View catalogue of manufacturer
main product photo


From €16.99 was €18.88

Please add to cart hinge cover plates in the required number.
One hinge requires 4 caps.

Reset selection
INVISACTA 3D concealed hinge 23x120, black   €16.99
Code: SB00018783
Art. Nr.: IN2301209N02
In Stock. Available: 573 gab.

Price as configured €16.99

kit
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

Concealed hinge INVISACTA IN230 3D

Manufacturer - OTLAV (Italy)

  • may be leaf or frame-mounted
  • suitable for non-rebated wooden doors
  • complies with EN 1634-2 fire safety requirements 30'
  • 3-dimensional adjustability: side (+/- 1 mm), depth (+/- 1 mm) and height (+/- 2 mm)
  • adjusted with 3mm hexagonal key
  • doors can be adjusted post-installation, e.g. sagging doors
  • high level of durability, ensured by the 7 joint hinges with durable HT plastic bearings
  • suitable for both left and right hand doors
  • maximum load capacity: 60 kg (2 hinges per leaf, test door size: 90x210 cm)
  • size: 120 x 23 mm
  • depth of the milling in the frame: 21 mm
  • opening angle: 180°
  • may be combined with door closers
  • compatible with aluminium caps (4 pc. needed for 1 hinge)
  • material metal alloy ZAMAK:
    • silver tone
    • white
    • black
    • galvanised
    • nickel-plated matt
    • gold-plated polished
    • bronze tone

Montāžas instrukcija un regulēšana
Assembly and adjustment instructions (EN/DE/FR/IT) Assembly and adjustment instructions (EN/DE/FR/IT)

Dokumentācija
Declaration of performance for hinges IN230 (EN) Declaration of performance for hinges IN230 (EN)
Certificate of Constancy of Performance for INVISACTA Hinges (EN) Certificate of Constancy of Performance for INVISACTA Hinges (EN)

Tehniskā papildinformācija
Hinge assembly parameters and recommendations for choosing the number of hinges Hinge assembly parameters and recommendations for choosing the number of hinges

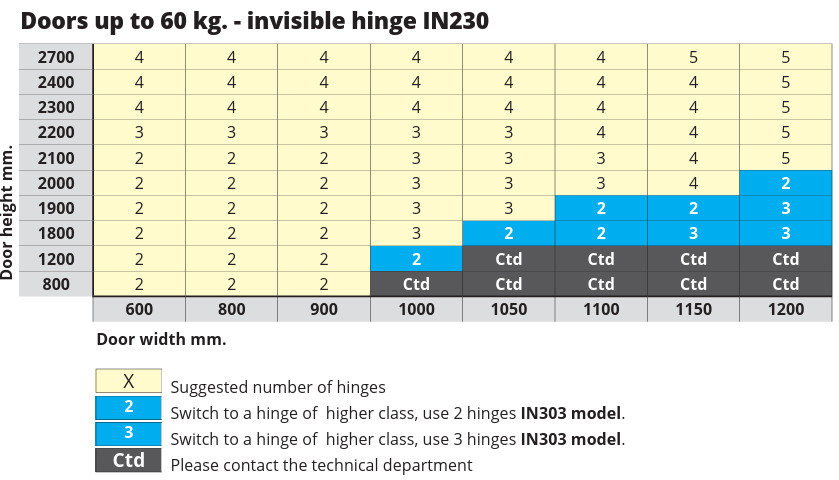

INVISACTA IN230 concealed hinge load chart INVISACTA IN230 concealed hinge load chart
