Composite security set for framed exterior doors TILBURG 2000 ALU
Manufacturer - DIECKMANN (Germany)
-
- fixed handle on interior backplate
- stable backplate connection with concealed M6 screw
- ZA version with cylinder guard for securing cylinder
- interior handle with integrated spring
- suitable for both left and right hand doors
- exterior backplate - solid metal
- high-pressure die-cast interior backplate with handle KRONOS
- metal supporting lugs in rose and interior backplate Ø10

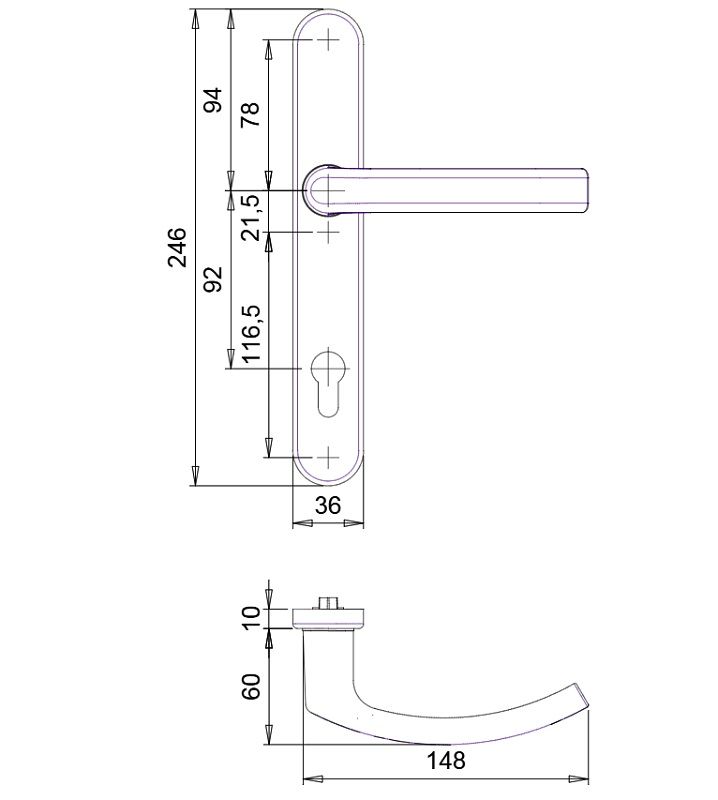

- backplate length: 246 mm, width: 36 mm
- backplate thickness:10 mm
- centre distance: 92 mm
- spindle: 8 mm
- handle length (from spindle centre): 148 mm

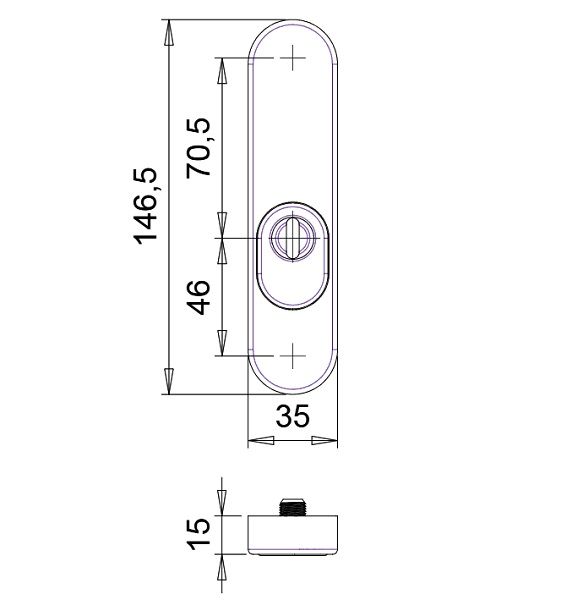

- exterior backplate size: 146,5 x 30 mm
- exterior backplate thickness:
- with cylinder guard: aluminium + stainless steel = 15 mm
- without cylinder guard: aluminium = 12 mm / stainless steel = 10 mm
- standard set suitable for door thickness: 73-77 mm
- set with cylinder guard suitable for cylinder projection 12-17 mm
- ZA set with cylinder guard corresponds with DIN 18257 security class ES1 (EN 1906 grade 3)
- material aluminium anodised: natural aluminium tone (F1)


- Products
- Price
- In Stock
- Quantity
-
2007/7258 Composite rose/backplate security set ES1 with cylinder guard, aluminium natural tone F1Code: SB00011264Art. Nr.: 2007/7258/01Price:From €83.76In Stock: 1 pc.
backplate/rose shape | round |
---|---|
backplate/rose size | uzlika 36 x 246 mm; rozete 30 x 146.5 mm |
cylinder guard | changeable |
cylinder guard | yes |
centre distance PZ | 92 mm |
compatibility standard | German (DIN) |
construction | lever handle / rose (can be combined with a pull handle) |
construction | safety rose / backplate |
distance from rose surface to outer edge of handle | 60 mm |
door direction | universal use for DIN right and left hand doors |
door thickness | 73-77 mm |
fastening elements | included in set |
fastening type | connecting screws, accessible from inside of door |
fastening type | connected screws. accessible from inside of door |
fastening type | connecting bolts, accessible from inside of door |
fire safety | not suitable for fire safety doors |
handle length | 148 mm |
handle square spindle size | 8 mm |
leaf material | for wooden and framed doors |
Manufacturer | DIECKMANN |
material | aluminium anodised |
outer backplate thickness | 15 mm |
purpose | for exterior doors and doors with increased intruder resistance requirements |
security class | not classified |
