Composite security set for framed exterior doors TILBURG 2000 NT

Product code
MB00008939
All prices include VAT
From €185.32
From €185.32
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Composite stainless steel security set with cylinder guard for framed exterior doors TILBURG 2000
Manufacturer - DIECKMANN (Vācija)

    • fixed handle on interior backplate
    • stable backplate connection with concealed M6 screw
    • ZA version with cylinder guard for securing cylinder
    • interior handle with integrated spring
    • suitable for both left and right hand doors
    • exterior backplate - solid metal
    • high-pressure die-cast interior backplate with handle KRONOS
    • metal supporting lugs in rose and interior backplate Ø10
    • backplate length: 246 mm, width: 36 mm
    • backplate thickness:10 mm
    • centre distance: 92 mm
    • spindle: 8 mm
    • handle length (from spindle centre): 148 mm
    • exterior backplate size: 146,5 x 30 mm
    • exterior backplate thickness:
      • with cylinder guard: aluminium + stainless steel = 15 mm
      • without cylinder guard: aluminium = 12 mm / stainless steel = 10 mm
    • standard set suitable for door thickness: 73-77 mm
    • set with cylinder guard suitable for cylinder projection 12-17 mm
    • ZA set with cylinder guard corresponds with DIN 18257 security class ES1 (EN 1906 grade 3)
    • material: stainless steel





Dokumentācija

    •
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. 2007/7258 composite rose/backplate security set ES1 with cylinder guard, stainless steel

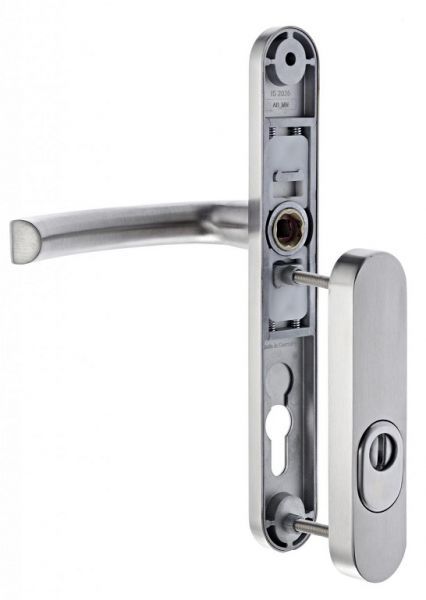

    2007/7258 composite rose/backplate security set ES1 with cylinder guard, stainless steel
    Code: SB00011263
    Art. Nr.: 2007/7258/00
    Price:
    From €185.32
    In Stock: 0 pc.
Manufacturer DIECKMANN
material stainless steel
purpose for exterior doors and doors with increased intruder resistance requirements
leaf material for wooden and framed doors
construction lever handle / rose (can be combined with a pull handle)
security class not classified
cylinder guard yes
fire safety not suitable for fire safety doors
door thickness 73-77 mm
compatibility standard German (DIN)
door direction universal use for DIN right and left hand doors
centre distance PZ 92 mm
backplate/rose size uzlika 36 x 246 mm; rozete 30 x 146.5 mm
backplate/rose shape round
outer backplate thickness 15 mm
handle length 148 mm
handle square spindle size 8 mm
distance from rose surface to outer edge of handle 60 mm
fastening type connecting screws, accessible from inside of door
fastening elements included in set
