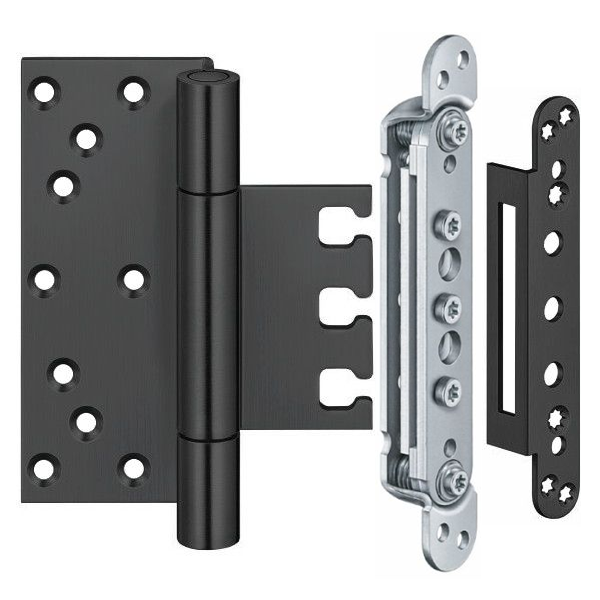

Door hinge set with mounting bracket and cover plate VX 7729/160-4 HA MSTS, VX 7531 3D, VX 7561 KK

Door hinge set with mounting bracket and cover plate VX 7729/160-4 HA MSTS, VX 7531 3D, VX 7561 KK

Manufacturer - SIMONSWERK (Germany)

• suitable for non-rebated wooden/aluminium doors opening outwards
• with welded hinge knuckle
• integrated retainer protects hinges and prevents intruders from prising the door open
• compatible with three-dimensionally adjustable receiver VARIANT VX 7531 3D
• internal torsion-proof pin
• concealed, maintenance-free axial-radial slide bearings
• suitable for both left and right hand doors
• max load capacity: 160 kg
• load capacity refers to two hinges per leaf, taking into account also load capacities of the respective combined receiver
• knuckle length: 160 mm
• knuckle Ø: 22.5 mm
• material thickness: 4 mm
• screws: 6 x 50 mm
• material: stainless steel
• finish: black RAL9005

Receiver VX 7531 3D

• receiver for rebated or non-rebated extra heavy doors
• suitable for wooden frames
• compatible with heavy-duty hinges VARIANT VX
• suitable for both left and right hand doors
• continuous 3-dimensional adjustment, 3 mm in all directions
• milling Ø: 24 mm
• size: 180 x 24 mm
• maximum load: 400.0 kg (this load value applies to 2 hinges per leaf, taking into account the load value of the accompanying hinge)
• to be used with hinge VX 7561 KK
• material: galvanized steel

Montāžas instrukcijas

VARIANT VX 7729 hinge assembly instructions

VARIANT VX 753.. receiving structure assembly and adjustment instructions

Tehniskā papildinformācija

SIMONSWERK load values for single axis hinge, 160kg (EN)
