Adjustable door hinges COLUMBUS

Product code
MB00001665
All prices include VAT
From €19.17
From €19.17
In Stock
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Adjustable door hinges COLUMBUS
Manufacturer - SIMONSWERK (Germany)

    • 3-dimensional adjustability: side (+/- 2 mm), depth (+/- 4 mm) and height (+/- 3 mm)
    • adjustment by turning socket screws
    • maintenance-free
    • (MSTS) security device to outward opening doors
    • max load: 70 kg
    • knuckle diameter: 13 mm
    • overall length: 101.6 mm
    • overall width: 88 mm
    • material thickness: 2.5 mm
    • deeplu receptive: 14 mm
    • suitable for both left and right hand doors
    • material: painted steel
      • grey RAL9006
      • white RAL9016
      • black RAL9005

Montāžas instrukcija un regulēšana
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. COLUMBUS 3D hinge with protection against prying, alum. black  RAL9005
    COLUMBUS 3D hinge with protection against prying, alum. black RAL9005
    Code: SB00020976
    Art. Nr.: 5 311113 0 07308
    Price:
    From €23.12
    In Stock: 2 pc.

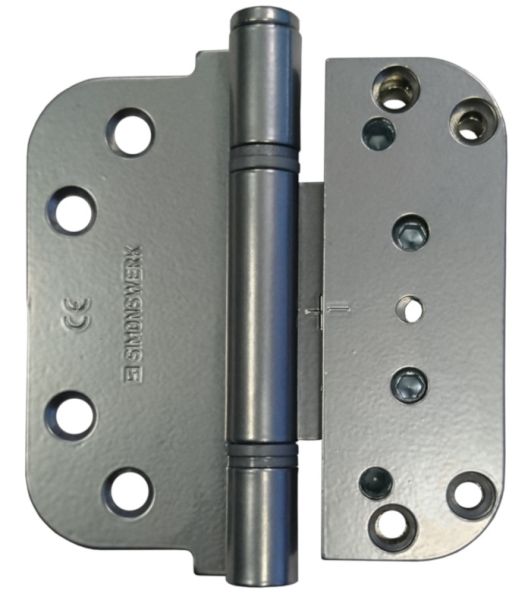

  2. COLUMBUS 7729 3D hinge with protection against prying, alum. F1
    COLUMBUS 7729 3D hinge with protection against prying, alum. F1
    Code: SB00021088
    Art. Nr.: 5 311113 0 12408
    Price:
    From €19.17
    In Stock: 200 pc.

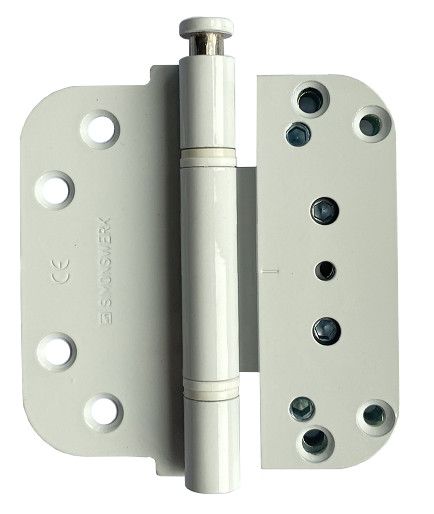

  3. COLUMBUS 3D hinge with protection against prying, alum. white RAL9016
    COLUMBUS 3D hinge with protection against prying, alum. white RAL9016
    Code: SB00021121
    Art. Nr.: 5 311113 0 07008
    Price:
    From €20.92
    In Stock: 0 pc.
width 93.5 mm
adjustment type with internal adjusting screws
adjustment adjustable
anti-corrosion resistance certified according to EN 1935 - depending on finish
anti-intruder protection yes, integrated safety pin
base assortment Yes
class as per EN 1935 class 3
door construction for non-rebated doors
door direction universal use for DIN right and left hand doors
fastening elements must be ordered separately
fire safety not suitable for fire and smoke safety doors
groove for leaf seal no
height 101.5 mm
hinge shape rounded
hinge type exterior door hinge
knuckle diameter 13 mm
leaf maximum weight 70 kg
leaf material wood
load capacity middle
maintenance not required (self-lubricating bearings)
Manufacturer SIMONSWERK
material thickness 2.5 mm
material coloured steel / stainless steel
spindle diameter 8.1 mm
suitable for aluminium frames suitable
suitable for industrial frames suitable
suitable for steel frames suitable
suitable for timber frames suitable
thickness uztverošās daļas kopējais biezums: 14.0 mm
