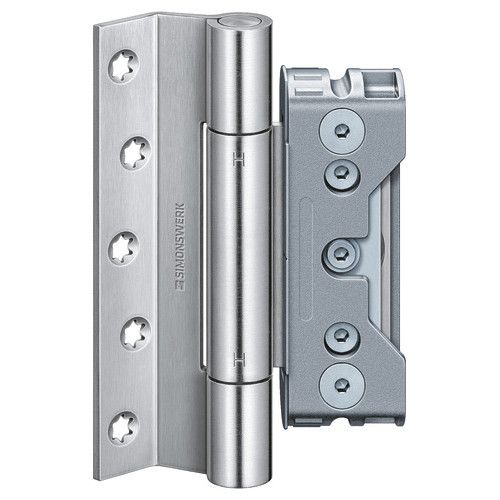

Set of adjustable hinges for non-rebated doors BAKA Protect 4048 3D MSTS K
Product code
MB00008866
All prices include VAT
From
€102.75
In Stock
Only %1 left
Set of adjustable hinges for non-rebated doors BAKA Protect 4048 3D MSTS K
Manufacturer - SIMONSWERK (Germany)
Classification code according to DIN EN 1935
2 7 3 1 1 *1 0 10
*1 depending on surface finish
Manufacturer - SIMONSWERK (Germany)
-
- 3-dimensional adjustability: side (+/- 3 mm), height (+/- 3 mm), depth (+/- 3 mm)
- threaded frame pin
- concealed receiver in door leaf
- efficient and economic fitting, using the well-developed templates
- high-quality maintenance-free bearings
- knuckle length: 140 mm, diameter: 20 mm
- milling diameter: 20 mm
- available in sets of 3 hinges: 1 height-adjustable hinge, 2 depth-adjustable hinges
- security pin (MSTS) for doors opening outwards
- max load capacity:
-
-
- 120 kg with 2 hinges (leaf 1000 x 2000 mm; distance between 1st and 2nd hinge reference line: 1435 mm)
- if using 3 hinges (standard set) or a 4th hinge, the total load capacity does not increase but the load-bearing endurance improves for wide doors and doors fitted with door closers, automated systems and stoppers
- if necessary, a 4th hinge can be ordered separately
- material:
-
-
-
- steel, light galvanised
- stainless steel
-
Classification code according to DIN EN 1935
2 7 3 1 1 *1 0 10
*1 depending on surface finish
Installation and adjustment
Additional information
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Exterior door hinges BAKA protect 4048 3D MSTS K with spindle fixator for outward opening doors, brightly galvanizedCode: SB00008766Art. Nr.: 500001586Price:From €102.75In Stock: 6 kit -
Eņģu kompl.BAKA protect 4048 3D MSTS K, ar integrētu ass fiksatoru uz āru veramām durvīm, melna RAL9Code: SB00019394Art. Nr.: 590000007Price:From €144.81In Stock: 3 kit
Additional products
- Products
- Price
- In Stock
- Quantity
-
BAKA protect 4048 3D K - 4. eņģe, melna RAL9005Code: SB00009017Art. Nr.: 4048 9005/4.ePrice:From €48.27In Stock: 2 pc.
-
BAKA protect 4048 3D K - 4. eņģe, gaiši cinkotaCode: SB00009018Art. Nr.: 4048 GC 4.engePrice:From €34.26In Stock: 2 pc.
| Manufacturer | SIMONSWERK |
|---|---|
| hinge type | exterior door hinge |
| hinge shape | rectangular |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | class 2 |
| fire safety | suitable for fire and smoke safety doors |
| leaf material | wood |
| load capacity | high |
| leaf maximum weight | 180 kg |
| suitable for aluminium frames | not suitable |
| suitable for steel frames | not suitable |
| suitable for industrial frames | suitable using additional mounting parts |
| suitable for timber frames | suitable |
| anti-corrosion resistance | certified according to EN 1935 - depending on finish |
| anti-corrosion resistance in accordance with EN 1935 | depends on finish |
| sound insulation | no |
| adjustment | adjustable |
| adjustment type | with eccentrics |
| groove for leaf seal | no |
| anti-intruder protection | yes, integrated safety pin |
| cutter diameter | 20 mm |
| knuckle length | 140 mm |
| knuckle diameter | 20 mm |
| collar ring | 30 mm |
| spindle diameter | 10 mm |
| height | 140 mm |
| maintenance | not required (self-lubricating bearings) |
| installation template | available for sale or rent |
| fastening elements | must be ordered separately |
| material | steel / stainless steel |
| Series | BAKA |
