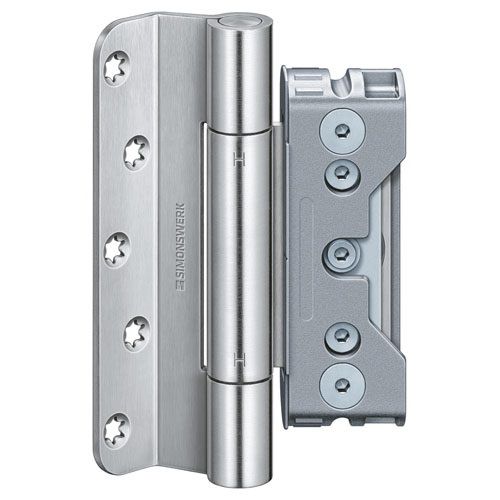

Set of adjustable hinges for non-rebated doors BAKA Protect 4049 3D
Manufacturer - SIMONSWERK (Germany)

    • 3-dimensional adjustability: side (+/- 3 mm), height (+/- 3 mm), depth (+/- 3 mm)
    • threaded frame pin
    • suitable for non-rebated wooden exterior doors
    • with rounded corners
    • concealed receiver in door leaf
    • high-quality maintenance-free bearings
    • knuckle length: 140 mm, diameter: 20 mm
    • milling diameter: 20 mm
    • available in sets of 3 hinges: 1 height-adjustable hinge, 2 depth-adjustable hinges
    • max load capacity:
      • 120 kg with 2 hinges (leaf 1000 x 2000 mm; distance between 1st and 2nd hinge reference line: 1435 mm)
      • if using 3 hinges (standard set), load capacity increases to 150 kg
      • if necessary, a 4th hinge can be ordered separately
    • material:
      • stainless steel
      • light galvanised



Classification code according to DIN EN 1935
2 7 3 1 1 *1 0 10
*1 depending on surface finish






All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Exterior handle set BAKA Protect 4049 3D MSTS, stainless steel matt
    Exterior handle set BAKA Protect 4049 3D MSTS, stainless steel matt
    Code: SB00008767
    Art. Nr.: 76 080905 0 04085
    Price:
    From Special Price €172.90 was €216.12
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 1 kit
adjustment adjustable
adjustment type with eccentrics
anti-corrosion resistance certified according to EN 1935 - depending on finish
anti-corrosion resistance in accordance with EN 1935 class 2 - average
anti-intruder protection yes, integrated safety pin
class as per EN 1935 class 2
collar ring 30 mm
cutter diameter 20 mm
door construction for non-rebated doors
door direction universal use for DIN right and left hand doors
fastening elements must be ordered separately
fire safety suitable for fire and smoke safety doors
groove for leaf seal no
height 140 mm
hinge shape rounded
hinge type heavy duty hinge
installation template available for sale or rent
knuckle diameter 20 mm
knuckle length 140 mm
leaf maximum weight 150 kg
leaf material wood
load capacity middle
maintenance not required (self-lubricating bearings)
Manufacturer SIMONSWERK
material steel / stainless steel
Pamatsortiments Yes
sound insulation no
spindle diameter 10 mm
suitable for aluminium frames not suitable
suitable for industrial frames suitable
suitable for steel frames not suitable
suitable for timber frames suitable
