Stainless steel handle for fire-rated doors CORE 8100 FS

Product code
MB00010027
OGRO+DENI
main product photo
All prices include VAT
From €69.45
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

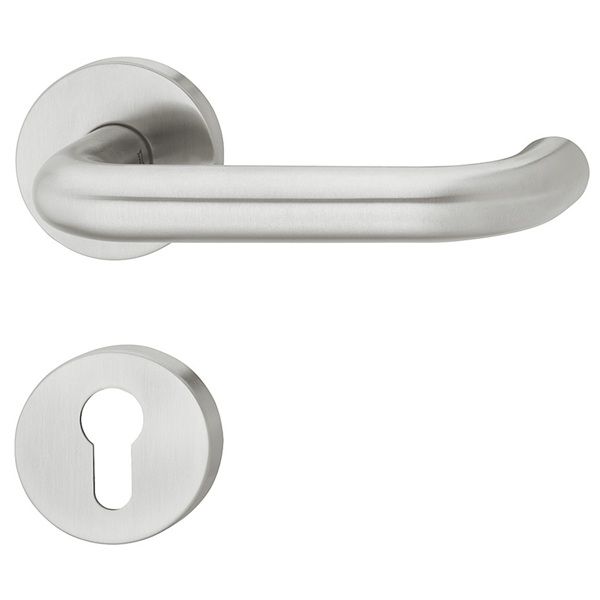

Stainless steel handle for fire-rated doors CORE 8100 FS



  • built-in spring, which ensures durability when combined with split-shaft locks
  • meets the requirements for fire-rated doors according to DIN 18273 and the requirements for escape doors according to EN 179 (when combined with a split handle shaft)
  • steel/plastic subframe with snap-on “Clip” cover plate and steel centering pins Ø 8 mm
  • construction complies with load and resistance class 4 according to EN 1906
  • concealed M5 screw connection with anti-loosening protection
  • automatic locking/unlocking mechanism ensures easy and smooth installation even for heavy doors
  • universally applicable for right- and left-handed doors
  • with a fixed hinge connection in a self-lubricating slide bearing
  • door thickness: 38–63 mm
  • adaptable to doors of different thickness on request (please indicate door thickness in a comment upon ordering)
  • handle length: 143 mm
  • handle diameter: 20 mm
  • handle square spindle: 9 mm
  • rosette diameter: 55 mm
  • material: stainless steel
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. CORE 8100 FS fire safety door handle set with roses PZ, 9mm, stainless steel
    CORE 8100 FS fire safety door handle set with roses PZ, 9mm, stainless steel
    Code: SB00029470
    Art. Nr.: 90050063189
    Price:
    From €69.45
    In Stock: 0 set

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. ANTI-PANIK split handle spindle for panic doors 9x60/60 mm
    ANTI-PANIK split handle spindle for panic doors 9x60/60 mm
    Code: SB00011057
    Art. Nr.: 0566/6060/00
    Price:
    From €5.08
    In Stock: 13 pc.
  2. ANTI-PANIK split handle spindle for fire safety doors 9mm x 60/80
    ANTI-PANIK split handle spindle for fire safety doors 9mm x 60/80
    Code: SB00011058
    Art. Nr.: 0566/6080/00
    Price:
    From €5.97
    In Stock: 13 pc.
  3. ANTI-PANIK split handle spindle for fire safety doors 9 mm x 60/85
    ANTI-PANIK split handle spindle for fire safety doors 9 mm x 60/85
    Code: SB00011059
    Art. Nr.: 0566/6085/00
    Price:
    From €5.97
    In Stock: 5 pc.
  4. ANTI-PANIK split handle spindle for fire safety doors 9 mm x 75/75
    ANTI-PANIK split handle spindle for fire safety doors 9 mm x 75/75
    Code: SB00011060
    Art. Nr.: 0566/7575/00
    Price:
    From €14.44
    In Stock: 0 pc.
    Visma Quote
Manufacturer OGRO+DENI
material stainless steel
leaf material for wooden and metal doors
purpose for interior doors / for exterior doors
construction lever handles on both sides
backplate type split roses
door direction universal use for DIN right and left hand doors
load capacity high
class as per EN 1906 class 4
suitable for emergency exits complies with 179 - emergency door equipment
fire safety fire safety certified according to EN1906
Compatibility standard German (DIN)
handle construction with fixed joint in self-lubricating bearing
material: sub-construction steel
locking function PZ / BB / WC / BAC
handle length 143 mm
handle diameter 20 mm
distance from leaf surface to outer edge of handle 73 mm
handle square spindle size 9 mm
backplate/rose shape round
backplate/rose size Ø55 mm
backplate/rose thickness 9 mm
installation type screw on
WC knob type with colour indicator
fastening type concealed screws, with unscrewing protection
fastening centre distance 38 mm
centring lug diameter 8 mm
fastening elements included in set
