Handle for framed doors ARES 1200 ALU
Product code
MB00009650
All prices include VAT
From
€15.95
From
€15.95
Only %1 left

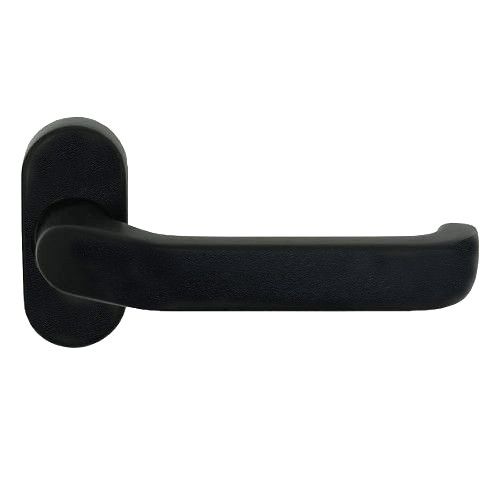

Aluminium handle for framed doors ARES 1200
Manufacturer - DIECKMANN (Germany)- spring-loaded lever handle firmly fixed into oval rose
- conforms to DIN EN 1906 class 4
- handle construction with angled grip reduces the risk of injury which may happen when opening/closing the door by the hand coming into contact with the door frame
- suitable for both left and right hand doors
- steel sub-construction with click-on rose
- covered screws Ø M5
- rose size: 34 x 75 mm
- rose thickness: 14,5 mm
- handle length: 143 mm
- distance from leaf surface to external surface of handle: approx. 69,5 mm
- spindle square: 8 mm
- material: aluminium anodized
- available finishes:
- natural aluminium tone (F1)
- matt black RAL9005, powder coated (F14)
- matt black RAL9005, structured (F44)
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Handle for framed doors ARES 1200 on oval rose, without spindle, 8mm, F14 aluminium black RAL9005Code: SB00021136Art. Nr.: 1200/2033/14Price:From €15.95In Stock: 0 pc.
-
Handle for framed doors ARES 1200 on oval rose, without spindle, 8mm, F44 aluminium black structuredCode: SB00025027Art. Nr.: 1200/2033/44Price:From €15.95In Stock: 0 pc.
Additional products
- Products
- Price
- In Stock
- Quantity
-

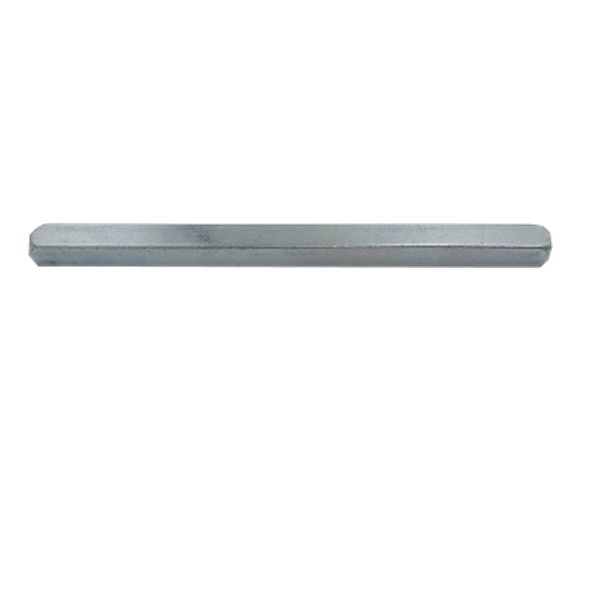

9B rokturu ass bez šķēluma, 8x90 mmCode: SB00023690Art. Nr.: 0572/0809/00Price:From €0.88In Stock: 0 pc.
-

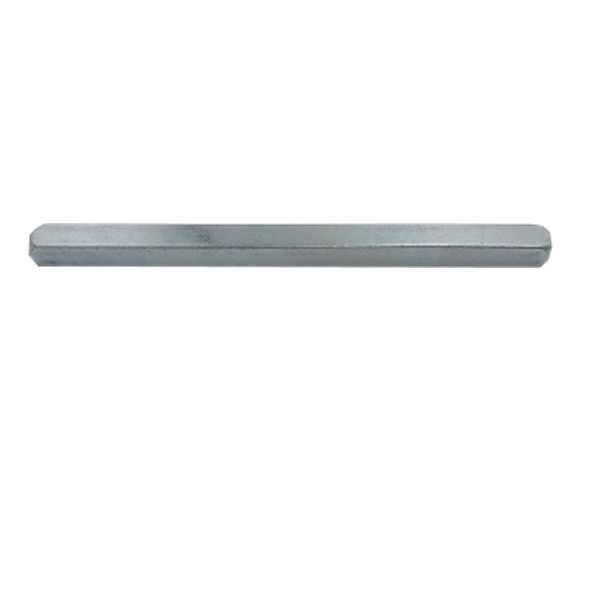

9B spindle without split, 8x140 mmCode: SB00021052Art. Nr.: 0572/0814/00Price:From €0.85In Stock: 35 pc.
-
9B spindle without split, 8x150 mmCode: SB00000153Art. Nr.: 1A008F6200XX3DXXPPrice:From €1.00In Stock: 54 pc.
-
9B spindle without split, 8x160 mmCode: SB00000154Art. Nr.: 0572/0816/00Price:From €1.00In Stock: 37 pc.
-
9B spindle without split, 8x200 mmCode: SB00000156Art. Nr.: 0572/0820/00Price:From €3.40In Stock: 7 pc.
Manufacturer | DIECKMANN |
---|---|
Series | ARES |
material | aluminium anodised |
leaf material | for framed doors |
purpose | for interior doors |
construction | one-sided handle female part on rose or backplate |
class as per EN 1906 | class 4 |
load capacity | high |
suitable for emergency exits | related model available, complies with EN 179 requirements |
fire safety | related fireproof model available |
door direction | universal use for DIN right and left hand doors |
compatibility standard | German (DIN) |
position of door handle | offset (for finger protection) |
handle construction | Rozetes konstrukcijā stabili stiprināts nospiežams |
material: sub-construction | steel |
handle spring | integrated holding spring to cushion the push and pull forces |
handle length | 143 mm |
handle square spindle size | 8 mm |
distance from leaf surface to outer edge of handle | 69.5 mm |
backplate/rose shape | oval |
backplate/rose thickness | 14.5 mm |
backplate/rose size | 34 x 75 mm |
fastening centre distance | 50 mm |
installation type | screw on |
fastening type | covered |
fastening elements | must be ordered separately |
