Handle RIVA-103 for heavy-duty doors

Product code
MB00001652
All prices include VAT
From €67.12
From €67.12
In Stock
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Stainless steel handle for heavy-duty doors RIVA-103
Manufacturer - DIECKMANN (Germany)

    • steel/plastic sub-construction with click-on rose and supporting lugs Ø 8 mm
    • corresponds to grade 4 in use and durability according to EN 1906
    • concealed screws M5 with unscrewing protection
    • automatic locking and release mechanism guarantees easy installation even in heavy doors
    • suitable for both left and right hand doors
    • with fixed joint in self-lubricating bearing
    • door thickness: 40-65 mm (WC 40-59 mm)
    • handle length: 142 mm
    • handle diameter: 22 mm
    • spindle square: 8 mm
    • rose diameter: 55 mm
    • may be combined with round door knob K7
    • material: stainless steel matt satin
    •
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

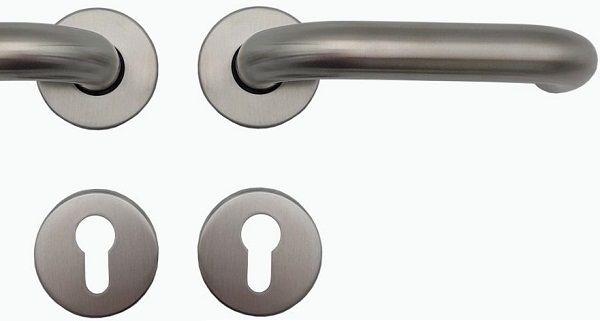

  1. RIVA 103 door handle set with roses PZ, 8mm, class 4, stainless steel
    RIVA 103 door handle set with roses PZ, 8mm, class 4, stainless steel
    Code: SB00011375
    Art. Nr.: 813 5903/8603 EST
    Price:
    From €67.12
    In Stock: 15 kit
  2. RIVA 103 door handle set with roses WC, 8mm, class 4, stainless steel
    RIVA 103 door handle set with roses WC, 8mm, class 4, stainless steel
    Code: SB00011376
    Art. Nr.: 813 5903/8704 EST
    Price:
    From €89.35
    In Stock: 2 kit
WC knob type with colour indicator
backplate/rose shape round
backplate/rose size Ø55 mm
backplate/rose thickness 8 mm
centring lug diameter 8 mm
class as per EN 1906 class 4
compatibility standard German (DIN)
construction lever handles on both sides
distance from leaf surface to outer edge of handle 68 mm
door direction universal use for DIN right and left hand doors
door thickness 40-65 mm (WC 40-59 mm)
fastening centre distance 38 mm
fastening elements included in set
fastening type concealed screws, with unscrewing protection
fastening type concealed screws, with unscrewing protection
fastening type concealed screws, with unscrewing protection
fire safety related fireproof model available
handle construction with fixed joint in self-lubricating bearing
handle diameter 22 mm
handle length 142 mm
handle square spindle size 8 mm
handle spring integrated holding spring to cushion the push and pull forces
installation type screw on
leaf material for wooden and metal doors
load capacity high
locking function PZ / BB / WC / BAC
Manufacturer DIECKMANN
material stainless steel
material: sub-construction steel
purpose for interior doors / for exterior doors
set with split roses
suitable for emergency exits related model available, complies with EN 179 requirements
