Handle RIVA-136 for heavy-duty doors
Product code
MB00009060
All prices include VAT
From
€81.78
From
€81.78
In Stock
Only %1 left
Stainless steel handle for heavy-duty doors RIVA-136
Manufacturer - DIECKMANN (Germany)
Manufacturer - DIECKMANN (Germany)
-
- steel/plastic sub-construction with click-on rose and supporting lugs Ø 8 mm
- corresponds to grade 4 in use and durability according to EN 1906
- concealed screws M5 with unscrewing protection
- automatic locking and release mechanism guarantees easy installation even in heavy doors
- suitable for both left and right hand doors
- with fixed joint in self-lubricating bearing
- door thickness: 40-65 mm (WC 40-59 mm)
- handle length: 144 mm
- handle diameter: 22 mm
- spindle square: 8 mm
- rose diameter: 55 mm
- may be combined with round door knob K7
- material: stainless steel matt satin
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
RIVA 136 door handle set with roses PZ/8mm, class 4, stainless steelCode: SB00011385Art. Nr.: 5936/8603/00Price:From €81.78In Stock: 1 kit -

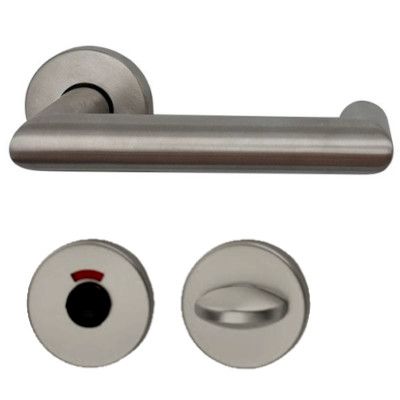

RIVA 136 door handle set with roses WC, class 4, stainless steelCode: SB00011386Art. Nr.: 5936/8704/00Price:From €102.92In Stock: 0 kit
| WC knob type | with colour indicator |
|---|---|
| backplate/rose shape | round |
| backplate/rose size | Ø55 mm |
| backplate/rose thickness | 8 mm |
| centring lug diameter | 8 mm |
| class as per EN 1906 | class 4 |
| compatibility standard | German (DIN) |
| construction | lever handles on both sides |
| distance from leaf surface to outer edge of handle | 67 mm |
| door direction | universal use for DIN right and left hand doors |
| door thickness | 40-65 mm (WC 40-59 mm) |
| fastening centre distance | 38 mm |
| fastening elements | included in set |
| fastening type | concealed screws, with unscrewing protection |
| fire safety | related fireproof model available |
| handle construction | with fixed joint in self-lubricating bearing |
| handle diameter | 22 mm |
| handle length | 130 mm |
| handle square spindle size | 8 mm |
| handle spring | integrated holding spring to cushion the push and pull forces |
| installation type | screw on |
| leaf material | for wooden and metal doors |
| load capacity | high |
| locking function | PZ / BB / WC / BAC |
| Manufacturer | DIECKMANN |
| material: sub-construction | steel |
| material | stainless steel |
| purpose | for interior doors / for exterior doors |
| set | with split roses |
| suitable for emergency exits | related model available, complies with EN 179 requirements |
