Handle RIVA-136 FS for fireproof heavy-duty doors

Product code
MB00001659
All prices include VAT
From €91.96
From €91.96
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Stainless steel handle for fireproof doors RIVA-136 FS
Manufacturer - DIECKMANN (Germany)

    • complies with DIN 18 273 standard for fire safety doors and with EN 179 standard for emergency door equipment (in set with split spindle)
    • steel/plastic sub-construction with click-on rose and supporting lugs Ø 8 mm
    • corresponds to grade 4 in use and durability according to EN 1906
    • concealed screws M5 with unscrewing protection
    • automatic locking and release mechanism guarantees easy installation even in heavy doors
    • suitable for both left and right hand doors
    • with fixed joint in self-lubricating bearing
    • certified for use in fireproof doors according to EN 1906
    • door thickness: 40-65 mm (WC 40-59 mm)
    • handle length: 144 mm
    • handle diameter: 22 mm
    • spindle square: 9 mm
    • rose diameter: 55 mm
    • may be combined with round door knob K7
    • material: stainless steel matt satin
    •
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

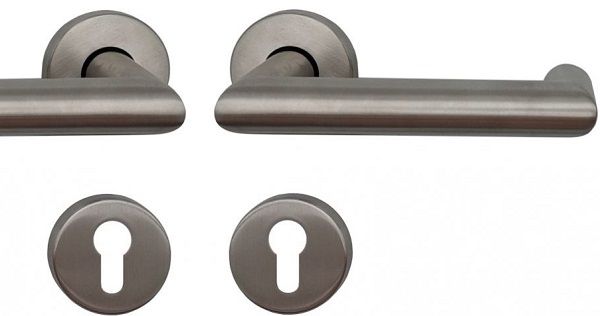

  1. RIVA 136 FS fire safety door handle set with roses PZ, 9mm, class 4, stainless steel
    RIVA 136 FS fire safety door handle set with roses PZ, 9mm, class 4, stainless steel
    Code: SB00011355
    Art. Nr.: 5436/8603/00
    Price:
    From €91.96
    In Stock: 0 kit

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. ANTI-PANIK split handle spindle for fire safety doors 9mm x 60/80
    ANTI-PANIK split handle spindle for fire safety doors 9mm x 60/80
    Code: SB00011058
    Art. Nr.: 0566/6080/00
    Price:
    From €9.60
    In Stock: 14 pc.
WC knob type with colour indicator
backplate/rose shape round
backplate/rose size Ø55 mm
backplate/rose thickness 8 mm
centring lug diameter 8 mm
class as per EN 1906 class 4
compatibility standard German (DIN)
construction lever handles on both sides
distance from leaf surface to outer edge of handle 67 mm
door direction universal use for DIN right and left hand doors
door thickness 40-65 mm (WC 40-59 mm)
fastening centre distance 38 mm
fastening elements included in set
fastening type concealed screws, with unscrewing protection
fire safety fire safety certified according to EN1906
handle construction with fixed joint in self-lubricating bearing
handle diameter 22 mm
handle length 130 mm
handle square spindle size 9 mm
installation type screw on
leaf material for wooden and metal doors
load capacity high
locking function PZ / BB / WC / BAC
Manufacturer DIECKMANN
material stainless steel
material: sub-construction steel
purpose for interior doors / for exterior doors
set with split roses
size 8 x 140 mm
suitable for emergency exits complies with 179 - emergency door equipment
