Handle TARGA/K-103 FS for fireproof emergency doors
Product code
MB00009052
All prices include VAT
From
€36.42
From
€36.42
Only %1 left
Stainless steel door handle for fireproof emergency doors TARGA/K-103 FS
Manufacturer - DIECKMANN (Germany)
Manufacturer - DIECKMANN (Germany)
-
- complies with DIN 18 273 standard for fire safety doors and with EN 179 standard for emergency door equipment
- steel sub-construction with click-on rose and supporting lugs Ø 8 mm
- corresponds to grade 4 in use and durability according to EN 1906
- concealed screws M5 with unscrewing protection
- suitable for both left and right hand doors
- with fixed joint in self-lubricating bearing
- door thickness: 40-65 mm (WC 40-59 mm)
- handle length: 142 mm
- handle diameter: 22 mm
- spindle square: 9 mm
- backplate size: 173 x 54 x 8 mm
- centre distance: 72 mm
- may be combined with round door knob K7
- material:
-
-
- stainless steel matt satin
-
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

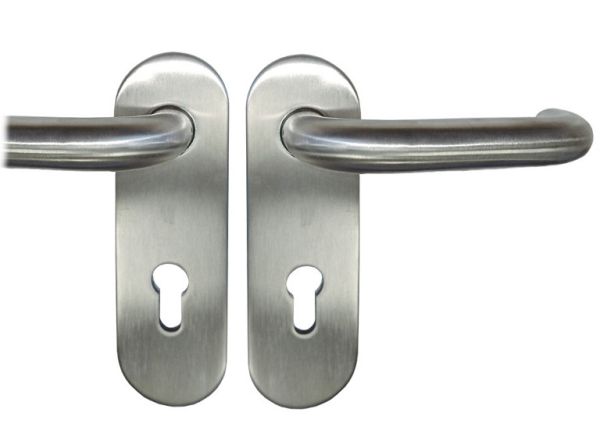

Fire safety door handle set TARGA/K-103 FS with knob and short backplates PZ 9/72, stainless steelCode: SB00011328Art. Nr.: 813 5203/7203 ESTPrice:From €73.96In Stock: 0 kit -

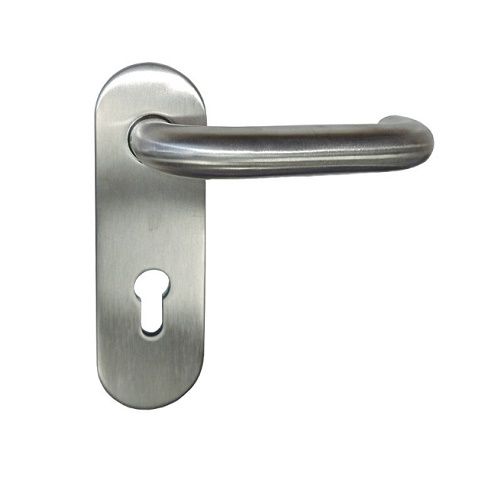

Fire safety door handle (outer) TARGA/K-103 FS with short backplate PZ 9/72, stainless steelCode: SB00011329Art. Nr.: 813 5203/7203 EST/2Price:From €36.42In Stock: 0 pc.
Additional products
- Products
- Price
- In Stock
- Quantity
-
ANTI-PANIK split handle spindle for fire safety doors 9mm x 60/80Code: SB00011058Art. Nr.: 813 0566/6080/00Price:From €9.60In Stock: 10 pc.
-
ANTI-PANIK split handle spindle for panic doors 9x60/60 mmCode: SB00011057Art. Nr.: 813 0562 PTPrice:From €8.70In Stock: 10 pc.
| backplate/rose shape | round |
|---|---|
| backplate/rose size | 54 x 173 |
| backplate/rose thickness | 8 mm |
| centre distance PZ | 72 mm |
| centring lug diameter | 8 mm |
| class as per EN 1906 | class 4 |
| compatibility standard | German (DIN) |
| construction | lever handles on both sides |
| distance from leaf surface to outer edge of handle | 68 mm |
| door direction | universal use for DIN right and left hand doors |
| door thickness | 40-65 mm (WC 40-59 mm) |
| fastening centre distance | 90.5 mm |
| fastening elements | included in set |
| fastening type | concealed screws, with unscrewing protection |
| fire safety | fire safety certified according to EN1906 |
| handle construction | with fixed joint in self-lubricating bearing |
| handle diameter | 22 mm |
| handle length | 142 mm |
| handle square spindle size | 9 mm |
| handle spring | integrated holding spring to cushion the push and pull forces |
| installation type | screw on |
| leaf material | for wooden and metal doors |
| load capacity | high |
| locking function | PZ / BB / WC / BAC |
| Manufacturer | DIECKMANN |
| material | stainless steel |
| material: sub-construction | steel |
| purpose | for interior doors / for exterior doors |
| set | with short backplates |
| suitable for emergency exits | complies with 179 - emergency door equipment |
