Handle TARGA/K-103 for heavy-duty doors

Product code
MB00000469
All prices include VAT
From €65.80
From €65.80
In Stock
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Stainless steel door handle for heavy-duty doors TARGA/K-103
Manufacturer - DIECKMANN (Germany)

    • steel sub-construction with click-on rose and supporting lugs Ø 8 mm
    • corresponds to grade 4 in use and durability according to EN 1906
    • concealed screws M5 with unscrewing protection
    • suitable for both left and right hand doors
    • with fixed joint in self-lubricating bearing
    • door thickness: 40-65 mm (WC 40-59 mm)
    • handle length: 142 mm
    • handle diameter: 22 mm
    • spindle square: 8 mm
    • backplate size: 173 x 54 x 8 mm
    • centre distance: 72 mm
    • material: stainless steel matt satin
    •
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

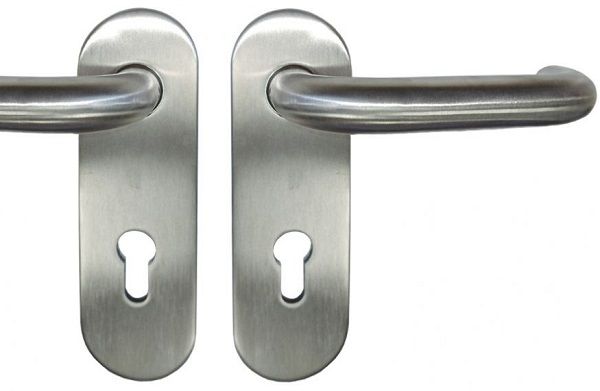

  1. Door handle set TARGA/K-103 with short backplates PZ 8/72, stainless steel
    Door handle set TARGA/K-103 with short backplates PZ 8/72, stainless steel
    Code: SB00011357
    Art. Nr.: 813 5603/7203 EST
    Price:
    From €65.80
    In Stock: 5 kit

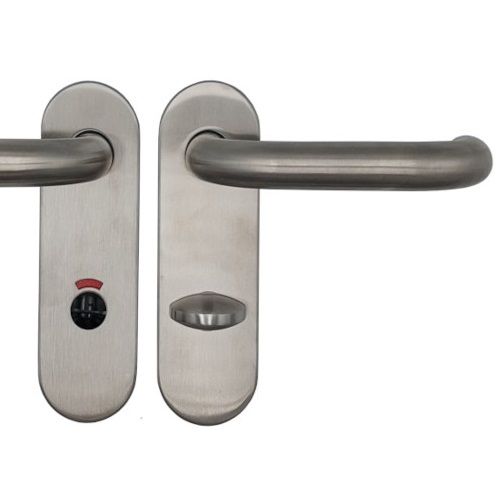

  2. Door handle set TARGA/K-103 with short backplates WC 8/78, stainless steel
    Door handle set TARGA/K-103 with short backplates WC 8/78, stainless steel
    Code: SB00011359
    Art. Nr.: 813 5603/7875 EST
    Price:
    From €86.85
    In Stock: 2 kit
backplate/rose shape round
backplate/rose size 54 x 173
backplate/rose thickness 8 mm
centre distance WC 78 mm
centre distance BB 72 mm
centre distance PZ 72 mm
centring lug diameter 8 mm
class as per EN 1906 class 4
compatibility standard German (DIN)
construction lever handles on both sides
distance from leaf surface to outer edge of handle 68 mm
door direction universal use for DIN right and left hand doors
door thickness 40-65 mm (WC 40-59 mm)
fastening centre distance 90.5 mm
fastening elements included in set
fastening type concealed screws, with unscrewing protection
fastening type concealed screws, with unscrewing protection
fastening type concealed screws, with unscrewing protection
fire safety related fireproof model available
handle construction with fixed joint in self-lubricating bearing
handle diameter 22 mm
handle length 142 mm
handle square spindle size 8 mm
handle spring integrated holding spring to cushion the push and pull forces
installation type screw on
leaf material for wooden and metal doors
load capacity high
locking function PZ / BB / WC / BAC
Manufacturer DIECKMANN
material stainless steel
material: sub-construction steel
purpose for interior doors / for exterior doors
set with short backplates
suitable for emergency exits related model available, complies with EN 179 requirements
