Concealed hinges for residental doors ANSELMI AN142 3D

Manufacturer - SIMONSWERK GROUP / ANSELMI (Italy)

  • in door leaf and frame completely integrated hinges for interior doors
  • for timber, aluminium and casing frames
  • suitable for unrebated wooden residential doors
  • 3D adjustment: side (+/- 1,5 mm), compression (+/- 1,0 mm) and height (+/- 2,5 mm)
  • may be adjusted without removing the door from its frame
  • suitable for both left and right hand doors
  • maintenance-free bearings
  • load capacity: 40 kg (refers  to the use of 2 hinges per door leaf 900 x 2100 mm)
  • opening angle: 180º
  • overall length: 144 mm
  • wight (door part / frame part): 27 / 27 mm
  • cutter diameter: 24 mm
  • IFT and UL certified
  • material: zamak / acetal
  • standard finishes:
    • satin chrome (AN 014)
    • black (AN 018)
    • traffic white RAL 9016 (AN 049)
  • finishes available on request:
    • antique bronze (AN 035)
    • polished brass (AN 037)
    • satin nickel (AN 044)
    • aluminium chrome (AN 036)
    • polished chrome (AN 039)

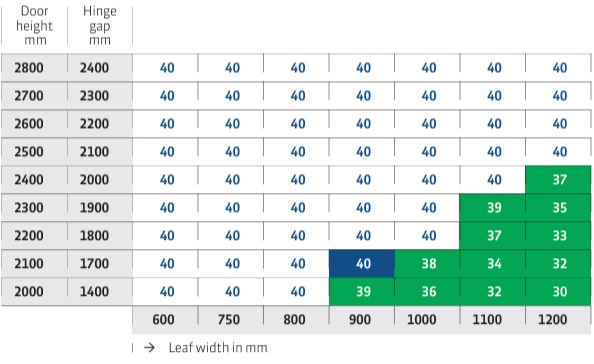

Permissible load values with diffrerent leaf widht and height ratios


All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Slēptā eņģe ANSELMI AN 142 3D, balta
    Slēptā eņģe ANSELMI AN 142 3D, balta
    Code: SB00024874
    Art. Nr.: A24A2749
    Price:
    From €22.39
    In Stock: 0 pc.
    Visma Quote

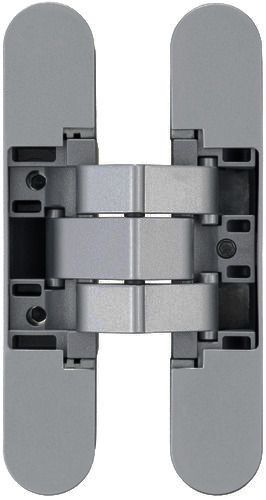

  2. Slēptā eņģe ANSELMI AN 142 3D, matēti hromēta
    Slēptā eņģe ANSELMI AN 142 3D, matēti hromēta
    Code: SB00027300
    Art. Nr.: AN142 3D 14
    Price:
    From €22.39
    In Stock: 0 pc.
    Visma Quote

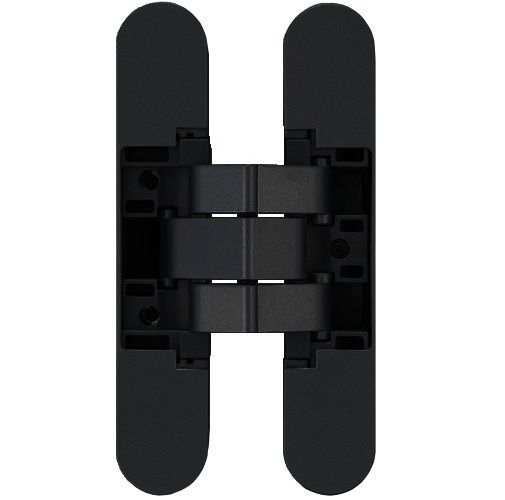

  3. Slēptā eņģe ANSELMI AN 142 3D, melna
    Slēptā eņģe ANSELMI AN 142 3D, melna
    Code: SB00024875
    Art. Nr.: AN 142 3D (18)
    Price:
    From €22.39
    In Stock: 0 pc.
    Visma Quote
Manufacturer SIMONSWERK
hinge type concealed hinge
hinge shape rounded
door construction for non-rebated doors
door direction universal use for DIN right and left hand doors
class as per EN 1935 not certified, conforms class 2
fire safety not suitable for fire and smoke safety doors
leaf material wood
load capacity middle
leaf maximum weight 40 kg
suitable for aluminium frames suitable
suitable for steel frames not suitable
suitable for industrial frames suitable using additional mounting parts
suitable for timber frames suitable
anti-corrosion resistance not certified
adjustment adjustable
adjustment type may be adjusted without removing door from its frame
groove for leaf seal no
anti-intruder protection yes
cutter diameter 24 mm
collar ring 30 mm
height 144 mm
Vērtnes daļas frēzējuma dziļums 42 mm
Kārbas daļas frēzējuma dziļums 30 mm
Vērtnes daļas platums 27 mm
Kārbas daļas platums 27 mm
maintenance not required (self-lubricating bearings)
installation template available for sale or rent
fastening elements must be ordered separately
material ZAMAK / ACETAL
Series ANSELMI
