Handle set for fireproof emergency door FSB 79 1290 1410 FS ALU
Product code
MB00009621
All prices include VAT
From
€261.94
From
€261.94
Only %1 left
Fireproof handle for emergency doors FSB 79 1290 1410 FS ALU
Manufacturer - FSB (Germany)Design: Markus Michalski and Michael Schmidt
The 1290 model (product collection FSB 1289) boasts up-to-the-minute, pared down styling. Its elegant, finely nuanced flow of lines at the front exudes a clarity that is a joy to behold. The user’s hand is caressed by well-proportioned curvature on the inside of the handle that makes for sumptuous, ergonomically “soft” gripping.
- handle/backplate set for fireproof emergency doors
- FSB AGL® construction with concealed handle guide ring
- corresponds to grade 4 in use and durability according to EN 1906, suitable for use in doors with high usage such as in public buildings
- construction durability tested on 1'000'000 cycles of use
- complies with DIN 18 273 and EN 1634-1 standards for fire safety doors
- complies with EN 179 standard for emergency door equipment
- integrated spring for lock load release with active angle of 35°
- stainless steel reinforced sub-construction with stable fixed pivot axis
- handle length: 140 mm
- distance from rose surface to external surface of handle: 57 mm
- set with long rectangular backplates
- PZ keyhole
- backplate size: 45 x 245 mm
- backplate thickness: 7 mm
- fixed supporting lugs Ø10 mm
- distance between centres: 72 / 92 mm
- split spindle: 9 mm
- standard set suitable for door thickness of 39-48 mm
- possible to order sets for door thickness of 29-98 mm
- material: aluminium anodised
- available finishes:
- F1 natural aluminium tone
- S5 textured matt, medium dark bronze tone
- S7 textured matt, dark bronze tone
- S8 textured matt, black
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
FSB 79 1290 handle set with backplates for fireproof emergency doors, PZ 72mm, natural aluminium F1,RIGHTCode: SB00023055Art. Nr.: 0 79 1290 92110 0105Price:From €261.94In Stock: 0 set -

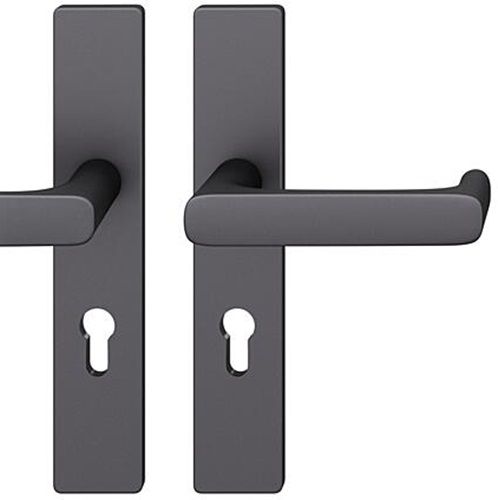

FSB 79 1290 handle set with backplates for fireproof emergency doors, PZ 72mm, matt black S8,RIGHTCode: SB00023057Art. Nr.: 0 79 1290 92110 0810Price:From €340.52In Stock: 0 set
-
FSB 79 1290 handle set with backplates for fireproof emergency doors, PZ 72mm, medium dark bronze S5,RIGHTCode: SB00023056Art. Nr.: 0 79 1290 92110 0510Price:From €340.52In Stock: 0 set
-

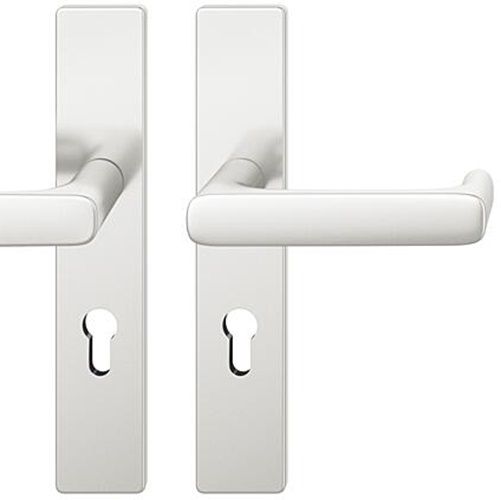

FSB 79 1290 handle set with backplates for fireproof emergency doors, PZ 92mm, natural aluminium F1,RIGHTCode: SB00023058Art. Nr.: 0 79 1290 92112 0105Price:From €261.94In Stock: 0 set
-
FSB 79 1290 handle set with backplates for fireproof emergency doors, PZ 92mm, matt black S8,RIGHTCode: SB00023060Art. Nr.: 0 79 1290 92112 0810Price:From €340.52In Stock: 0 set
-

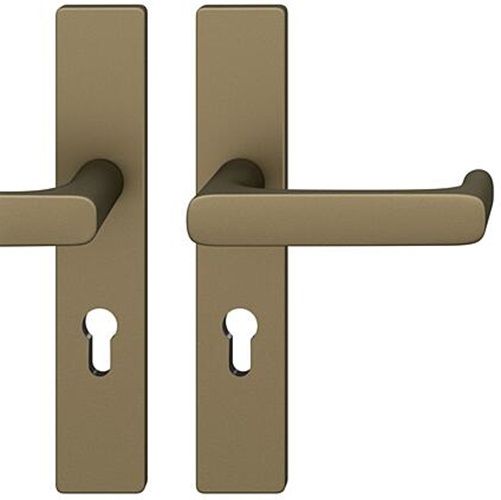

FSB 79 1290 handle set with backplates for fireproof emergency doors, PZ 92mm, medium dark bronze S5,RIGHTCode: SB00023059Art. Nr.: 0 79 1290 92112 0510Price:From €340.52In Stock: 0 set
| Manufacturer | FSB |
|---|---|
| Series | FSB 1290 |
| material | aluminium anodised blasted |
| leaf material | for wooden and metal doors |
| purpose | for interior doors / for exterior doors |
| construction | lever handles on both sides |
| position of door handle | not offset |
| load capacity | high |
| class as per EN 1906 | class 4 |
| suitable for emergency exits | complies with 179 - emergency door equipment |
| fire safety | fire safety certified according to EN1906 |
| door direction | when ordering please indicate door swing direction |
| handle spring | integrated holding spring to cushion the push and pull forces |
| handle construction | with stable fixed pivot axis |
| material: sub-construction | reinforced with stainless steel |
| compatibility standard | German (DIN) |
| handle length | 140 mm |
| handle square spindle size | 9 mm |
| set | long backplates |
| backplate/rose shape | square |
| locking function | PZ - with profile cylinder hole |
| backplate/rose thickness | 7 mm |
| backplate/rose size | 45 x 245 mm |
| centre distance PZ | 72 / 92 mm |
| installation type | screw on |
| fastening type | concealed screw fitting |
