VOYAGER MAXIM NUMERIC viedās piekļuves kontroles garnitūra

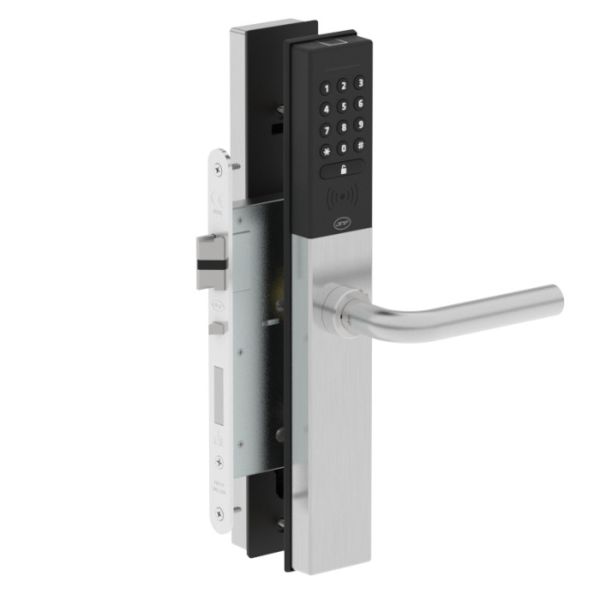

Smart access control set VOYAGER MAXIM NUMERIC

Manufacturer - JNF (Portugal)

• electronic access control set with handles,lock and profile cylinder
• convenient solution for hotels, guest houses, rental apartmentss and entrance doors of public and residential buildings
• integrated numeric keypad with physical buttons
• battery operated, no cable conection required
• controlled via keypad, fingerprints, Mifare cards or mobile app VOYAGER by JNF (free download from Play Store and Apple Store)
• wireless connection to a smart device via Bluetooth
• can be integrated into a WiFi network using a gateway
• remote access management

Technical data

• Bluetooth 4.0 technology
• Mifare 13.56MHz magnetic cards - max. 100 pc.
• number keypad with 12 characters - max. 900
• fingerprint reader - max. 900
• LED light with status indication
• sounds for installation assistance
• USB-C input for external power (in case of battery failure)
• outside handle is idle, activated only after authentication
• possible to activate free access mode
• possible to retrofit doors with existing locks
• spindle: 8x8 mm
• possible to open with a standard key in case of emergency (recommended)
• handle rotation: 45º
• suitable for door thickness of 35 - 60 mm (when equipped with an extended handle axis - up to 100 mm)
• without keyhole
• lock with distance between handle and cylinder centres: 72 mm
• backplate dimensions: 48 x 320 mm
• backplate thickness: 21 mm
• 3 alkaline batteries LR03 – 1.5V AAA (optional 3 lithium batteries FR03 – AAA 1.5V)
• static consumption: 12 µA
• dynamic consumption: 300 mA
• durability: 40 000 - 70 000 cycles with 1 set of batteries (variable according to environmental conditions)
• low battery warning: 200 cycles, after the first warning
• temperature range: -20 ºC to +55 ºC (lower air temperatures reduce battery life)
• operational humidity range: 20-80%
• material: stainless steel EN 1.4301 satin / black

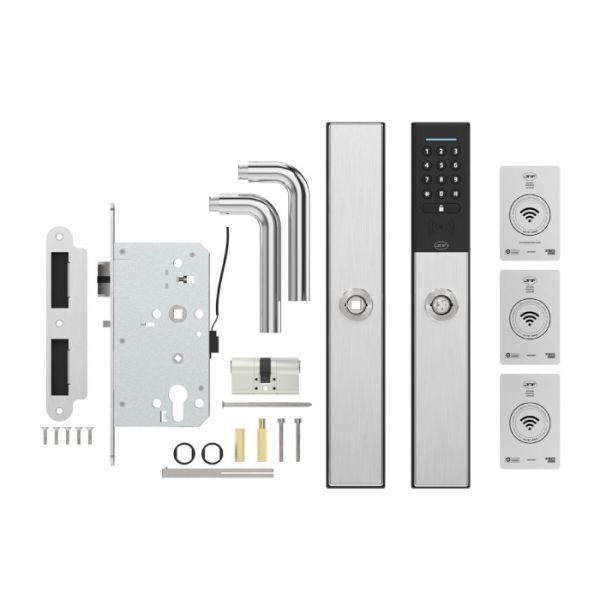

Set

• electronic backplates, blind on both sides, with integrated keyboard, card and fingerprint reader
• handles IN.00.028.SR
• self-locking fireproof mortise lock IN.20.601.R with integrated connection switch to the access control that monitors the dead bolt from the inside
• strike plate with latch and ded bolt receiver
• European profile cylinder IN.19.S05.35.35 (hidden and accessible in case of emergency)
