VOYAGER NUMERIC TITANIUM smart access control backplates

Product code
V-NUMERIC-TIT
JNF View catalogue of manufacturer
main product photo
From €347.39
Reset selection
VOYAGER MAXIM NUMERIC TITANIUM smart access control backplates without handles   €298.27
1 x Pair of handle BY CHOICE   €49.13

Price as configured €347.39

kit
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

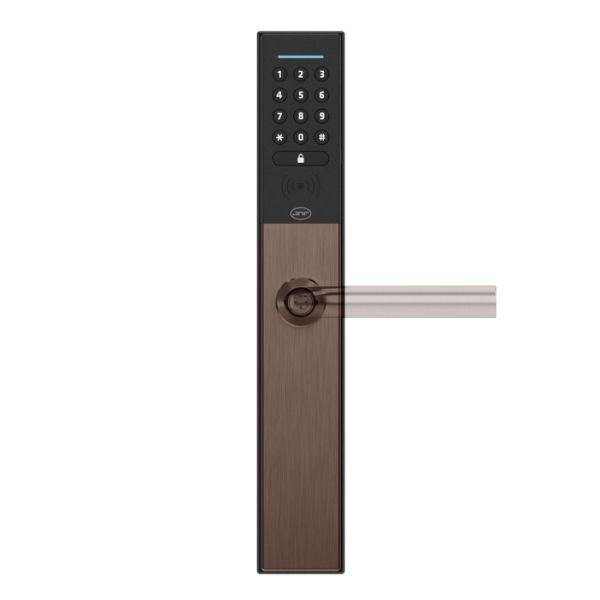

Smart backplates VOYAGER MAXIM NUMERIC TITANIUM

Manufacturer - JNF (Portugal)

  • access control set without handles
  • convenient solution for entrance doors of public and residential buildings
  • integrated numeric keypad
  • possible to choose different handle models from the JNF range
  • compatible with DIN locks and European profile cylinders
  • battery operated
  • controlled via keypad, fingerprints, Mifare cards or mobile app VOYAGER by JNF - free download from Play Store and Apple Store
  • wireless connection to a smart device via Bluetooth
  • can be integrated into a WiFi network using a gateway
  • possible combination with code panel



Technical data

  • Bluetooth 4.0 technology
  • Mifare 13.56MHz magnetic cards - max. 100 pc.
  • number keypad with 12 characters - max. 900
  • fingerprint reader - max. 900
  • LED light with status indication
  • sounds for installation assistance
  • USB-C input for external power (in case of battery failure)
  • possible to choose different handle models from the JNF range
  • outside handle is idle, activated only after authentication
  • possible to activate free access mode
  • possible to retrofit doors with existing locks
  • compatible with DIN locks and European profile cylinders
  • spindle: 8x8 mm
  • possible to open with a standard key in case of emergency (recommended)
  • handle rotation: 45º
  • suitable for door thickness of 35 - 60 mm (when equipped with an extended handle axis - up to 100 mm)
  • compatible with keyhole distance 70 - 102 mm
  • backplate dimensions: 48 x 320 mm
  • backplate thickness: 21 mm
  • 3 alkaline batteries LR03 – 1.5V AAA (optional 3 lithium batteries FR03 – AAA 1.5V)
  • static consumption: 12 µA
  • dynamic consumption: 300 mA
  • durability: 40 000 - 70 000 cycles with 1 set of batteries (variable according to environmental conditions)
  • low battery warning: 200 cycles, after the first warning
  • temperature range: -20 ºC to +55 ºC (lower air temperatures reduce battery life)
  • operational humidity range: 20-80%
  • material: stainless steel EN 1.4301 with PVD coating
    • satin black
    • satin copper
    • satin chocolate
    • satin gold

Configuration

In the standard configuration, we offer MAXIM NUMERIC backplates with handle models IN.00.028 and IN.00.177.
Upon request, it is possible to combine the backplates with almost any handle from the JNF handle model range.

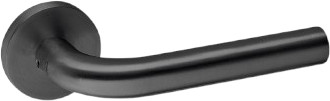

IN.00.028

In the picture, the handle is shown with a rose; for assembly with MAXIM NUMERIC, a handle without a rose should be used.

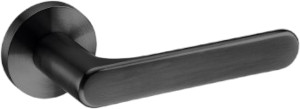

IN.00.177

In the picture, the handle is shown with a rose; for assembly with MAXIM NUMERIC, a handle without a rose should be used.

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. VOYAGER MAXIM NUMERIC smart access control backplates BAC without handles, 3xAAA, black PVD (TB)
    VOYAGER MAXIM NUMERIC smart access control backplates BAC without handles, 3xAAA, black PVD (TB)
    Code: SB00028127
    Art. Nr.: IN27560ATB
    Price:
    From €298.27
    In Stock: 0 kit
    Visma Quote
  2. VOYAGER NUMERIC smart access control backplates BAC without handles, 3xAAA, chocolate PVD (TCH)
    VOYAGER NUMERIC smart access control backplates BAC without handles, 3xAAA, chocolate PVD (TCH)
    Code: SB00028223
    Art. Nr.: IN27560ATCH
    Price:
    From €298.27
    In Stock: 0 kit
    Visma Quote
  3. VOYAGER NUMERIC smart access control backplates BAC without handles, 3xAAA, copper PVD (TCO)
    VOYAGER NUMERIC smart access control backplates BAC without handles, 3xAAA, copper PVD (TCO)
    Code: SB00028222
    Art. Nr.: IN27560ATCO
    Price:
    From €298.27
    In Stock: 0 kit
    Visma Quote
  4. VOYAGER NUMERIC smart access control backplates BAC without handles, 3xAAA, gold PVD (TG)
    VOYAGER NUMERIC smart access control backplates BAC without handles, 3xAAA, gold PVD (TG)
    Code: SB00028221
    Art. Nr.: IN27560ATG
    Price:
    From €298.27
    In Stock: 0 kit
    Visma Quote
  5. IN.00.177 pair of handles, spindle 8mm, without roses, black PVD (TB)
    IN.00.177 pair of handles, spindle 8mm, without roses, black PVD (TB)
    Code: SB00026260
    Art. Nr.: IN00177SRTB
    Price:
    From €65.34
    In Stock: 0 pāris
    Visma Quote
  6. IN.00.028 pair of handles, spindle 8mm, without roses, black PVD (TB)
    IN.00.028 pair of handles, spindle 8mm, without roses, black PVD (TB)
    Code: SB00028224
    Art. Nr.: IN00028SRTB
    Price:
    From €49.13
    In Stock: 0 pāris
    Visma Quote
  7. IN.00.028 pair of handles, spindle 8mm, without roses, chocolate PVD (TCH)
    IN.00.028 pair of handles, spindle 8mm, without roses, chocolate PVD (TCH)
    Code: SB00028227
    Art. Nr.: IN00028SRTCH
    Price:
    From €49.13
    In Stock: 0 pāris
    Visma Quote
  8. IN.00.177 pair of handles, spindle 8mm, without roses, chocolate PVD (TCH)
    IN.00.177 pair of handles, spindle 8mm, without roses, chocolate PVD (TCH)
    Code: SB00028235
    Art. Nr.: IN00177SRTCH
    Price:
    From €65.34
    In Stock: 0 pāris
    Visma Quote
  9. IN.00.028 pair of handles, spindle 8mm, without roses, copper PVD (TCO)
    IN.00.028 pair of handles, spindle 8mm, without roses, copper PVD (TCO)
    Code: SB00028226
    Art. Nr.: IN00028SRTCO
    Price:
    From €49.13
    In Stock: 0 pāris
    Visma Quote
  10. IN.00.177 pair of handles, spindle 8mm, without roses, copper PVD (TCO)
    IN.00.177 pair of handles, spindle 8mm, without roses, copper PVD (TCO)
    Code: SB00028232
    Art. Nr.: IN00177SRTCO
    Price:
    From €65.34
    In Stock: 0 pāris
    Visma Quote
  11. IN.00.028 pair of handles, spindle 8mm, without roses, gold PVD (TG)
    IN.00.028 pair of handles, spindle 8mm, without roses, gold PVD (TG)
    Code: SB00028225
    Art. Nr.: IN00028SRTG
    Price:
    From €49.13
    In Stock: 0 pāris
    Visma Quote
  12. IN.00.177 pair of handles, spindle 8mm, without roses, gold PVD (TG)
    IN.00.177 pair of handles, spindle 8mm, without roses, gold PVD (TG)
    Code: SB00028231
    Art. Nr.: IN00177SRTG
    Price:
    From €65.34
    In Stock: 0 pāris
    Visma Quote

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Mifare Classic 1K 13.56 Mhz card for electronic access systems
    Mifare Classic 1K 13.56 Mhz card for electronic access systems
    Code: SB00026281
    Art. Nr.: IN27153B
    Price:
    From €0.97
    In Stock: 55 pc.
  2. Mifare Classic 1K 13.56Mhz fob for electronic access systems
    Mifare Classic 1K 13.56Mhz fob for electronic access systems
    Code: SB00026282
    Art. Nr.: IN27161
    Price:
    From €2.78
    In Stock: 68 pc.
  3. VOYAGER RFID card reader, black
    VOYAGER RFID card reader, black
    Code: SB00026411
    Art. Nr.: IN27558
    Price:
    From €50.40
    In Stock: 2 pc.
    Visma Quote
  4. VOYAGER gateway 522, WiFi, black
    VOYAGER gateway 522, WiFi, black
    Code: SB00025856
    Art. Nr.: IN27522WIFIB
    Price:
    From €149.13
    In Stock: 9 pc.
  5. VOYAGER gateway 522, WiFi, white
    VOYAGER gateway 522, WiFi, white
    Code: SB00026413
    Art. Nr.: IN27522WIFIW
    Price:
    From €149.13
    In Stock: 10 pc.
  6. VOYAGER gateway 524, WiFi, black
    VOYAGER gateway 524, WiFi, black
    Code: SB00026412
    Art. Nr.: IN27524WIFIB
    Price:
    From €97.71
    In Stock: 5 pc.
  7. VOYAGER gateway 524, WiFi, white
    VOYAGER gateway 524, WiFi, white
    Code: SB00026261
    Art. Nr.: IN27524WIFIW
    Price:
    From €97.71
    In Stock: 13 pc.
  8. Roktura ass JNF Voyager rokturu garnitūrām, 150mm
    Roktura ass JNF Voyager rokturu garnitūrām, 150mm
    Code: SB00026452
    Art. Nr.: IN08AQPR
    Price:
    From €19.36
    In Stock: 19 pc.
Manufacturer JNF
material Nerūsējošais tērauds + PVD
leaf material for wooden and metal doors
purpose for interior doors / for exterior doors
access type app / card / PIN code / fingerprint
compatibility standard German (DIN)
door thickness 35-60 mm
electricity supply type 3 x AAA batteries (LR03-1.5)
Access type Mifare 13.56MHZ
installation type to door leaf
backplate/rose shape square
Bluetooth 4.0
fingerprint memory maks. 900
backup power supply USB-C port for external power supply
PIN code memory max 900
number of magnetic cards max 100
backplate/rose size 320 x 48 mm
backplate/rose thickness 21 mm
handle square spindle size 8 mm
operational temperature range from -20 °C to +55 °C
Series VOYAGER
limit of relative humidity 20-80%
dynamic consumption 300 mA
static consumption 12 µA
handle rotation 45º
