Floor spring for heavy doors GEZE TS 550 NV

Product code
MB00001182
GEZE
main product photo
All prices include VAT
From €458.35
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Questions and answers
Ražotāju BIM dati
Floor spring for heavy doors GEZE TS 550 NV
Manufacturer - GEZE (Germany)
    • suitable for single leaf single-action or swing doors
    • max leaf width: 1400 mm
    • max leaf weight: 300 kg
    • suitable for both left and right hand doors
    • certified according to EN 1154
    • adjustable closing speed
    • latching action adjustable via valve
    • closing force - size 3 to 6 according to EN 1154 - can be adjusted from above
    • built-in fixed opening buffer
    • integrated delayed closing action
    • safety valve protects against intentional overload
    • thermo-control valves
    • closing effect from 170º
    • continuous hold-open mechanism with opening angle from 80° to 165º
    • hold-open function can be switched on and off
    • length: 342 mm, height: 54 mm
    • overall depth: 82 mm
    • optional variants: with extended pivot up to 50 mm (increments of 5 mm)
    • finish:
      • profile - silver tone
      • cover plate - stainless steel / brass / dark bronze tone
      • accessories - stainless steel tone / dark bronze tone / EV1 / matt aluminium

Assembly instructions
Door closer TS 550 NV assembly instructions Door closer TS 550 NV assembly instructions
Sizing of door closer TS 550 NV Sizing of door closer TS 550 NV
Cover plate size for door closer TS 550 NV nosegplāksnes izmēri Cover plate size for door closer TS 550 NV nosegplāksnes izmēri

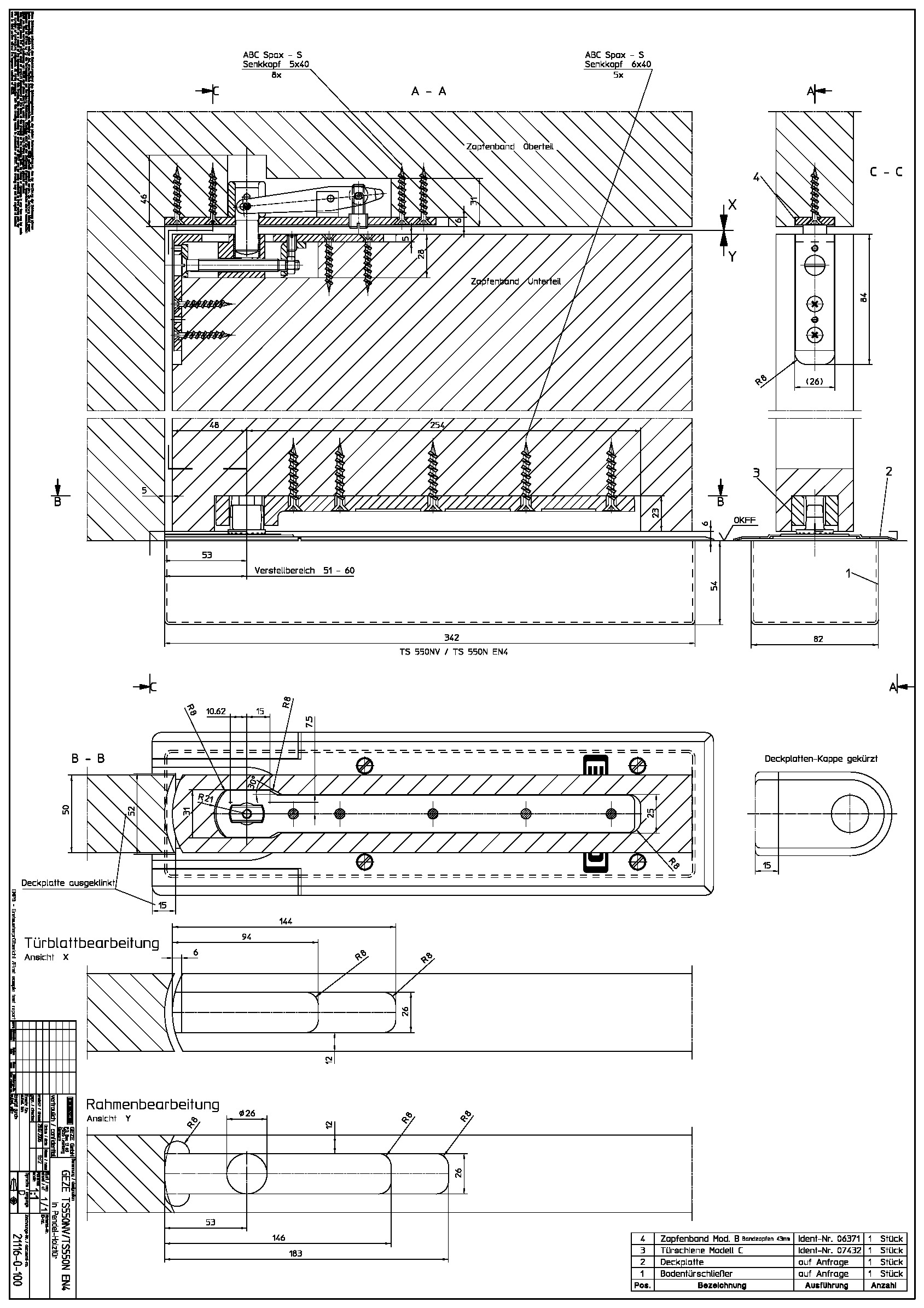

Door closer TS 550 installation into wooden swing doors (DE) Door closer TS 550 installation into wooden swing doors (DE)
Door closer TS 550 sizing Door closer TS 550 sizing
Door closer TS 550 installation in standard single-action and swing doors Door closer TS 550 installation in standard single-action and swing doors
Door closer TS 550 NV installation into rebated doors with guide rail Door closer TS 550 NV installation into rebated doors with guide rail
Door closer TS 550 NV installation into rebated doors with guide rail - concealed Door closer TS 550 NV installation into rebated doors with guide rail - concealed
Door closer TS 550 NV tech. details for glass doors - lower corner hinge (DE/EN) Door closer TS 550 NV tech. details for glass doors - lower corner hinge (DE/EN)
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. TS 550 NV floor spring
    TS 550 NV floor spring
    Code: SB00004328
    Art. Nr.: 123950
    Price:
    From €458.35
    In Stock: 0 pc.
    Visma Quote

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. TS550 NV grīdas aizvērēja nosegvāks, nerūs.tērauds
    TS550 NV grīdas aizvērēja nosegvāks, nerūs.tērauds
    Code: SB00004345
    Art. Nr.: 125888
    Price:
    From €31.46
    In Stock: 0 pc.
    Visma Quote
  2. TS500 N svira aizvērēja savienošanai ar vērtni
    TS500 N svira aizvērēja savienošanai ar vērtni
    Code: SB00004605
    Art. Nr.: 007432
    Price:
    From €39.80
    In Stock: 0 pc.
    Visma Quote
  3. TS500 N augšējā ass eņģe
    TS500 N augšējā ass eņģe
    Code: SB00004097
    Art. Nr.: 006666
    Price:
    From €90.05
    In Stock: 0 pc.
    Visma Quote
Manufacturer GEZE
Series TS 500
closer type floor springs
application for hinged and swing doors
door direction universal use for DIN right and left hand doors
installation type built-in, concealed
fire safety not suitable for fire safety doors
delayed closing function integrated, adjustable
closing speed adjustable
back check no
latching action adjustable with valve
doorstop no
hold open yes, integrated
closing force adjustment position from above
closing force adjustment continuous control with valve
maximum opening angle 170°
body dimensions 342 x 54 x 82 mm
maximum single leaf width up to 1400 mm
leaf maximum weight 300 kg
