Door closer GEZE TS 5000 with guide rail T-STOP TS 5000/3000 - ARRANGEMENT 2

Product code
TS5000-V-TS-SH2
From €208.73
ARRANGEMENT 2 - Installation door push side, door closer body on the frame.

Mounting accessories and auxiliary tools are listed in the section 'Additional products' of our Online shop.
Reset selection
Door closer body without guide rail GEZE TS 5000   €150.04
Guide rail T-STOP TS 5000/3000   €58.69

Price as configured €208.73

kit
The selected product is currently out of stock.

Door closer GEZE TS 5000 with guide rail T-STOP TS 5000/3000
ARRANGEMENT 2

Manufacturer - GEZE (Germany)


  • top-mounted door closer body with guide rail T-STOP TS 5000/3000
  • suitable for interior and exterior doors with single leaf
  • door leaf width up to 1400 mm
  • installed door push side - closer body screwed onto frame
  • suitable for both left and right hand doors opening either inwards or outwards
  • front adjusted thermo-constant closing speed
  • front adjusted hydraulic latching action speed, thermo-constant closing speed and soft close mechanism
  • adjustable closing force - sizes 2 - 6 according to EN 1154 A
    • size '2'- for leaf width up to 850 mm
    • size '3'- for leaf width up to 950 mm
    • size '4'- for leaf width up to 1100 mm
    • size '5'- for leaf width up to 1250 mm
    • size '6'- for leaf width up to 1400 mm
  • max opening angle: 180º
  • certified for use in fire and smoke safety doors on the condition that closing size is set on 3 or higher
  • closer body size: 287 x 47 x 60 mm
  • colours: silver, white RAL9016, dark brown, black RAL9005

Types of guide rails

Standard guide rail
  • with click-in controller
  • not suitable for heavy impact
  • opening restrictor available separately
  • size (length x width x height): 448.5 x 30.5 x 20.5 mm


T-STOP guide rail

  • extra durable guide rail with screwed-in, non-removable controller
  • resistant against lateral wind pressure against exterior doors
  • suitable for heavy usage indoors
  • integrated opening restrictor
  • size (length x width x height): 452.5 x 33 x 30 mm



Both guide rails have identical fastening with 2 screws and identical mounting points against the door closer profile. Thus, the rails are easily interchangeable without changing the fastening.



Auxiliary tools

  • Closer body mounting plate 287 x 60 x 5 mm
    Closer can be secured on the surface in more places other than the 3 screws on the closer's body.
silver tone
Product code:SB00004574
white RAL9016
Product code:SB00004598
dark brown
Product code:SB00004578
black RAL9005
Product code:SB00004159


  • Guide rail mounting plate 40 x 448.5 mm
    Guide rail can be installed further away from the edge of frame or leaf.
silver tone
Product code: SB00004336
white RAL9016
Product code: SB00004337
dark brown
Product code: SB00004339
black RAL9005
Product code: SB00004338


  • Integrated mechanical Hold-Open device
    Holds the door in an open position. Only for use in doors without fire safety requirements!
    Product code: SB00004600


  • Guide rail controller
    Service component - for replacement of a broken plastic controller.
    Product code: SB00004258


All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

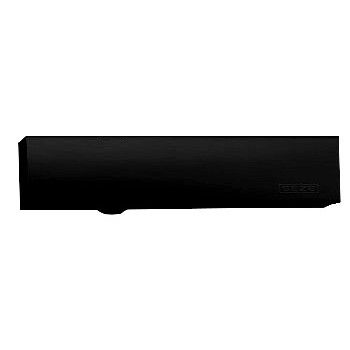

  1. Door closer body TS-5000 without guide rail, black RAL9005
    Door closer body TS-5000 without guide rail, black RAL9005
    Code: SB00004148
    Art. Nr.: 076489
    Price:
    From €150.04
    In Stock: 2 pc.

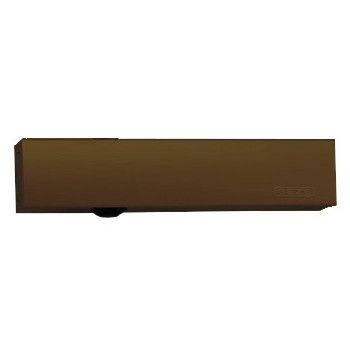

  2. Door closer body TS-5000 without guide rail, dark brown
    Door closer body TS-5000 without guide rail, dark brown
    Code: SB00004146
    Art. Nr.: 027334
    Price:
    From €150.04
    In Stock: 0 pc.

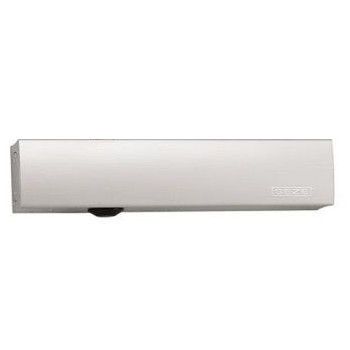

  3. Door closer body TS-5000 without guide rail, silver
    Door closer body TS-5000 without guide rail, silver
    Code: SB00004546
    Art. Nr.: 027333
    Price:
    From €150.04
    In Stock: 7 pc.

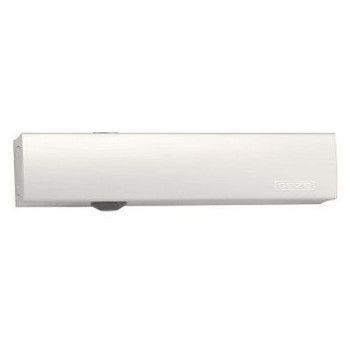

  4. Door closer body TS-5000 without guide rail, white
    Door closer body TS-5000 without guide rail, white
    Code: SB00004147
    Art. Nr.: 027335
    Price:
    From €150.04
    In Stock: 3 pc.
  5. Door closer body TS-5000 without guide rail, RAL colour - specify in comment
    Door closer body TS-5000 without guide rail, RAL colour - specify in comment
    Code: SB00004151
    Art. Nr.: 027352RAL
    Price:
    From €150.04
    In Stock: 0 pc.
  6. Guide rail for door closer T-STOP TS 5000/3000, white RAL9016
    Guide rail for door closer T-STOP TS 5000/3000, white RAL9016
    Code: SB00021362
    Art. Nr.: 108481
    Price:
    From €58.69
    In Stock: 1 pc.
  7. Guide rail for door closer T-STOP TS 5000/3000, black RAL9005
    Guide rail for door closer T-STOP TS 5000/3000, black RAL9005
    Code: SB00022175
    Art. Nr.: 102365 RAL 9005
    Price:
    From €58.69
    In Stock: 0 pc.
  8. Guide rail for door closer T-STOP TS 5000/3000, silver tone
    Guide rail for door closer T-STOP TS 5000/3000, silver tone
    Code: SB00004215
    Art. Nr.: 102363
    Price:
    From €58.69
    In Stock: 4 pc.
  9. Guide rail for door closer T-STOP TS 5000/3000, dark brown
    Guide rail for door closer T-STOP TS 5000/3000, dark brown
    Code: SB00022173
    Art. Nr.: 102365 Dark Bronze
    Price:
    From €58.69
    In Stock: 0 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Mounting plate for door closer 4000/5000, silver
    Mounting plate for door closer 4000/5000, silver
    Code: SB00004574
    Art. Nr.: 049185
    Price:
    From €4.36
    In Stock: 70 pc.
  2. Mounting plate for door closer 4000/5000, white
    Mounting plate for door closer 4000/5000, white
    Code: SB00004598
    Art. Nr.: 068627
    Price:
    From €6.96
    In Stock: 128 pc.
  3. Mounting plate for door closer 4000/5000, dark brown
    Mounting plate for door closer 4000/5000, dark brown
    Code: SB00004578
    Art. Nr.: 052351
    Price:
    From €6.96
    In Stock: 13 pc.
  4. Mounting plate for door closer TS 4000/5000, black RAL9005
    Mounting plate for door closer TS 4000/5000, black RAL9005
    Code: SB00004159
    Art. Nr.: 076508
    Price:
    From €7.74
    In Stock: 1 pc.
  5. Mounting plate for BG guide rail 3000/5000, silver
    Mounting plate for BG guide rail 3000/5000, silver
    Code: SB00004336
    Art. Nr.: 124683
    Price:
    From €25.41
    In Stock: 2 pc.
  6. Mounting plate for BG guide rail, RAL9016
    Mounting plate for BG guide rail, RAL9016
    Code: SB00004337
    Art. Nr.: 124684 RAL9016
    Price:
    From €29.04
    In Stock: 2 pc.
  7. Mounting plate for guide rail BG, dark brown
    Mounting plate for guide rail BG, dark brown
    Code: SB00004339
    Art. Nr.: 124684/BR
    Price:
    From €29.04
    In Stock: 2 pc.
  8. Mounting plate for guide rail BG, black RAL9005
    Mounting plate for guide rail BG, black RAL9005
    Code: SB00004338
    Art. Nr.: 124684 RAL9005
    Price:
    From €29.04
    In Stock: 0 pc.
  9. Guide rail locking unit for GEZE standard door closers - compatible with T-stop guide rail / Boxer 20.7 mm guide rail
    Guide rail locking unit for GEZE standard door closers - compatible with T-stop guide rail / Boxer 20.7 mm guide rail
    Code: SB00004600
    Art. Nr.: 071924
    Price:
    From €15.73
    In Stock: 10 pc.
  10. GEZE guide rail controller
    GEZE guide rail controller
    Code: SB00004258
    Art. Nr.: 109507
    Price:
    From €5.38
    In Stock: 0 pc.
Manufacturer GEZE
application for hinged doors
closing force size 2-6 according to EN 1154
back check hydraulically adjustable
maximum single leaf width up to 1400 mm
latching action adjustable with valve
doorstop built-in
closing force adjustment position from front
closing force adjustment continuous control with valve
closer operating type hydraulic closer
closer type with a track
installation type opposite hinge side / profile on frame
fire safety suitable for fire safety doors
Vērtņu skaits 1 vērtne
Series TS 5000
hold open built-in
