Panic lock set for WOODEN double doors BMH PTVA 11 "E"

Product code
BMH-PTVA11-E-K
From €578.97
Reset selection
Door lock BMH 6113 PZW E for active leaf in double doors   €232.51
Flush bolt lock for inactive leaf in wooden doors BMH 6130   €211.57
1141 Top switch lock 24x54mm, galvanised   €44.56
Code: SB00013471
Out of stock. Estimated delivery time: 6 weeks.
BMH 1109 spring-loaded shoot bolt   €36.76
1109 spring-loaded shoot bolt Ø10/1000mm, galvanised   €36.76
Code: SB00013455
Out of stock. Estimated delivery time: 6 weeks.
1148 Upper strike plate for wooden doors, stainless steel   €10.25
Code: SB00013475
Out of stock. Estimated delivery time: 6 weeks.
1144 Bottom shoot bolt guide Ø10,5/60x20mm, galvanised   €6.56
Code: SB00013474
Out of stock. Estimated delivery time: 6 weeks.

Price as configured €578.97

kit
The selected product is currently out of stock.

Panic lock set for WOODEN double doors BMH PTVA 11 (function E)

Manufacturer - BMH (Germany)

  • lock set with shoot bolts for wooden double doors
  • with automated locking for inactive leaf
  • emergency exit function E
  • complies with EN 1125 requirements for panic doors
  • suitable for fire safety doors


Inactive leaf function
The passive and active door leaves open simultaneously when the panic bar on the passive door leaf is pressed. Shooting bolts in the passive leaf lock automatically with the top switch lock, thus ensuring the door is locked automatically.

Active leaf function
From inside:
From the inside, the door can be locked and unlocked with a key. A locked bolt can be retracted together with the latch by pressing the panic bar.
From outside:
On the outside, the door is fitted with an inactive door knob. From the outside, the active leaf can be locked and unlocked with a key. When unlocked, the latch is retractable with the key


SET

Lock BMH 6113 PZW for active leaf
  • complies with EN 1125 requirements for panic doors
  • locking function E
  • PZ keyhole, single-turn latch
  • galvanised, closed lock case
  • 9 mm handle hole (non-split)
  • bolt and latch: nickel-plated steel
  • centre distance: 72 mm
  • standard spindle depth D: 65 mm
  • other options (on individual order) for spindle depth D: 65 / 80 / 100 mm
  • rounded stainless steel face plate: 235 x 24 mm
  • lock may be used only with suitable and certified panic bars and accessories

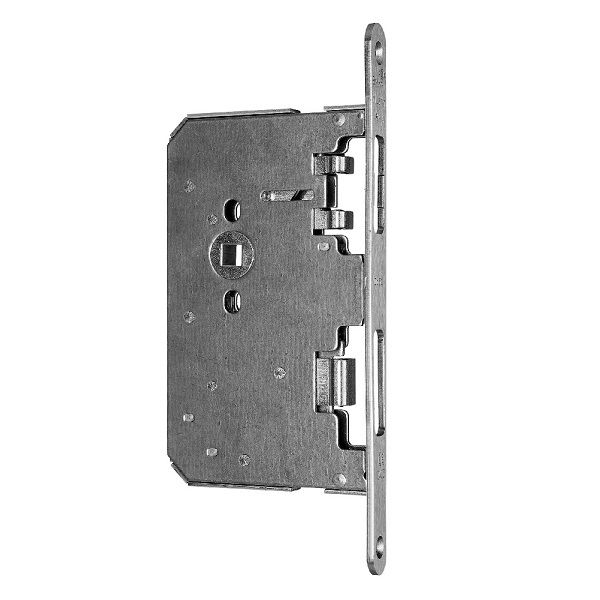

Lock BMH 6130 for passive leaf
  • complies with EN 1125 requirements for panic doors and fire safety
  • galvanised, closed lock case
  • 9 mm split handle hole
  • standard spindle depth D: 65 mm
  • other options for spindle depth D: 65 / 80 / 100 / 125 mm
  • rounded stainless steel face plate: 235 x 24 mm
  • standard size X: 30 mm
  • rounded face plate, lipped 60 mm

Top switch lock BMH 1141
  • galvanised lock case
  • plastic latch
  • galvanised face plate 54 x 20 mm
  • complies with EN 1125 requirements for panic doors
Shoot bolts BMH 1109
  • diameter: 10 mm
  • thread: M6
  • length: 1000 / 1500 / 2000 mm

Strike plate BMH 1148 for top shoot bolt
  • size 100 x 20 mm
  • thickness: 3 mm
  • shape: rounded
  • rectangular lip: 60 mm
  • material: stainless steel

Floor bushing BMH 1192 for shoot bolts
  • adjustable
  • interior diameter of the bushing: 12 mm
  • oval backplate: 80 x 50 mm, thickness: 1.6 mm
  • material: stainless steel

Bottom shoot bolt guide BMH 1144
  • interior diameter of the guide: 10.5 mm
  • exterior diameter: 15 mm
  • backplate size: 60 x 20 mm, thickness: 3 mm
  • shape: rounded
  • material: galvanised steel
  • noise-reducing plastic bushing

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Lock for active leaf in emergency exit doors BMH 6113 PZW 65/72-24 "E", st. steel, LEFT
    Lock for active leaf in emergency exit doors BMH 6113 PZW 65/72-24 "E", st. steel, LEFT
    Code: SB00013526
    Art. Nr.: 6113.000003
    Price:
    From €232.51
    In Stock: 0 pc.
  2. Lock for active leaf in emergency exit doors BMH 6113 PZW 65/72-24 "E", st. steel, RIGHT
    Lock for active leaf in emergency exit doors BMH 6113 PZW 65/72-24 "E", st. steel, RIGHT
    Code: SB00013527
    Art. Nr.: 6113.000004
    Price:
    From €232.51
    In Stock: 0 pc.
  3. Flush bolt lock for inactive leaf in wooden doors BMH 6130 65/24, st. steel, LEFT
    Flush bolt lock for inactive leaf in wooden doors BMH 6130 65/24, st. steel, LEFT
    Code: SB00013533
    Art. Nr.: 6130.000031
    Price:
    From €211.57
    In Stock: 0 pc.
  4. Flush bolt lock for inactive leaf in wooden doors BMH 6130 65/24, st. steel, RIGHT
    Flush bolt lock for inactive leaf in wooden doors BMH 6130 65/24, st. steel, RIGHT
    Code: SB00013534
    Art. Nr.: 6130.000032
    Price:
    From €211.57
    In Stock: 0 pc.
  5. 1141 Top switch lock 24x54mm, galvanised
    1141 Top switch lock 24x54mm, galvanised
    Code: SB00013471
    Art. Nr.: 1141.000012
    Price:
    From €44.56
    In Stock: 0 pc.
  6. 1109 spring-loaded shoot bolt Ø10/1000mm, galvanised
    1109 spring-loaded shoot bolt Ø10/1000mm, galvanised
    Code: SB00013455
    Art. Nr.: 1109.000004
    Price:
    From €36.76
    In Stock: 0 pc.
  7. 1109 spring-loaded shoot bolt Ø10/1500mm, galvanised
    1109 spring-loaded shoot bolt Ø10/1500mm, galvanised
    Code: SB00013456
    Art. Nr.: 1109.000005
    Price:
    From €38.82
    In Stock: 0 pc.
  8. 1109 spring-loaded shoot bolt Ø10/1000mm, galvanised
    1109 spring-loaded shoot bolt Ø10/1000mm, galvanised
    Code: SB00013455
    Art. Nr.: 1109.000004
    Price:
    From €36.76
    In Stock: 0 pc.
  9. 1148 Upper strike plate for wooden doors, stainless steel
    1148 Upper strike plate for wooden doors, stainless steel
    Code: SB00013475
    Art. Nr.: 1148.000001
    Price:
    From €10.25
    In Stock: 0 pc.
  10. 1144 Bottom shoot bolt guide Ø10,5/60x20mm, galvanised
    1144 Bottom shoot bolt guide Ø10,5/60x20mm, galvanised
    Code: SB00013474
    Art. Nr.: 1144.000001
    Price:
    From €6.56
    In Stock: 0 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Floor bushing 8028-4V/31, brightly galvanized
    Floor bushing 8028-4V/31, brightly galvanized
    Code: SB00003760
    Art. Nr.: 3473961
    Price:
    From €11.29
    In Stock: 34 pc.
  2. Floor bushing 11 mm
    Floor bushing 11 mm
    Code: SB00014151
    Art. Nr.: IN17400
    Price:
    From €6.55
    In Stock: 5 pc.
  3. Rod guide M10, brass
    Rod guide M10, brass
    Code: SB00016040
    Art. Nr.: 7297 0000 40
    Price:
    From €3.06
    In Stock: 22 pc.
  4. 1192 grīdas bukse slēgstieņiem Ø12/80x50mm, nerūs.tērauds
    1192 grīdas bukse slēgstieņiem Ø12/80x50mm, nerūs.tērauds
    Code: SB00013481
    Art. Nr.: 1192.000001
    Price:
    From €46.54
    In Stock: 0 pc.
  5. Strike plate 5853 for flush bolt 10mm
    Strike plate 5853 for flush bolt 10mm
    Code: SB00016036
    Art. Nr.: 5853 0100 33
    Price:
    From €1.40
    In Stock: 27 pc.
bolt projection 11 mm
centre distance PZ 72 mm
class as per EN 12209 (DIN 18251) class 3 according to EN 122209 / DIN 18251
compatibility standard German (DIN)
door direction when ordering please indicate door swing direction
evacuation function E
face plate width 24 mm
face plate finish stainless steel
face plate length 235 mm
face plate shape rounded
fire safety complies with EN standard fire safety requirements
handle square spindle size 9 mm
installation type mortise
latch key-retractable
latch material nickel-coated steel
leaf material for wooden doors
load capacity high
lock bolt single turn
lock bolt material nickel-coated steel
lock case galvanised closed
lock operation mechanical
lock type single-point lock for hinged doors
locking function PZ - with profile cylinder hole
Manufacturer BMH
possible spindle depth 80 / 100 mm (on individual order)
purpose for interior doors / for exterior doors
set includes: lock for active leaf, lock for passive leaf, switch lock
set includes: shoot bolts, strike plates for shoot bolts, floor bushing, shoot bolt guide
sound insulation no
spindle depth 65 mm
suitable for emergency exits complies with 1125 - panic door equipment
