Regulējamas durvju eņģes COLUMBUS M

Product code
MB00001665-M
All prices include VAT
From €22.69
From €22.69
Only %1 left
Reset selection
The selected product is currently out of stock.

Regulējamas durvju eņģes COLUMBUS

Ražotājs  -SIMONSWERK (Vācija)

  • regulējamas 3 dimensijās: horizontāli +/- 2 mm, vertikāli +/- 3 mm un dziļumā +/- 4 mm
  • regulēšana veicama ar iekšējām regulēšanas skrūvēm
  • nav nepieciešama īpaša kopšana
  • drošības tapa (MSTS) durvīm, kas veras uz āru
  • maksimālā slodze: 70 kg
  • rullīša diametrs: 13.0 mm
  • eņģes kopējais augstums: 101.5 mm
  • eņģes kopējais platums: 93.5 mm
  • materiāla biezums: 2.5 mm
  • uztverošās daļas kopējais biezums: 14.0 mm
  • universāls pielietojums DIN labajām un kreisajām durvīm
  • materiāls  -alumīnijs krāsots melnā (RAL9005) krāsā
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

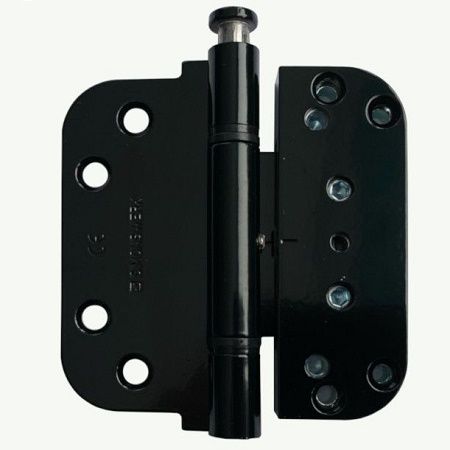

  1. COLUMBUS 3D hinge with protection against prying, alum. black  RAL9005
    COLUMBUS 3D hinge with protection against prying, alum. black RAL9005
    Code: SB00020976
    Art. Nr.: 5 311113 0 07308
    Price:
    From €22.69
    In Stock: 0 pc.
width 93.5 mm
adjustment type with internal adjusting screws
adjustment adjustable
anti-corrosion resistance certified according to EN 1935 - depending on finish
anti-intruder protection yes, integrated safety pin
base assortment No
class as per EN 1935 class 3
door construction for non-rebated doors
door direction universal use for DIN right and left hand doors
fastening elements must be ordered separately
fire safety not suitable for fire and smoke safety doors
groove for leaf seal no
height 101.5 mm
hinge shape rounded
hinge type exterior door hinge
knuckle diameter 13 mm
leaf maximum weight 70 kg
leaf material wood
load capacity middle
maintenance not required (self-lubricating bearings)
Manufacturer SIMONSWERK
material thickness 2.5 mm
material coloured steel
spindle diameter 8.1 mm
suitable for aluminium frames suitable
suitable for industrial frames suitable
suitable for steel frames suitable
suitable for timber frames suitable
thickness uztverošās daļas kopējais biezums: 14.0 mm
