Door knob set RIVA-136 K7 for fireproof emergency door
Product code
MB00001557
All prices include VAT
Out of stock
Only %1 left

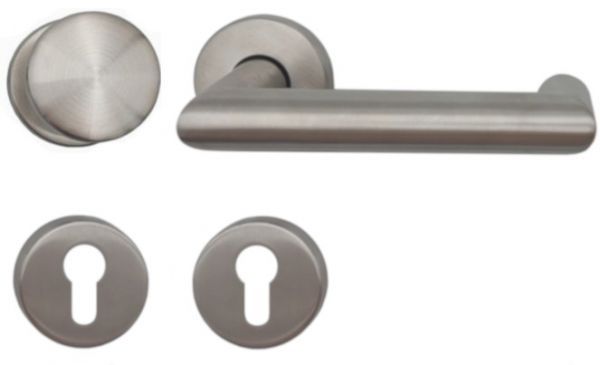

Stainless steel handle with door knob for fireproof emergency doors RIVA-136 FS
Manufacturer - DIECKMANN (Germany)
Manufacturer - DIECKMANN (Germany)
-
- complies with EN 179 standard for emergency door equipment combined with certified locks
- steel/plastic sub-construction with click-on rose and supporting lugs Ø 8 mm
- corresponds to grade 4 in use and durability according to EN 1906
- concealed screws M5 with unscrewing protection
- automatic locking and release mechanism guarantees easy installation even in heavy doors
- suitable for both left and right hand doors
- with fixed joint in self-lubricating bearing
- certified for use in fireproof doors according to EN 1906
- door thickness: 40-65 mm (WC 40-59 mm)
- handle length: 144 mm
- handle diameter: 22 mm
- spindle square: 9 mm
- rose diameter: 55 mm
- material:
-
-
- stainless steel
-
| Manufacturer | DIECKMANN |
|---|---|
| Series | RIVA |
| material | stainless steel |
| leaf material | for wooden and metal doors |
| purpose | for interior doors / for exterior doors |
| construction | lever handle / inactive door knob |
| backplate type | split roses |
| door direction | universal use for DIN right and left hand doors |
| load capacity | high |
| class as per EN 1906 | class 4 |
| suitable for emergency exits | complies with 179 - emergency door equipment |
| fire safety | fire safety certified according to EN1906 |
| Compatibility standard | German (DIN) |
| handle construction | with fixed joint in self-lubricating bearing |
| material: sub-construction | steel |
| Handle return spring integrated in the rose | No |
| door thickness | 40-65 mm (WC 40-59 mm) |
| locking function | PZ - with profile cylinder hole |
| handle length | 130 mm |
| handle diameter | 22 mm |
| distance from leaf surface to outer edge of handle | 67 mm |
| handle square spindle size | 9 mm |
| backplate/rose shape | round |
| backplate/rose size | Ø55 mm |
| backplate/rose thickness | 8 mm |
| installation type | screw on |
| size | 8 x 140 mm |
| fastening type | concealed screws, with unscrewing protection |
| door knob size | Ø50 mm |
| door knob shape | round |
| fastening centre distance | 38 mm |
| centring lug diameter | 8 mm |
| fastening elements | included in set |
