SI-BUS analogue access control system with BUILT-IN keypad for wooden doors

Product code
SI-BUS-KO-IA-AN
From €1,071.08
Reset selection
SI-BUS keypad with casing and cable 1m   €767.73
Power transformer to 230 V - 24 V DC   €109.36
Code: SB00004025
In Stock. Available: 2 gab.

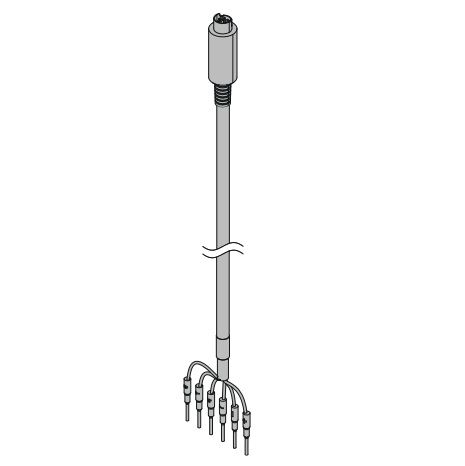

Cable ZEM FZ-KA-0F-4.0, Type F, with a plug connection, length 4 m, sash side, to combine with a type B cable   €78.14
Code: SB00003573
In Stock. Available: 2 gab.
Cable ZEM FZ-KA, Type B, with a plug connection, length 4 m, hinge side, to combine with a type F cable   €78.14
Code: SB00003456
In Stock. Available: 2 gab.
Cable connector EA281   €37.70
Code: SB00009274
Out of stock. Estimated delivery time: 6 weeks.

Price as configured €1,071.08

kit
The selected product is currently out of stock.

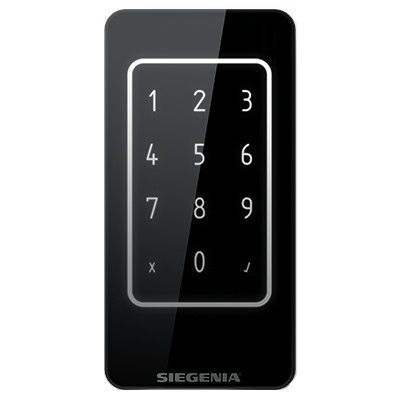

SI-BUS access control for wooden doors with keypad built into leaf and analogue connection system

Manufacturer - SIEGENIA (Germany)

  • digital access control with keypad built into door leaf
  • combines clever comfort functions with elegant appearance and easy operation
  • with WiFi and Bluetooth chip as standard
  • SI-BUS interface enables direct communication with drive without additional control unit
  • all options open for modern and smart living concepts and for future system extensions
  • SI-BUS is secured with a 128 Bit AES encryption
  • sensor type: keypad
  • possible to control via SIEGENIA Comfort App
  • online remote access, timer and user administration
  • administration of up to 200 users and 800 features
  • one-time user or interval user function available
  • colour-adjustable LED lighting for individual tone adaptation to entrance door
  • adjustable brightness: automatically via light sensor or manually
  • power supply unit: external (alternative: SI-BUS built-in power unit for door frame, 115/230 V-24 VAC-24DC/0.9AMP, with SI-BS adapter included)
  • wiring: analogue

Technical data

  • operating voltage: 9 V DC - 30 V C
  • WiFi: 2.4 GHz / 802.11b/g/n/e/i
  • Bluetooth: V4.2 BR/EDR and BLE
  • encryption: AES 128 Bit / WPA2
  • lighting: 6 x RGB LED (multi-coloured)
  • adjustable brightness: automatically via light sensor or manually
  • SI-BUS interface
  • operational temperature: from -25 C to +70 C
  • protection class: IP54 front side
  • power consumption: 3.24 W

Set




CATALOGUES AND INSTRUCTIONS



Mobile app SIEGENIA COMFORT
  • universal app for remote control via smartphone or tablet of all SIEGENIA smart solutions for windows, doors and ventilation devices
  • quick and flexible installation at any time
  • simple integration into home network or direct connection to WLAN module in stand-alone mode
  • convenient and intuitive operation; virtual assistant support available
  • smart automatic and timer functions
  • custom setting options
  • simple device and sensor coupling
  • status updates and remote control
  • free download on Google Play and App Store
  • compatible with iOS 8.0 and newer / Android 5.0 and newer OS
  • secure SSL encryption

VIDEO instruction for app setup and use (in German):

https://www.siegenia.com/en/service/portal#/downloads/165488/165497?filter=videos

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. SI-BUS keypad, built into door leaf, black
    SI-BUS keypad, built into door leaf, black
    Code: SB00004047
    Art. Nr.: 3513138
    [8.2] 3513110 + [9.2] 3513114 + [1] 3513124
    Price:
    From €767.73
    In Stock: 2 pc.
  2. SI-BUS keypad, built into door leaf, silver tone
    SI-BUS keypad, built into door leaf, silver tone
    Code: SB00004049
    Art. Nr.: 3513141
    [8.2] 3513110 + [9.2] 3513114 + [1] 3513124
    Price:
    From €767.73
    In Stock: 0 pc.
  3. Power transformer to 230 V - 24 V DC
    Power transformer to 230 V - 24 V DC
    Code: SB00004025
    Art. Nr.: 3509884
    [4.1] 3509884
    Price:
    From €109.36
    In Stock: 2 pc.
  4. Cable ZEM FZ-KA-0F-4.0, Type F, with a plug connection, length 4 m, sash side, to combine with a type B cable
    Cable ZEM FZ-KA-0F-4.0, Type F, with a plug connection, length 4 m, sash side, to combine with a type B cable
    Code: SB00003573
    Art. Nr.: 3381527
    Price:
    From €78.14
    In Stock: 2 pc.
  5. Cable ZEM FZ-KA, Type B, with a plug connection, length 4 m, hinge side, to combine with a type F cable
    Cable ZEM FZ-KA, Type B, with a plug connection, length 4 m, hinge side, to combine with a type F cable
    Code: SB00003456
    Art. Nr.: 3308723
    Price:
    From €78.14
    In Stock: 2 pc.
  6. Cable connector EA281
    Cable connector EA281
    Code: SB00009274
    Art. Nr.: EA281
    Price:
    From €37.70
    In Stock: 0 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. SI-BUS power supply unit built into frame, series A, 115/230 V-24 VAC-24DC/0.9AMP, face plate 24 m
    SI-BUS power supply unit built into frame, series A, 115/230 V-24 VAC-24DC/0.9AMP, face plate 24 m
    Code: SB00004050
    Art. Nr.: 3514588
    Price:
    From €348.41
    In Stock: 0 pc.
Wi-Fi 2.4 GHz / 802.11b/g/n/e/i
access type keypad
adjustment type adjustable brightness: automatically or manually
Bluetooth V4.2 BR/EDR and BLE
body dimensions 46 x 92 mm
bundling options AS-3500, AS-3600, Genius, drive A-Öffn
colour / finish black / silver
connection type analogue
corner radius R5
Datu pārraide Wi-Fi / Bluetooth
device control via mobile app SIEGENIA Comfort App
installation depth 14.7 mm
installation type integrated into leaf
Interfeiss SI-BUS
IP rating IP54
Kodēšana AES 128 Bit / WPA2
leaf material wood
lighting 6 x RGB LED (multi-coloured)
maximum number of users for one lock 200
Manufacturer SIEGENIA
nominal current consumption 3.24 W
operational temperature range from -25 C to +70 C
power supply external
