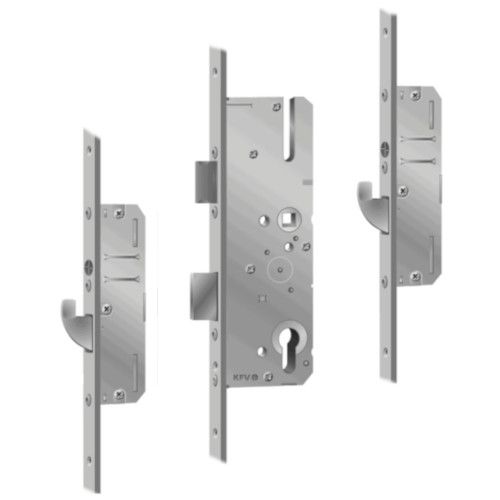

Automatic multi-point lock KFV AS-3500

Product code
MB00000981
KFV View catalogue of manufacturer
main product photo
All prices include VAT
From €109.46 €121.62
From €109.46 €121.62
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Questions and answers
Durvju vērtņu virzieni saskaņā ar DIN 107
Slēgšanas veidi. Slēdzenes un rokturu garnitūras.
Slēdzenes uzbūve un svarīgākie parametri.
Durvju furnitūras kopšanas norādījumi.
Durvju profilu veidi
Automatic multipoint lock KFV AS-3500
Manufacturer - KFV

    • motor lock, PZ
    • automatic security with 2 automatic locking hooks, which lock from the bottom upwards
    • can be fitted with A-Öffner motorised unlocking system, daytime unlocking mechanism and door stopper
    • comes equipped with integrated soft-lock latches as standard
    • in an open position the hook bolts are sunk into the auxiliary lock case, flush with the face plate edge to form a smooth surface design
    • automated activation of locking hooks
    • automatic magnetic trigger compensates for any air-gap tolerance
    • hooks lock in the upwards position ensuring that the lock function is correct even in doors that tend to warp, as well as increasing the security level of the door and impeding warping
    • high-quality stainless steel face plate
    • universal use for both right and left hand opening directions, by switching the main lock latch
    • large range of mounting tolerance
    • uniform routing templates for sashes and frames – can be used with Q-adjustment strike plates
    • modular structure reduces warehouse and logistic costs
    • burglary resistance up to security grade RC3
    • can be equipped to operate with various access control systems
    • complies with VDS highest security grade C requirements
    • locking hooks are activated with patented magnets as soon as the door closes, regardless of distance from rebate
    • rebate distance is adjusted automatically with magnets; each AS-3500 requires 2 magnets (must be purchased separately) compatible with Q-adjustment module
    • locking hook projection: 20 mm
    • leaf height: 1600 - 2400 mm
    • large range of mounting tolerance (distance between face plate and strike plate 2-6 mm) and options for height adjustment (+2/-4 mm)
    • strike plate adjustment range: 5 mm
    • compatible with:

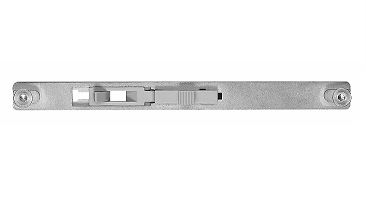

      • daytime unlocking mechanism (temporary deactivation of automatic locking)
      • door stopper T3/T4
      • motorised unlocking system A-Öffner (electromechanic access control systems with biometric reader KFV Fingerprint or Bluetooth access control system KFV Keyless)
    • available finishes: stainless steel (face plate)
Unlocking the lock

From the outside with a locking cylinder:
  • Turn the key in the locking direction until it makes contact, and hold in this position, until the door opens to approximately 50 mm.

From the inside with a handle:
  • Press the handle down until it makes contact (approx. 30˚), and hold in this position, until the door opens to approximately 50 mm.

The correct unlocking of a door ensures that the locking hooks sit inside the lock auxiliary cases until it is opened again.

Transporting the lock
When transporting doors with an installed AS 3500 lock it is possible that the automatic locking hooks may activate and cause damage to the lock.

To avoid any damage, it is recommended that:

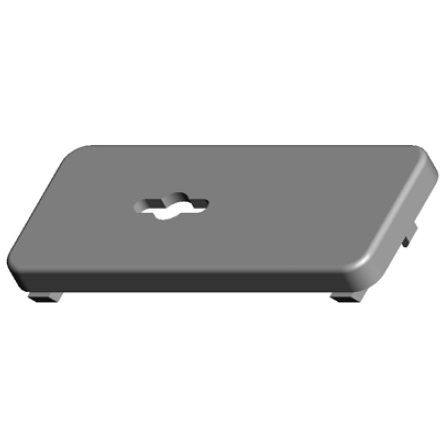

the magnets are installed only after the door is installed on site or special transportation covers are used (may be ordered separately).

Magnets are inserted in any KFV strike plate with adjustment module Q.

Milling
Cutter type  A
Total length (mm)		 B
Distance from handle centre to lower part centre (mm)		 C
Distance from handle centre to upper part centre (mm)		 F
Distance from handle centre to motor centre (mm)		 G
Distance from handle centre to bottom (mm)		 H
Distance from handle centre to auxiliary case centre (mm)		 I
Max face plate shortening from top (mm)		 K
Max face plate shortening from bottom (mm)

 Leaf rebate (mm)
 B001  2170  760  730  380  1020 355 290 130 1881 - 2170
 B003  2400  760  980  380  1020 355  270   130  2171 - 2400
 B298  2170  760  605  380  1020  355 415 130 1755 - 1880
 B296*  2170  760  355  380  1020 - 665 255 1505 - 1754

*   = not available with fitting holes for fastening door stopper or daytime unlocking mechanism
Sizes K + I  = can be shortened


Set
Electronic unlocking solutions and accessories
- Motorised unlocking system KFV A-Öffner
- Electric strike plate 118E130
- Latch release KFV 115B

Strike plates
- joint strike plates
Joint strike plate for multi-point locks KFV BD25-2-230EG/230ERQH
Keep bolt for double doors KFV BS60-230-230ERQH

- for main locks
Angled security strike plate for main locks KFV 15-530E
Screw-on strike plate for main locks KFV 20-608ERH/31

- for auxiliary cases
Angled security strike plate for multi-point lock auxiliary cases KFV 3615-530Q
Screw-on strike plate for multi-point lock auxiliary cases KFV 3620-608Q/31Q
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Multi-point lock AS-3500-F PZ 45/92-20-8, B001, st.steel
    Multi-point lock AS-3500-F PZ 45/92-20-8, B001, st.steel
    Code: SB00003860
    Art. Nr.: 49 482491
    Price:
    From €121.62
    In Stock: 0 pc.
  2. Multi-point lock AS-3500-F PZ,45/92-20-8, B003, st.steel
    Multi-point lock AS-3500-F PZ,45/92-20-8, B003, st.steel
    Code: SB00003862
    Art. Nr.: 49 482493
    Price:
    From €139.73
    In Stock: 0 pc.
  3. Multi-point lock AS-3500-F PZ 45/92-20S-8, B298, st.steel
    Multi-point lock AS-3500-F PZ 45/92-20S-8, B298, st.steel
    Code: SB00003876
    Art. Nr.: 49 483714
    Price:
    From €121.62
    In Stock: 0 pc.
  4. Multi-point lock AS3500-F PZ 55/92-20-8, B001, st.steel
    Multi-point lock AS3500-F PZ 55/92-20-8, B001, st.steel
    Code: SB00003865
    Art. Nr.: 49 482515
    Price:
    From €121.62
    In Stock: 31 pc.
  5. Multi-point lock AS-3500-F PZ 55/92-20-8, B003, st.steel
    Multi-point lock AS-3500-F PZ 55/92-20-8, B003, st.steel
    Code: SB00003866
    Art. Nr.: 49 482517
    Price:
    From €139.73
    In Stock: 23 pc.
  6. Multi-point lock AS3500-F PZ 55/92-20-8 , B298, st.steel
    Multi-point lock AS3500-F PZ 55/92-20-8 , B298, st.steel
    Code: SB00003864
    Art. Nr.: 49 482513
    Price:
    From €121.62
    In Stock: 1 pc.
  7. Multi-point lock AS-3500-F SOFT, 65/92-20S-8, B001, st.steel
    Multi-point lock AS-3500-F SOFT, 65/92-20S-8, B001, st.steel
    Code: SB00003931
    Art. Nr.: 49 489210
    Price:
    From Special Price €109.46 was €121.62
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 11 pc.
  8. Multi-point lock AS-3500-F PZ 65/92-20-8, B003, st.steel
    Multi-point lock AS-3500-F PZ 65/92-20-8, B003, st.steel
    Code: SB00004040
    Art. Nr.: 49 512279
    Price:
    From €139.73
    In Stock: 6 pc.
  9. Multi-point lock AS3500-F PZ 65/92-20S-8, B298, st.steel
    Multi-point lock AS3500-F PZ 65/92-20S-8, B298, st.steel
    Code: SB00004041
    Art. Nr.: 49 512280
    Price:
    From €121.62
    In Stock: 0 pc.
  10. Multi-point lock AS-3500-F PZ, 80/92-20S-10, B001, stainless steel
    Multi-point lock AS-3500-F PZ, 80/92-20S-10, B001, stainless steel
    Code: SB00003877
    Art. Nr.: 49 483719
    Price:
    From €130.68
    In Stock: 0 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. AS-3500 magnet for locking hooks
    AS-3500 magnet for locking hooks
    Code: SB00003851
    Art. Nr.: 49 482035
    Price:
    From €4.71
    In Stock: 27 pc.
  2. AS3500 daytime unlocking mechanism
    AS3500 daytime unlocking mechanism
    Code: SB00003907
    Art. Nr.: 49 485984
    Price:
    From €34.88
    In Stock: 5 pc.
  3. AS-3500/3600 electromechanical drive A-Öffner 2.2
    AS-3500/3600 electromechanical drive A-Öffner 2.2
    Code: SB00004077
    Art. Nr.: 49 800700
    Price:
    From €276.90
    In Stock: 3 pc.
centre distance PZ 92 mm
class as per EN 12209 (DIN 18251) class 3 according to DIN 18251-3 / class 6 according to EN 12400
compatibility standard German (DIN)
door direction universal use for DIN right and left hand doors
face plate finish nerūsējošaist tērauds
face plate length 2170-2400 mm
face plate shape square
fire safety not suitable for fire safety doors
handle square spindle size 8 mm
hook bolt projection 20 mm
installation type mortise
latch type hooks
leaf material for wooden, metal and framed doors
load capacity high
lock case galvanised closed
lock cutter type B001 / B003 / B298
lock operation motorised
lock operation type with key / handle
lock type multi-point lock for hinged doors
locking elements polished nickel-coated
locking function PZ - with profile cylinder hole
Manufacturer KFV
number of locking points 3
possible spindle depth 35 - 80 mm
purpose for exterior doors
