VOYAGER BILLY TITANIUM smart access control backplate

Product code
V-BILLY-TIT
JNF View catalogue of manufacturer

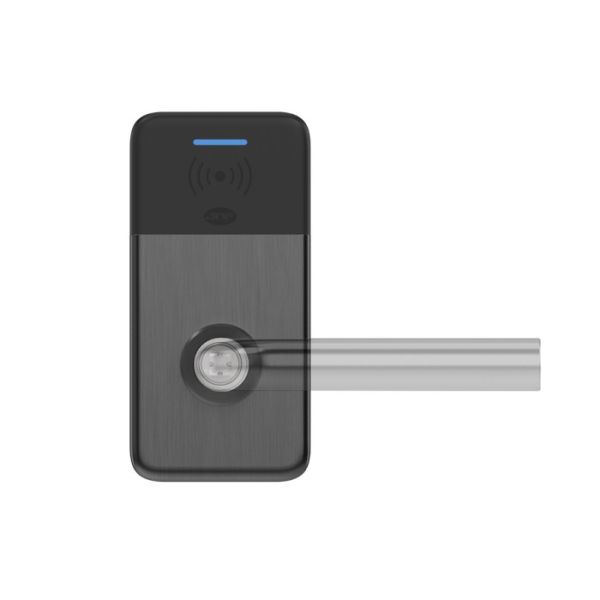

main product photo
From €213.69
Reset selection
VOYAGER BILLY TITANIUM viedā piekļuves kontroles uzlika   €164.56
1 x Pair of handle BY CHOICE   €49.13

Price as configured €213.69

kit
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

Smart backplates VOYAGER BILLY TITANIUM

Manufacturer - JNF (Portugal)

  • one-sided access control backplate without handles
  • convenient solution for hotels
  • easy installation in doors with existing locks
  • possible to choose different handle models from the JNF range
  • compatible with DIN locks un European profile cylinders
  • battery-operated
  • no cable fitting required
  • controlled with Mifare cards or via mobile app VOYAGER by JNF - free download from Play Store and Apple Store
  • wireless connection to a smart device via Bluetooth
  • can be integrated into a WiFi network using a gateway
  • possible to combine with code panel



Technical data

  • Bluetooth 4.0
  • Mifare 13.56MHZ magnetic cards - max 1000 pc.
  • status indication with LED
  • sounds for installation assistance
  • USB-C input for external power (in case of battery failure)
  • possible to choose different handle models from the JNF range
  • outer handle is idle, activated only after authentication
  • possible to activate free access mode
  • possible to retrofit doors with existing locks with centre distance of 38 mm
  • compatible with DIN locks and European profile cylinders
  • spindle: 8x8 mm
  • possible to open with a standard key in case of emergency (recommended)
  • handle rotation: 45º
  • suitable for door thickness of 35 - 60 mm (when equipped with an extended handle axis - up to 100 mm)
  • backplate dimensions: 66 x 136 mm
  • backplate thickness: 21 mm
  • set includes handle rose RC08M for the inside part
  • 4 alkaline batteries LR03 – 1.5V AAA (optional 4 lithium batteries FR03 – AAA 1.5V)
  • static consumption: 12 µA
  • dynamic consumption: 300 mA
  • durability: 40 000 - 70 000 cycles with 1 set of batteries (variable according to weather conditions)
  • low battery warning: 200 cycles after the first warning
  • temperature range: -20 ºC to +55 ºC (lower air temperatures reduce battery life)
  • operational humidity range: 20-80%
  • material: stainless steel EN 1.4301 with PVD coating
    • satin black
    • satin copper
    • satin chocolate
    • satin gold
  • card reader modul - black

Configuration

In the standard configuration, we offer BILLY backplate with handle models IN.00.028 and IN.00.177.
Upon request, it is possible to combine the backplate with any handle from the JNF handle model range.

IN.00.028

In the picture, the handle is shown with a rose; for assembly with MAXIM NUMERIC, a handle without a rose should be used.

IN.00.177

In the picture, the handle is shown with a rose; for assembly with MAXIM NUMERIC, a handle without a rose should be used.

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. VOYAGER BILLY access control set without handles, 4xAAA, with inner rose, black PVD (TB) / black
    VOYAGER BILLY access control set without handles, 4xAAA, with inner rose, black PVD (TB) / black
    Code: SB00028351
    Art. Nr.: IN27501ABTB
    Price:
    From €164.56
    In Stock: 0 pc.
    Visma Quote

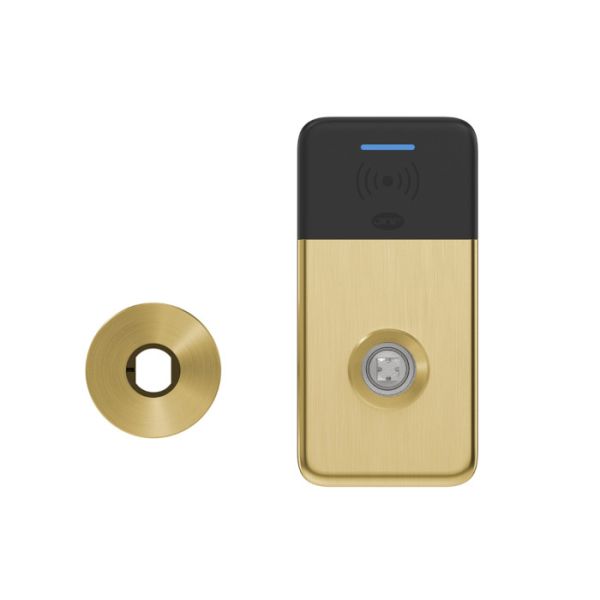

  2. VOYAGER BILLY access control set without handles, 4xAAA, with inner rose, gold PVD (TG) / black
    VOYAGER BILLY access control set without handles, 4xAAA, with inner rose, gold PVD (TG) / black
    Code: SB00028352
    Art. Nr.: IN27501ABTG
    Price:
    From €164.56
    In Stock: 0 pc.
    Visma Quote

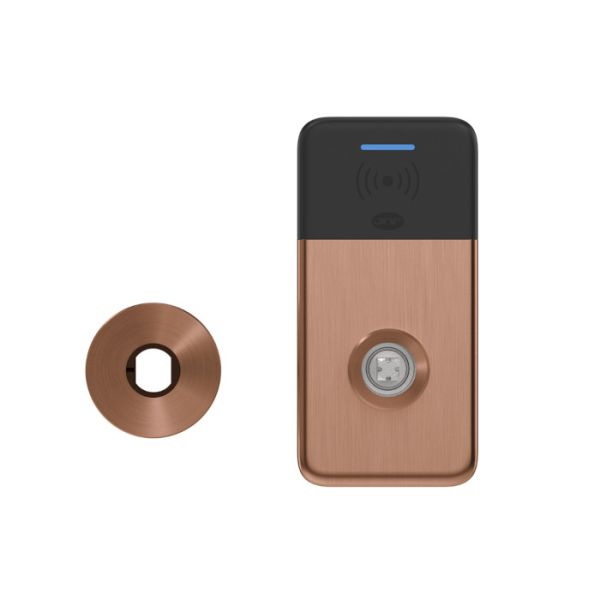

  3. VOYAGER BILLY access control set without handles, 4xAAA, with inner rose, copper PVD (TCO) / black
    VOYAGER BILLY access control set without handles, 4xAAA, with inner rose, copper PVD (TCO) / black
    Code: SB00028353
    Art. Nr.: IN27501ABTCO
    Price:
    From €164.56
    In Stock: 0 pc.
    Visma Quote

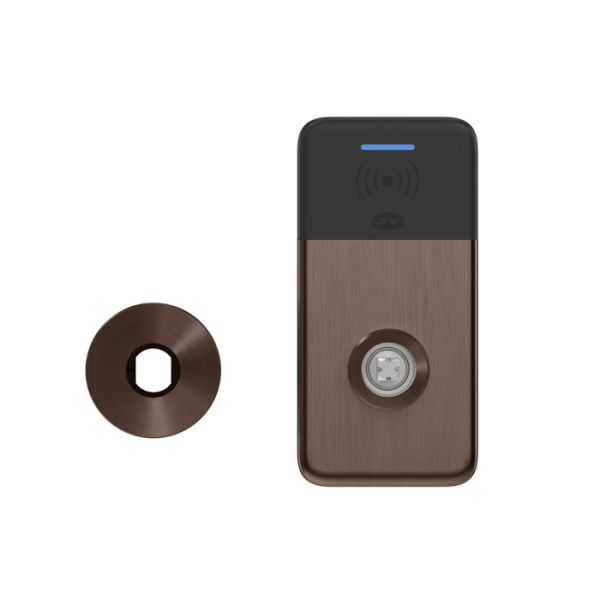

  4. VOYAGER BILLY access control set without handles, 4xAAA, with inner rose, chocolate PVD (TCH) / black
    VOYAGER BILLY access control set without handles, 4xAAA, with inner rose, chocolate PVD (TCH) / black
    Code: SB00028354
    Art. Nr.: IN27501ABTCH
    Price:
    From €164.56
    In Stock: 0 pc.
    Visma Quote
  5. IN.00.177 pair of handles, spindle 8mm, without roses, black PVD (TB)
    IN.00.177 pair of handles, spindle 8mm, without roses, black PVD (TB)
    Code: SB00026260
    Art. Nr.: IN00177SRTB
    Price:
    From €65.34
    In Stock: 0 pāris
    Visma Quote
  6. IN.00.028 pair of handles, spindle 8mm, without roses, black PVD (TB)
    IN.00.028 pair of handles, spindle 8mm, without roses, black PVD (TB)
    Code: SB00028224
    Art. Nr.: IN00028SRTB
    Price:
    From €49.13
    In Stock: 0 pāris
    Visma Quote

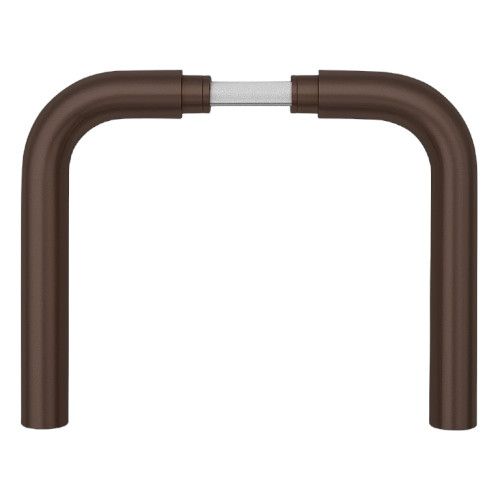

  7. IN.00.028 pair of handles, spindle 8mm, without roses, chocolate PVD (TCH)
    IN.00.028 pair of handles, spindle 8mm, without roses, chocolate PVD (TCH)
    Code: SB00028227
    Art. Nr.: IN00028SRTCH
    Price:
    From €49.13
    In Stock: 0 pāris
    Visma Quote

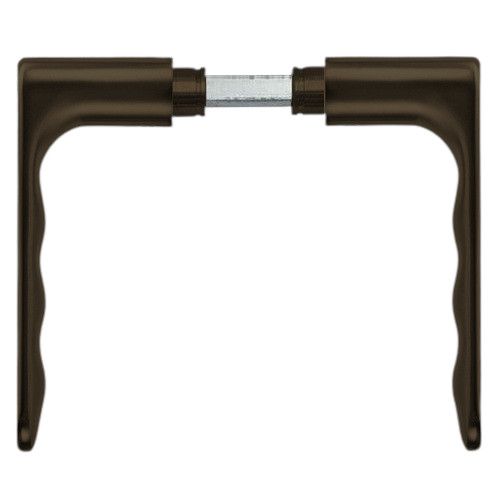

  8. IN.00.177 pair of handles, spindle 8mm, without roses, chocolate PVD (TCH)
    IN.00.177 pair of handles, spindle 8mm, without roses, chocolate PVD (TCH)
    Code: SB00028235
    Art. Nr.: IN00177SRTCH
    Price:
    From €65.34
    In Stock: 0 pāris
    Visma Quote

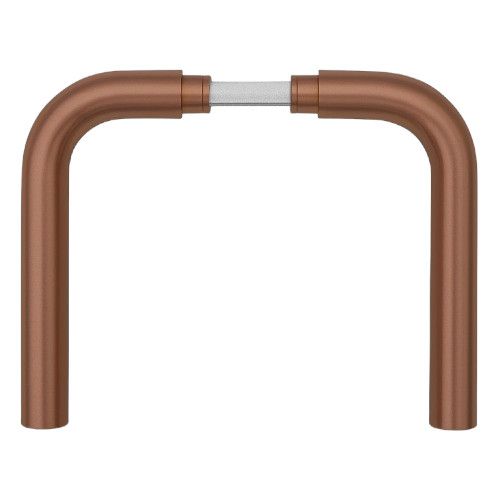

  9. IN.00.028 pair of handles, spindle 8mm, without roses, copper PVD (TCO)
    IN.00.028 pair of handles, spindle 8mm, without roses, copper PVD (TCO)
    Code: SB00028226
    Art. Nr.: IN00028SRTCO
    Price:
    From €49.13
    In Stock: 0 pāris
    Visma Quote

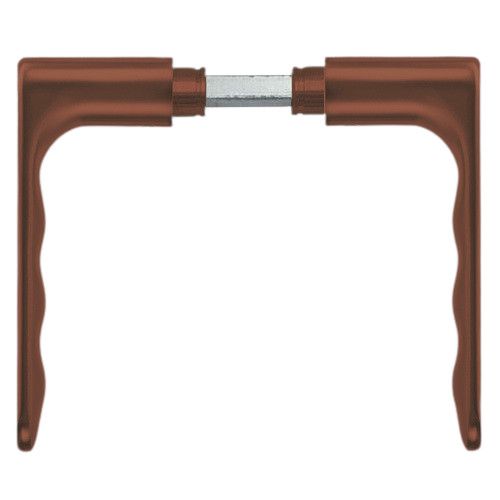

  10. IN.00.177 pair of handles, spindle 8mm, without roses, copper PVD (TCO)
    IN.00.177 pair of handles, spindle 8mm, without roses, copper PVD (TCO)
    Code: SB00028232
    Art. Nr.: IN00177SRTCO
    Price:
    From €65.34
    In Stock: 0 pāris
    Visma Quote

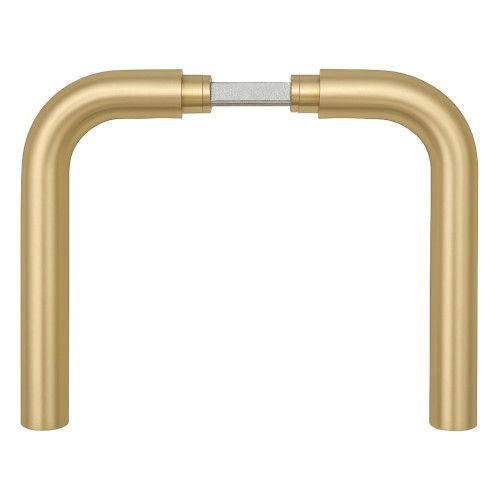

  11. IN.00.028 pair of handles, spindle 8mm, without roses, gold PVD (TG)
    IN.00.028 pair of handles, spindle 8mm, without roses, gold PVD (TG)
    Code: SB00028225
    Art. Nr.: IN00028SRTG
    Price:
    From €49.13
    In Stock: 0 pāris
    Visma Quote

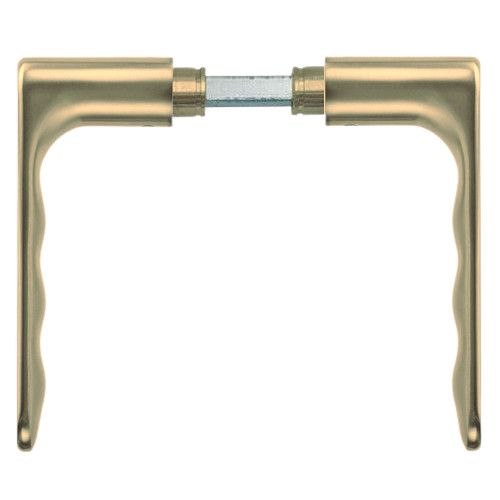

  12. IN.00.177 pair of handles, spindle 8mm, without roses, gold PVD (TG)
    IN.00.177 pair of handles, spindle 8mm, without roses, gold PVD (TG)
    Code: SB00028231
    Art. Nr.: IN00177SRTG
    Price:
    From €65.34
    In Stock: 0 pāris
    Visma Quote

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Mifare Classic 1K 13.56 Mhz card for electronic access systems
    Mifare Classic 1K 13.56 Mhz card for electronic access systems
    Code: SB00026281
    Art. Nr.: IN27153B
    Price:
    From €0.97
    In Stock: 55 pc.
  2. Mifare Classic 1K 13.56Mhz fob for electronic access systems
    Mifare Classic 1K 13.56Mhz fob for electronic access systems
    Code: SB00026282
    Art. Nr.: IN27161
    Price:
    From €2.78
    In Stock: 66 pc.
  3. VOYAGER RFID card reader, black
    VOYAGER RFID card reader, black
    Code: SB00026411
    Art. Nr.: IN27558
    Price:
    From €50.40
    In Stock: 2 pc.
  4. VOYAGER gateway 522, WiFi, black
    VOYAGER gateway 522, WiFi, black
    Code: SB00025856
    Art. Nr.: IN27522WIFIB
    Price:
    From €149.13
    In Stock: 9 pc.
  5. VOYAGER gateway 522, WiFi, white
    VOYAGER gateway 522, WiFi, white
    Code: SB00026413
    Art. Nr.: IN27522WIFIW
    Price:
    From €149.13
    In Stock: 10 pc.
  6. VOYAGER gateway 524, WiFi, black
    VOYAGER gateway 524, WiFi, black
    Code: SB00026412
    Art. Nr.: IN27524WIFIB
    Price:
    From €97.71
    In Stock: 4 pc.
  7. VOYAGER gateway 524, WiFi, white
    VOYAGER gateway 524, WiFi, white
    Code: SB00026261
    Art. Nr.: IN27524WIFIW
    Price:
    From €97.71
    In Stock: 13 pc.
  8. Roktura ass JNF Voyager rokturu garnitūrām, 150mm
    Roktura ass JNF Voyager rokturu garnitūrām, 150mm
    Code: SB00026452
    Art. Nr.: IN08AQPR
    Price:
    From €19.36
    In Stock: 18 pc.
Manufacturer JNF
material Nerūsējošais tērauds + PVD
leaf material for wooden and metal doors
purpose for interior doors / for exterior doors
access type app / card / PIN code
compatibility standard German (DIN)
door thickness 35-60 mm
electricity supply type 3 x AAA batteries (LR03-1.5)
Access type Mifare 13.56MHZ
installation type to door leaf
backplate/rose shape rounded edges
Bluetooth 4.0
number of magnetic cards max 1000
backplate/rose size 136 x 66 mm
fastening centre distance 38 mm
backplate/rose thickness 21 mm
handle square spindle size 8 mm
operational temperature range from -20 °C to +55 °C
Series VOYAGER
limit of relative humidity 20-80%
dynamic consumption 300 mA
static consumption 12 µA
handle rotation 45º
