Receiver STV75/56 3-D
Manufacturer - BaSys (Germany)

    • suitable for wooden and hollow-core door frame
    • 3-dimensional adjustment, 3 mm in all directions
    • integrated pull-out protection
    • solid steel or stainless steel front plate, material thickness: 3 mm
    • compatible with all BaSys heavy duty hinges with 56 mm connection
    • size: 220 x 24/24,5 mm
    • screws: Spax 5
    • max load: 150 kg (pāris)
    • material: stainless steel

    •
Montāžas instrukcijas
OBJECTA 3-D uztverošo konstrukciju regulēšana OBJECTA 3-D uztverošo konstrukciju regulēšana
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

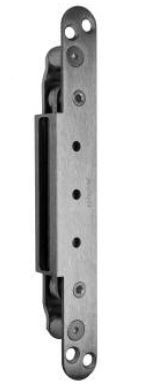

  1. STV75/56 3-D receiver, st.steel
    STV75/56 3-D receiver, st.steel
    Code: SB00016171
    Art. Nr.: 036625
    Price:
    From €26.26
    In Stock: 31 pc.
Manufacturer BASYS
hinge type lower part
hinge shape rounded
door direction universal use for DIN right and left hand doors
door construction for non-rebated and rebated doors
load capacity high
bundling options compatible with all BaSys heavy duty hinges with grip
anti-intruder protection yes
leaf maximum weight 150 kg
height 220 mm
width 24 mm
material thickness 3 mm
suitable for aluminium frames suitable
suitable for steel frames suitable
suitable for industrial frames suitable
suitable for timber frames suitable
anti-corrosion resistance class 4 according to EN 1935 - very high
class as per EN 1935 class 2
corner radius R12
fire safety suitable for fire and smoke safety doors
adjustment adjustable
maintenance recommended 1x a year
installation template available for sale or rent
fastening elements must be ordered separately
material stainless steel
