Heavy-duty hinges for thin frames VARIANT Compact Planum VN 2927/160
Product code
MB00001618
All prices include VAT
From
€99.22
From
€99.22
Only %1 left
Heavy-duty hinges for thin frames VARIANT Compact Planum VN 2927/160
Manufacturer - SIMONSWERK (Germany)
Manufacturer - SIMONSWERK (Germany)
-
- heavy-duty hinges for non-rebated wooden doors
- suitable for slim frame facings
- adjusting component may be installed in either leaf or frame
- suitable for fire and smoke safety doors
- continuous 3-dimensional adjustability: side (+/- 3 mm), height (+/- 3 mm), depth (+/- 1 mm)
- adjustment with hexagonal key 4 mm
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
- integrated retainer protects hinges and prevents intruders from prising the door open
- max load capacity: 160 kg
- load capacity refers to two hinges per leaf (1000 x 2000 mm)
- kunckle length: 160 mm
- knuckle Ø: 15 mm
- milling Ø: 24 mm
- material thickness: 3 mm
- screws: 5 x 50 mm
- material: stainless steel
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

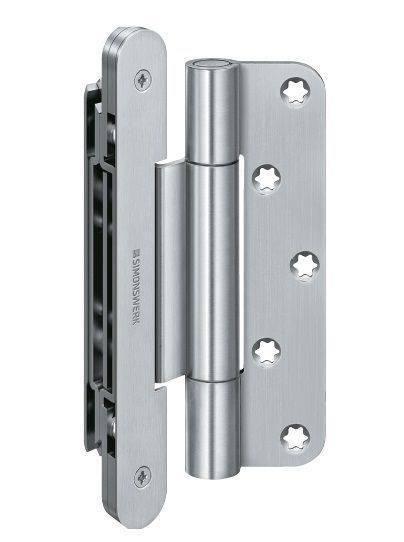

Heavy-duty hinge VARIANT Compact Planum VN 2927/160, stainless steelCode: SB00008671Art. Nr.: 5 051602 0 04002Price:From €99.22In Stock: 0 pc.
| adjustment | adjustable |
|---|---|
| anti-corrosion resistance | certified according to EN 1935 - depending on finish |
| anti-intruder protection | yes, integrated safety pin |
| base assortment | No |
| class as per EN 1935 | class 4 |
| collar ring | 30 mm |
| cutter diameter | 24 mm |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| fastening elements | must be ordered separately |
| fire safety | suitable for fire and smoke safety doors |
| groove for leaf seal | no |
| height | 196 mm |
| hinge shape | rounded |
| hinge type | heavy duty hinge |
| knuckle diameter | 15 mm |
| knuckle length | 160 mm |
| leaf maximum weight | 160 kg |
| leaf material | wood |
| load capacity | very high |
| maintenance | not required (self-lubricating bearings) |
| Manufacturer | SIMONSWERK |
| material thickness | 3 mm |
| material | steel / stainless steel |
| suitable for aluminium frames | not suitable |
| suitable for industrial frames | suitable using additional mounting parts |
| suitable for steel frames | not suitable |
| suitable for timber frames | suitable |
