SI-BUS Plug&Play access control system for wooden doors with SURFACE FINGERPRINT SCANNER

Product code
SI-BUS-BIO-AA
From €2,157.13
Reset selection
SI-BUS surface fingerprint scanner without casing   €870.27
Code: SB00021053
Out of stock. Estimated delivery time: 8 weeks.
SI-BUS casing for surface fingerprint scanner   €151.36
Surface mounting profile for SI-BUS access control systems, st. steel   €378.35
Code: SB00004043
Out of stock. Estimated delivery time: 8 weeks.
Power transformer to 230 V - 24 V DC   €113.18
Code: SB00004025
In Stock. Available: 2 gab.
SI-BUS cable 3m, socket/socket, link from panel to cable connector   €83.25
Code: SB00004042
In Stock. Available: 1 gab.
SI-BUS cable 8m, socket/open end, link for cable connector to power supply   €125.03
Code: SB00004044
In Stock. Available: 1 gab.
SI-BUS cable 1m, socket/socket, link from panel to GENIUS/A-opener   €54.86
Code: SB00020195
Out of stock. Estimated delivery time: 8 weeks.
SI-BUS Mini cable connector with plugs   €220.18
Code: SB00004045
In Stock. Available: 1 gab.
Cable transfer for wooden doors, built-in   €84.94
Code: SB00004052
In Stock. Available: 1 gab.
SI-BUS extension cable 2m socket/socket   €75.70
Code: SB00020197
In Stock. Available: 1 gab.

Price as configured €2,157.13

kit
The selected product is currently out of stock.

SI-BUS access control system with surface fingerprint scanner and Plug&Play solution for wooden doors

Manufacturer - SIEGENIA (Germany)

  • digital access control with external Touch ID fingerprint scanner
  • fingerprint scanner is surface-mounted next to door leaf
  • combines clever comfort functions with elegant appearance and easy operation
  • with WiFi and Bluetooth chip as standard
  • SI-BUS interface enables direct communication with drive without additional control unit
  • all options open for modern and smart living concepts and for future system extensions
  • SI-BUS is secured with a 128 Bit AES encryption
  • sensor type: fingerprint scanner
  • possible to control via SIEGENIA Comfort App
  • online remote access, timer and user administration
  • administration of up to 200 users and 800 features
  • one-time user or interval user function available
  • colour-adjustable LED lighting for individual tone adaptation to entrance door
  • adjustable brightness: automatically via light sensor or manually
  • power supply unit: external (alternative: SI-BUS built-in power unit for door frame, 115/230 V-24 VAC-24DC/0.9AMP, with SI-BS adapter included)
  • wiring: plug & play system

Technical data

  • operating voltage: 9 V DC - 30 V C
  • WiFi: 2.4 GHz / 802.11b/g/n/e/i
  • Bluetooth: V4.2 BR/EDR and BLE
  • encryption: AES 128 Bit / WPA2
  • lighting: 6 x RGB LED (multi-coloured)
  • adjustable brightness: automatically via light sensor or manually
  • SI-BUS interface
  • operational temperature: from -25 C to +70 C
  • protection class: IP54 front side
  • power consumption: 2.52 W

Installation benefits
  • simple and lean cable connections without risk of polarity reversal due to preassembled, engaging plug & play connections
  • direct installation without separate control unit
  • no electrician required
  • predefined and preassembled plug & play solutions with all required components

Set




CATALOGUES AND INSTRUCTIONS



Mobile app SIEGENIA COMFORT

  • universal app for remote control via smartphone or tablet of all SIEGENIA smart solutions for windows, doors and ventilation devices
  • quick and flexible installation at any time
  • simple integration into home network or direct connection to WLAN module in stand-alone mode
  • convenient and intuitive operation; virtual assistant support available
  • smart automatic and timer functions
  • custom setting options
  • simple device and sensor coupling
  • status updates and remote control
  • free download on Google Play and App Store
  • compatible with iOS 8.0 and newer / Android 5.0 and newer OS
  • secure SSL encryption

VIDEO instruction for app setup and use (in German):

https://www.siegenia.com/en/service/portal#/downloads/165488/165497?filter=videos

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

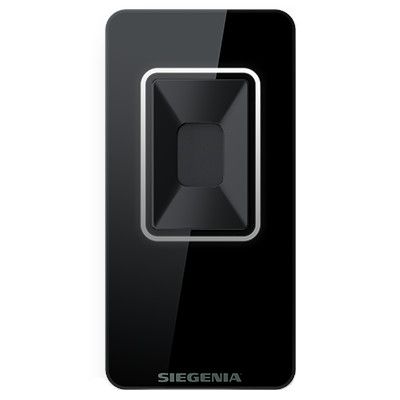

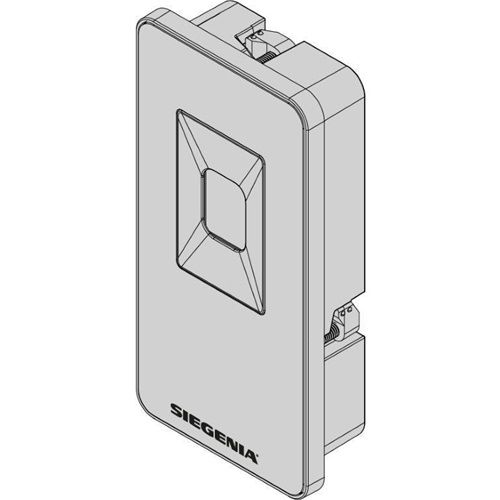

  1. SI-BUS surface fingerprint scanner without casing
    SI-BUS surface fingerprint scanner without casing
    Code: SB00021053
    Art. Nr.: 3513110
    [8.1] 3513110
    Price:
    From €870.27
    In Stock: 0 pc.
  2. SI-BUS casing for surface fingerprint scanner, black
    SI-BUS casing for surface fingerprint scanner, black
    Code: SB00021056
    Art. Nr.: 3513114
    [9.1] 3513114
    Price:
    From €151.36
    In Stock: 0 pc.
  3. SI-BUS casing for surface fingerprint scanner, silver tone
    SI-BUS casing for surface fingerprint scanner, silver tone
    Code: SB00021057
    Art. Nr.: 3513113
    [9.1] 3513113
    Price:
    From €151.36
    In Stock: 0 pc.

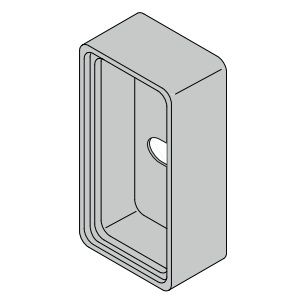

  4. Surface mounting profile for SI-BUS access control systems, st. steel
    Surface mounting profile for SI-BUS access control systems, st. steel
    Code: SB00004043
    Art. Nr.: 3513128
    [10] 3513128
    Price:
    From €378.35
    In Stock: 0 pc.

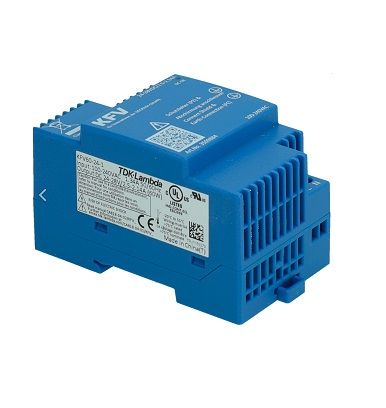

  5. Power transformer to 230 V - 24 V DC
    Power transformer to 230 V - 24 V DC
    Code: SB00004025
    Art. Nr.: 3509884
    [4.1] 3509884
    Price:
    From €113.18
    In Stock: 2 pc.

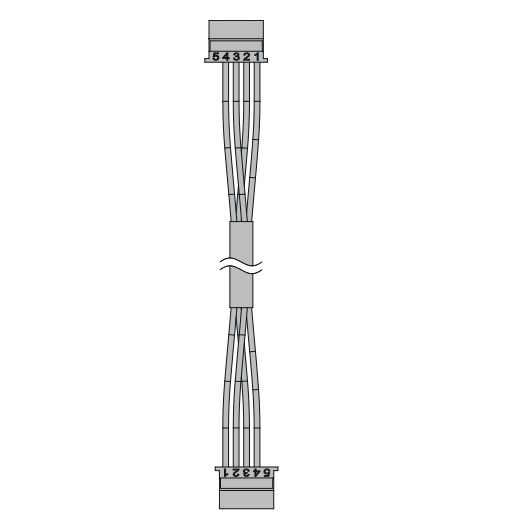

  6. SI-BUS cable 3m, socket/socket, link from panel to cable connector
    SI-BUS cable 3m, socket/socket, link from panel to cable connector
    Code: SB00004042
    Art. Nr.: 3513122
    [11.4] 3513122
    Price:
    From €83.25
    In Stock: 1 pc.

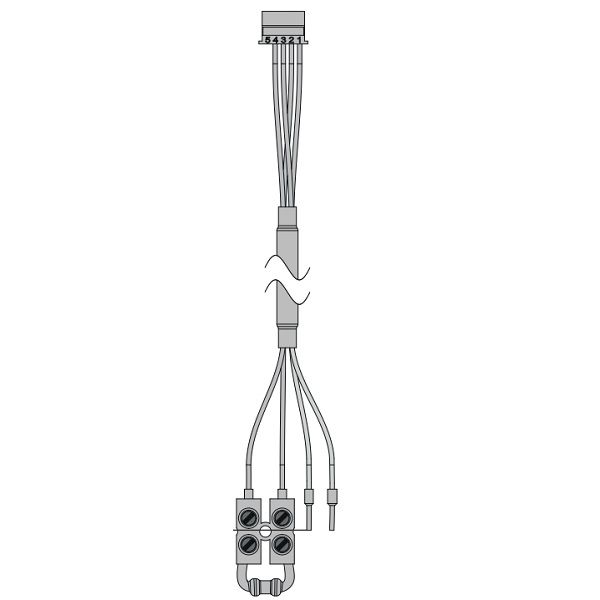

  7. SI-BUS cable 8m, socket/open end, link for cable connector to power supply
    SI-BUS cable 8m, socket/open end, link for cable connector to power supply
    Code: SB00004044
    Art. Nr.: 3513129
    [5.1] 3513129
    Price:
    From €125.03
    In Stock: 1 pc.
  8. SI-BUS cable 1m, socket/socket, link from panel to GENIUS/A-opener
    SI-BUS cable 1m, socket/socket, link from panel to GENIUS/A-opener
    Code: SB00020195
    Art. Nr.: 3513124
    [1] 3513124
    Price:
    From €54.86
    In Stock: 0 pc.
  9. SI-BUS Mini cable connector with plugs
    SI-BUS Mini cable connector with plugs
    Code: SB00004045
    Art. Nr.: 3513131
    [3] 3513131
    Price:
    From €220.18
    In Stock: 1 pc.

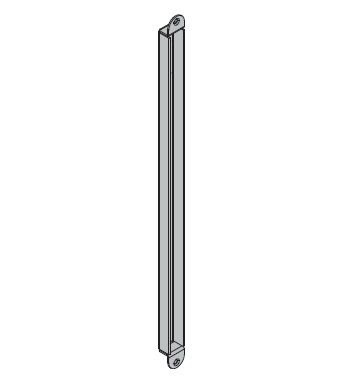

  10. Cable transfer for wooden doors, built-in
    Cable transfer for wooden doors, built-in
    Code: SB00004052
    Art. Nr.: 3517879
    [12] 3517879
    Price:
    From €84.94
    In Stock: 1 pc.

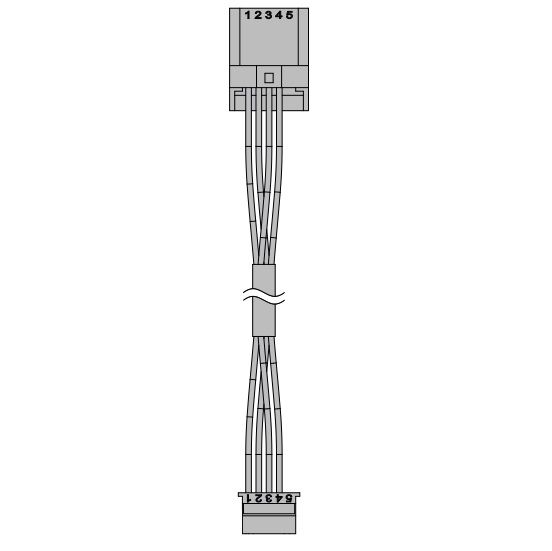

  11. SI-BUS extension cable 2m socket/socket
    SI-BUS extension cable 2m socket/socket
    Code: SB00020197
    Art. Nr.: 3513123
    [2] 3513123
    Price:
    From €75.70
    In Stock: 1 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity

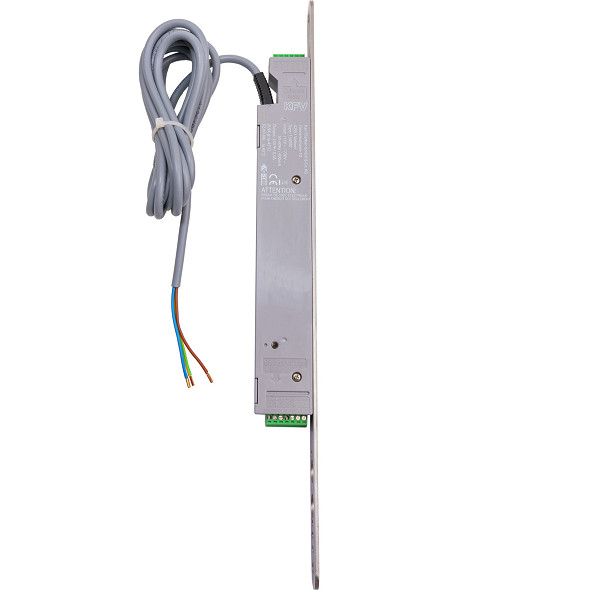

  1. SI-BUS power supply unit built into frame, series A, 115/230 V-24 VAC-24DC/0.9AMP, face plate 24 m
    SI-BUS power supply unit built into frame, series A, 115/230 V-24 VAC-24DC/0.9AMP, face plate 24 m
    Code: SB00004050
    Art. Nr.: 3514588
    Price:
    From €360.60
    In Stock: 0 pc.
Wi-Fi 2.4 GHz / 802.11b/g/n/e/i
access type biometric
adjustment type adjustable brightness: automatically or manually
Bluetooth V4.2 BR/EDR and BLE
body dimensions 46 x 92 mm
bundling options AS-3500, AS-3600, Genius, drive A-Öffn
colour / finish black / silver
connection type plug & play
corner radius R5
Datu pārraide Wi-Fi / Bluetooth
device control via mobile app SIEGENIA Comfort App
installation type to wall
Interfeiss SI-BUS
IP rating IP54
Kodēšana AES 128 Bit / WPA2
leaf material wood
lighting 6 x RGB LED (multi-coloured)
maximum number of users for one lock 200
Manufacturer SIEGENIA
nominal current consumption 2.52 W
operational temperature range from -25 C to +70 C
power supply external
