Fireproof handle for framed panic doors KETO 1200 NT FS
Product code
MB00009690
All prices include VAT
From
€63.02
Only %1 left

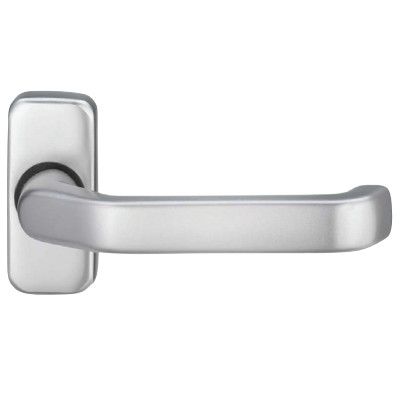

Fireproof stainless steel handle for framed panic doors KETO1200 FS
Manufacturer - DIECKMANN (Germany)- spring-loaded lever handle firmly fixed into angular rose
- conforms to DIN EN 1906 class 4
- suitable for emergency doors according to DIN EN 179 (only combined with suitable, certified door spindles)
- complies with DIN 18 273 standard for fire safety doors
- handle construction with angled grip reduces the risk of injury which may happen when opening/closing the door by the hand coming into contact with the door frame
- suitable for both left and right hand doors
- steel sub-construction with click-on rose
- covered screws Ø M5
- rose size: 34 x 75 mm
- rose thickness: 14,5 mm
- handle length: 143 mm
- distance from leaf surface to external surface of handle: approx. 69,5 mm
- spindle square: 9 mm
- material: stainless steel matt
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Fire-proof handle for framed panic doors KETO 1200, on angular rose, 9 mm, stainless steelCode: SB00024633Art. Nr.: 1200/2134/00Price:From €63.02In Stock: 0 pc.
Additional products
- Products
- Price
- In Stock
- Quantity
-
KETO 812 Key rose for framed doors, PZ, 9 mm, stainless steelCode: SB00011414Art. Nr.: 0812/9003 ESTPrice:From €12.04In Stock: 0 pc.
-
9B 0542 rokturu ass bez šķēluma ugunsdrošiem rokturiem, 9x120 mm, cinkotaCode: SB00020818Art. Nr.: 0542/0912/00Price:From €1.96In Stock: 14 pc.
-
9B spindle without split for fireproof handle , 9x140 mmCode: SB00011051Art. Nr.: 0542/0914/00Price:From €1.96In Stock: 5 pc.
-
9B roktura ass bez šķēluma ugunsdrošiem rokturiem, 9x160 mm, cinkotaCode: SB00023929Art. Nr.: 0542/0916/00Price:From €3.40In Stock: 4 pc.
| Manufacturer | DIECKMANN |
|---|---|
| Series | KETO |
| material | stainless steel |
| leaf material | for framed doors |
| purpose | for interior doors |
| set | without key roses |
| construction | one-sided handle female part on rose |
| class as per EN 1906 | class 4 |
| load capacity | high |
| suitable for emergency exits | complies with 179 - emergency door equipment |
| fire safety | fire safety certified according to EN1906 |
| door direction | universal use for DIN right and left hand doors |
| compatibility standard | German (DIN) |
| position of door handle | offset (for finger protection) |
| handle construction | Rozetes konstrukcijā stabili stiprināts nospiežams |
| material: sub-construction | steel |
| handle spring | integrated holding spring to cushion the push and pull forces |
| handle length | 143 mm |
| handle square spindle size | 8 mm |
| distance from leaf surface to outer edge of handle | 70 mm |
| backplate/rose shape | square |
| backplate/rose thickness | 14.5 mm |
| backplate/rose size | 34 x 75 mm |
| fastening centre distance | 50 mm |
| installation type | screw on |
| fastening type | covered |
| fastening elements | must be ordered separately |
