Concealed hinge INVISACTA IN230

Product code
IN230


From €15.90 was €17.67

Select a suitable hinge finish and add matching caps in the required number.
One hinge requires 4 caps.
Reset selection
Slēptā eņģe INVISACTA IN230 3D bez nosegplāksnēm   €15.90

Price as configured €15.90

kit
The selected product is currently out of stock.
Concealed hinge INVISACTA IN230 3D
Manufacturer - OTLAV (Italy)

    • may be leaf or frame-mounted
    • suitable for non-rebated wooden doors
    • complies with EN 1634-2 fire safety requirements 30'
    • 3-dimensional adjustability: side (+/- 1 mm), depth (+/- 1 mm) and height (+/- 2 mm)
    • adjusted with 3mm hexagonal key
    • doors can be adjusted post-installation, e.g. sagging doors
    • high level of durability, ensured by the 7 joint hinges with durable HT plastic bearings
    • suitable for both left and right hand doors
    • maximum load capacity: 60 kg (2 hinges per leaf, test door size: 90x210 cm)
    • size: 120 x 23 mm
    • depth of the milling in the frame: 21 mm
    • opening angle: 180°
    • may be combined with door closers
    • compatible with aluminium caps (4 pc. needed for 1 hinge)
    • material metal alloy ZAMAK:
      • silver tone
      • white
      • black
      • galvanised
      • nickel-plated matt
      • gold-plated polished
      • bronze tone



Montāžas instrukcija un regulēšana




All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. INVISACTA 3D concealed hinge 23x120, white
    INVISACTA 3D concealed hinge 23x120, white
    Code: SB00018784
    Art. Nr.: IN2301209P02
    Price:
    From Special Price €18.08 was €20.09
    In Stock: 52 pc.
  2. INVISACTA 3D concealed hinge 23x120, silver
    INVISACTA 3D concealed hinge 23x120, silver
    Code: SB00018785
    Art. Nr.: IN230120V702
    Price:
    From Special Price €15.90 was €17.67
    In Stock: 455 pc.
  3. INVISACTA 3D concealed hinge 23x120, black
    INVISACTA 3D concealed hinge 23x120, black
    Code: SB00018783
    Art. Nr.: IN2301209N02
    Price:
    From Special Price €16.99 was €18.88
    In Stock: 1105 pc.
  4. INVISACTA 3D slēptā enģe 23x120, satinēti niķelēta
    INVISACTA 3D slēptā enģe 23x120, satinēti niķelēta
    Code: SB00019931
    Art. Nr.: IN230120VN02
    Price:
    From Special Price €15.90 was €17.67
    In Stock: 37 pc.
  5. INVISACTA 3D slēptā enģe 23x120, zelta tonis spīdīgi pulēts
    INVISACTA 3D slēptā enģe 23x120, zelta tonis spīdīgi pulēts
    Code: SB00019911
    Art. Nr.: IN230120VO002
    Price:
    From €30.86
    In Stock: 0 pc.
  6. Cap for INVISACTA 230, white (4 pc. needed for 1 hinge)
    Cap for INVISACTA 230, white (4 pc. needed for 1 hinge)
    Code: SB00018740
    Art. Nr.: GC2300109P02
    Price:
    From €0.24
    In Stock: 266 pc.
    Can be ordered in full packages of 4 pcs.
  7. Cap for INVISACTA 230, black (4 pc. needed for 1 hinge)
    Cap for INVISACTA 230, black (4 pc. needed for 1 hinge)
    Code: SB00018739
    Art. Nr.: GC2300109N02
    Price:
    From Special Price €0.39 was €0.42
    In Stock: 2256 pc.
    Can be ordered in full packages of 4 pcs.
  8. Cap for INVISACTA 230, silver (4 pc. needed for 1 hinge)
    Cap for INVISACTA 230, silver (4 pc. needed for 1 hinge)
    Code: SB00018741
    Art. Nr.: GC230010J102
    Price:
    From Special Price €0.22 was €0.24
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 2673 pc.
    Can be ordered in full packages of 4 pcs.

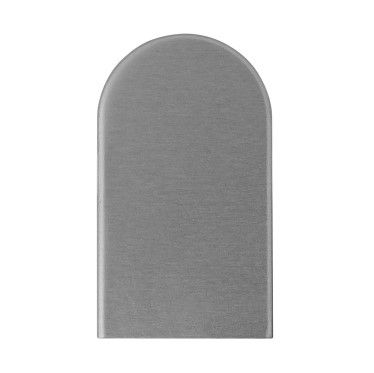

  9. INVISACTA 230 cap for concealed hinge, nickel-plated satin (4 pc. needed for 1 hinge)
    INVISACTA 230 cap for concealed hinge, nickel-plated satin (4 pc. needed for 1 hinge)
    Code: SB00019932
    Art. Nr.: GC230010J2022
    Price:
    From Special Price €0.22 was €0.24
    In Stock: 164 pc.
    Can be ordered in full packages of 4 pcs.

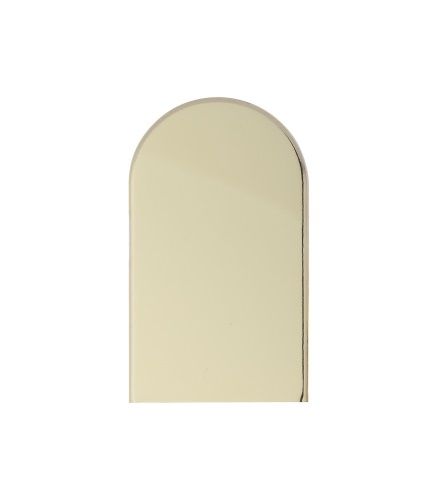

  10. INVISACTA 230 cap for concealed hinge, gold tone brightly polished (4 pc. needed for 1 hinge)
    INVISACTA 230 cap for concealed hinge, gold tone brightly polished (4 pc. needed for 1 hinge)
    Code: SB00019912
    Art. Nr.: GC230010JO05
    Price:
    From Special Price €0.22 was €0.24
    In Stock: 56 pc.
    Can be ordered in full packages of 4 pcs.
Manufacturer OTLAV
base assortment Yes
door construction for non-rebated doors
leaf material wood
door direction universal use for DIN right and left hand doors
anti-intruder protection yes, protected hinge design
hinge shape rounded
suitable for aluminium frames suitable using additional mounting parts
suitable for steel frames suitable using additional mounting parts
suitable for industrial frames suitable
suitable for timber frames suitable
maintenance not required (self-lubricating bearings)
class as per EN 1935 class 2
hinge type concealed hinge
fire safety suitable for fire and smoke safety doors
adjustment type adjustable with 3 mm hexagonal key, without removing door from frame
adjustment adjustable
fastening elements must be ordered separately
load capacity middle
installation template available for sale or rent
material ZAMAK
groove for leaf seal no
anti-corrosion resistance certified according to EN 1935 - depending on finish
leaf maximum weight 60 kg
height 120 mm
cutter diameter 16 mm
bundling options may be combined with aluminium cover tops
