Door handle APOLLO

Product code
MB00000220
All prices include VAT
From €35.13
From €35.13
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.

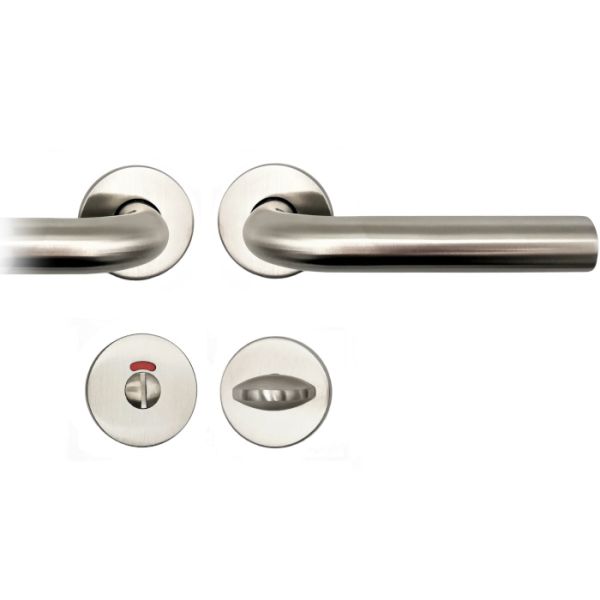

Stainless steel door handle APOLLO
Manufacturer - DIECKMANN (Germany)

    • durable rose sub-construction suitable for heavy-duty doors
    • turnable stainless steel handle firmly fixed into the plastic base rose with a fixation ring
    • integrated spring to cushion the push and pull forces
    • handle guide made of self-lubricating plastic
    • base rose with fixed supporting lugs for metric screws M5 x 30 mm
    • roses: Ø 55 mm
    • fixed supporting lugs: Ø 8 mm
    • spindle square: Ø 8 mm
    • handle length: 125 mm
    • additional flush screw in handle for higher resistance
    • through door fastening
    • keyhole options: PZ, BB, WC
    • may be combined with fixed external door knob
    • set corresponds to grade 3 in use and durability according to EN 1906, suitable for medium to high usage, can be used for public buildings
    • material:
      • stainless steel
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. 1485 APOLLO handle set with roses PZ, class 3, st.steel
    1485 APOLLO handle set with roses PZ, class 3, st.steel
    Code: SB00011221
    Art. Nr.: 1485/0000/00
    Price:
    From €35.13
    In Stock: 8 kit
  2. 1486 APOLLO handle set with roses WC, class 3, st.steel
    1486 APOLLO handle set with roses WC, class 3, st.steel
    Code: SB00011222
    Art. Nr.: 1486/0000/00
    Price:
    From €60.04
    In Stock: 7 kit
WC knob type with colour indicator
backplate/rose shape round
backplate/rose size Ø55 mm
backplate/rose thickness 8 mm
centring lug diameter 7 mm
class as per EN 1906 class 3
compatibility standard German (DIN)
construction lever handles on both sides
distance from leaf surface to outer edge of handle 68 mm
door direction universal use for DIN right and left hand doors
door thickness 38-58 mm (WC 38-48 mm)
fastening centre distance 38 mm
fastening elements included in set
fastening type concealed
fastening type covered
fastening type covered
fire safety not suitable for fire safety doors
handle construction with stable fixed pivot axis
handle length 125 mm
handle square spindle size 8 mm
handle spring integrated holding spring to cushion the push and pull forces
installation type screw on
leaf material for wooden and metal doors
load capacity high
locking function PZ / BB / WC
Manufacturer DIECKMANN
material: sub-construction plastic
material stainless steel
purpose for interior doors
set with split roses
