Concealed hinges for exterior doors ANSELMI AN 160 3D
Product code
MB00009987
All prices include VAT
From
€20.33
Only %1 left
-
- c
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

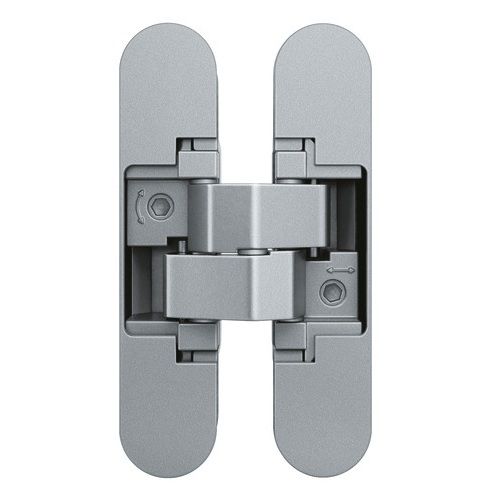

Concealed hinges for exterior doors ANSELMI AN 160 3D, satin chromeCode: SB00024880Art. Nr.: SLSA42A45NCV14Price:From €16.80In Stock: 0 pc. -

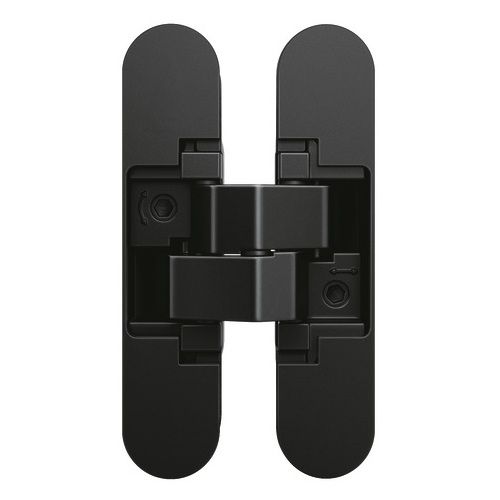

Concealed hinges for exterior doors ANSELMI AN 160 3D, blackCode: SB00024883Art. Nr.: AN 160 3D (18)Price:From €20.33In Stock: 0 pc.
| Manufacturer | SIMONSWERK |
|---|---|
| hinge type | concealed hinge |
| hinge shape | rounded |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | class 2 |
| fire safety | suitable for fire and smoke safety doors |
| purpose | for exterior doors |
| leaf material | wood |
| load capacity | middle |
| leaf maximum weight | 60 kg |
| suitable for aluminium frames | suitable |
| suitable for steel frames | not suitable |
| suitable for industrial frames | suitable using additional mounting parts |
| suitable for timber frames | suitable |
| anti-corrosion resistance | not certified |
| adjustment | adjustable |
| adjustment type | may be adjusted without removing door from its frame |
| groove for leaf seal | no |
| anti-intruder protection | yes |
| cutter diameter | 24 mm |
| collar ring | 30 mm |
| height | 110 mm |
| milling depth for leaf part | 25.9 mm |
| milling depth for frame part | 26.4 mm |
| leaf part width | 24 mm |
| frame part width | 24 mm |
| maintenance | not required (self-lubricating bearings) |
| installation template | available for sale or rent |
| fastening elements | must be ordered separately |
| material | ZAMAK |
| Series | ANSELMI |
