Concealed hinges for exterior doors ANSELMI AN 180 3D
Product code
MB00009988
All prices include VAT
From
€40.56
Only %1 left
Concealed hinges for exterior doors ANSELMI AN180 3D
Manufacturer - SIMONSWERK GROUP / ANSELMI (Italy)
- suitable for exterior doors up to 80 kg
- for timber, aluminium and casing frames
- suitable for unrebated wooden residential doors
- 3D adjustment: side (+/- 1,5 mm), compression (+/- 1,0 mm) and height (+/- 2,5 mm)
- may be adjusted without removing the door from its frame
- suitable for both left and right hand doors
- maintenance-free bearings
- load capacity: 80 kg (refers to the use of 2 hinges per door leaf 900 x 2100 mm)
- opening angle: 180º
- overall length: 110 mm
- wight (door part / frame part): 24 / 24 mm
- cutter diameter: 24 mm
- IFT and UL certified
- material: zamak / steel
- standard finishes:
- satin chrome (AN 014)
- black (AN 018)
- finishes available on request:
- antique bronze (AN 035)
- polished brass (AN 037)
- satin nickel (AN 044)
- aluminium chrome (AN 036)
- polished chrome (AN 039)
- traffic white RAL 9016 (AN 049)
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

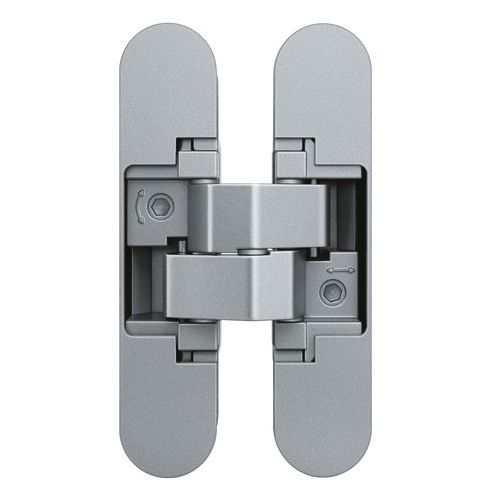

Concealed hinges for exterior doors ANSELMI AN 180 3D, satin chromeCode: SB00026861Art. Nr.: AN 180 3D (14)Price:From €40.56In Stock: 0 pc. -

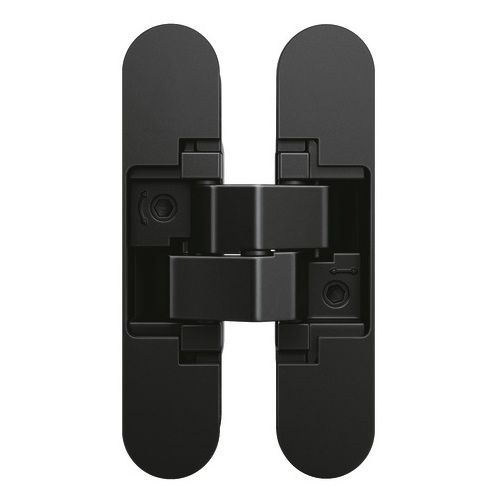

Concealed hinges for exterior doors ANSELMI AN 180 3D, blackCode: SB00026720Art. Nr.: AN 180 3D (18)Price:From €40.56In Stock: 0 pc.
| Manufacturer | SIMONSWERK |
|---|---|
| hinge type | concealed hinge |
| hinge shape | rounded |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | class 3 |
| fire safety | suitable for fire and smoke safety doors |
| purpose | for exterior doors |
| leaf material | wood |
| load capacity | middle |
| leaf maximum weight | 80 kg |
| suitable for aluminium frames | suitable |
| suitable for steel frames | not suitable |
| suitable for industrial frames | suitable using additional mounting parts |
| suitable for timber frames | suitable |
| anti-corrosion resistance | not certified |
| adjustment | adjustable |
| adjustment type | may be adjusted without removing door from its frame |
| groove for leaf seal | no |
| anti-intruder protection | yes |
| cutter diameter | 24 mm |
| collar ring | 30 mm |
| height | 110 mm |
| milling depth for leaf part | 25.9 mm |
| milling depth for frame part | 26.4 mm |
| leaf part width | 24 mm |
| frame part width | 24 mm |
| maintenance | not required (self-lubricating bearings) |
| installation template | available for sale or rent |
| fastening elements | must be ordered separately |
| material | ZAMAK / steel |
| Series | ANSELMI |
