Door knob set TARGA/K-103 K7 FS for fireproof emergency doors
Product code
MB00009051
All prices include VAT
From
€34.59
Only %1 left
Stainless steel door handle with door knob for fireproof emergency doors TARGA/K-103 FS
Manufacturer - DIECKMANN (Germany)
Manufacturer - DIECKMANN (Germany)
-
- complies with DIN 18 273 standard for fire safety doors and with EN 179 standard for emergency door equipment
- steel sub-construction with click-on rose and supporting lugs Ø 8 mm
- corresponds to grade 4 in use and durability according to EN 1906
- concealed screws M5 with unscrewing protection
- suitable for both left and right hand doors
- with fixed joint in self-lubricating bearing
- door thickness: 40-65 mm (WC 40-59 mm)
- handle length: 142 mm
- handle diameter: 22 mm
- spindle square: 9 mm
- backplate size: 173 x 54 x 8 mm
- centre distance: 72 mm
- material:
-
-
- stainless steel matt satin
-
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

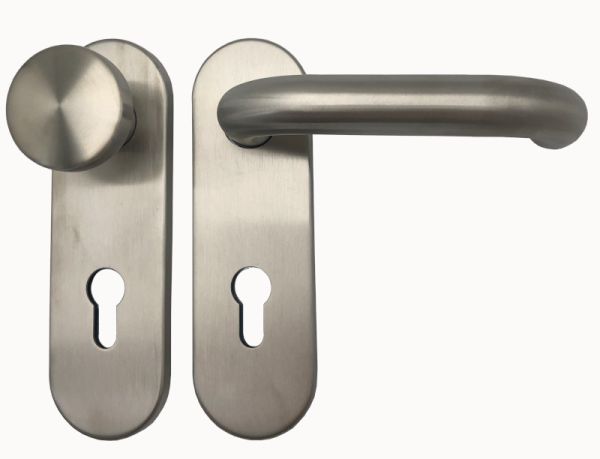

Fire safety door handle set TARGA/K-103 FS/AP with knob K7 and short backplates PZ 9/72, stainless steelCode: SB00011326Art. Nr.: 5203/0772/00Price:From €60.15In Stock: 0 kit -

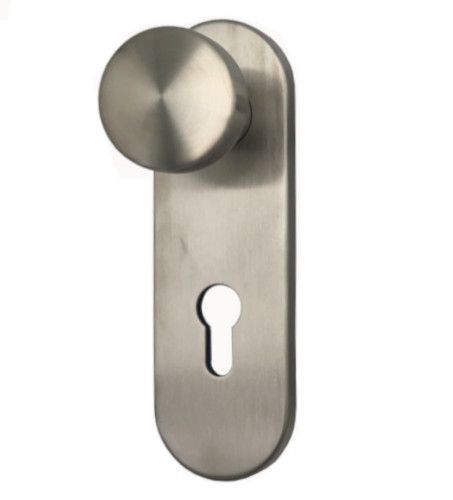

Targa/K inactive door knob on short PZ backplate (half-set), stainless steelCode: SB00011327Art. Nr.: 5203/0772 EST/2Price:From €34.59In Stock: 0 pc.
| Manufacturer | DIECKMANN |
|---|---|
| Series | TARGA |
| material | stainless steel |
| leaf material | for wooden and metal doors |
| purpose | for interior doors / for exterior doors |
| construction | lever handle / inactive door knob |
| set | short backplates |
| door direction | universal use for DIN right and left hand doors |
| load capacity | high |
| class as per EN 1906 | class 4 |
| suitable for emergency exits | complies with 179 - emergency door equipment |
| fire safety | fire safety certified according to EN1906 |
| compatibility standard | German (DIN) |
| handle construction | with fixed joint in self-lubricating bearing |
| material: sub-construction | steel |
| door thickness | 40-65 mm (WC 40-59 mm) |
| locking function | PZ - with profile cylinder hole |
| centre distance PZ | 72 mm |
| handle length | 142 mm |
| handle diameter | 22 mm |
| distance from leaf surface to outer edge of handle | 68 mm |
| handle square spindle size | 9 mm |
| backplate/rose shape | round |
| backplate/rose size | 54 x 173 |
| backplate/rose thickness | 8 mm |
| installation type | screw on |
| size | 8 x 140 mm |
| fastening type | concealed screws, with unscrewing protection |
| door knob size | Ø50 mm |
| door knob shape | round |
| fastening centre distance | 90.5 mm |
| centring lug diameter | 8 mm |
| fastening elements | included in set |
