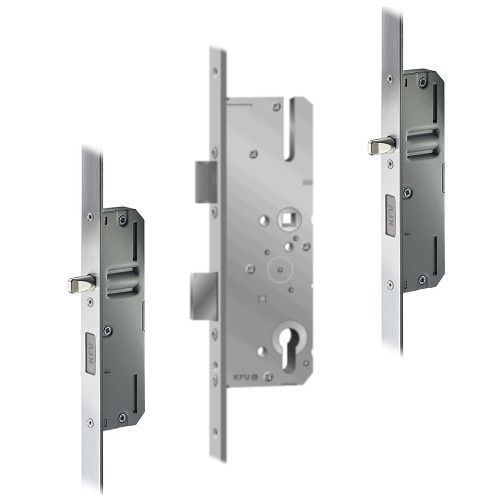

Ugunsdroša daudzpunktu slēdzene ar apaļajiem aizbīdņiem KFV BS2300 FS

Fireproof multi-point lock with round bolts KFV BS2300 FS

Manufacturer - KFV

• fireproof multi-point lock with 3 locking points
• all locking elements and levers are operated with a key
• universal application for both right and left-hand doors
• anti-burglary protection with multiple locking points
• can be combined with standard door fittings
• standardized body milling
• base lock for profile cylinder and 2 additional locks with round steel bolts on both sides of the base lock: Ø11mm
• axis depth D: 55 mm, 65 mm
• center distance: 72 mm
• key-operated latch, 2-stage bolt throw: 20 mm (for sizes D 25 and 30 mm - bolt throw 10 or 15 mm respectively)
• base plate with threaded holes for screws up to M6 for mounting the cover
• handle hole square: 9 mm
• all locking elements are shiny nickel-plated, all lock cases are closed and zinc-plated
• base lock case height: 210 mm, case thickness: 16 mm;
• distance from the center of the cylinder to the rear of the case: 17.5 mm (if D is 35-50 mm) or 23.5 mm (if D is 55-100 mm)
• possible finishes: stainless steel (front plate)

Safety aspects

• Horizontal steel round bolt prevents the door from being broken open and violently pulled out of the frame.
• Hardened steel elements significantly increase the strength of the lock
• The main lock bolt with anti-saw protection prevents violent attempts to open the door
• Complies with DIN V 18103 (ET1, ET2, ET3) standards for doors with anti-burglary protection.
• Lockable with a key

Advantages

• Strong closing mechanism holds the door tightly in the frame and prevents drafts.
• Tight closure ensures noise and heat insulation
• High-quality mechanism is easy to operate
• The lock retains its perfect functionality even after particularly long and intensive use
• Patented technology guarantees easy, precise installation

Applications

• main exterior doors of houses, as well as basement and yard doors
• apartment doors
• particularly tall interior doors
• other objects where it is necessary to ensure a high level of security and prevent door twisting

ONE Size

• Uniform milling
• Identical screw positions
• Uniform additional body height: 150 mm
• Standard rear axle depth: 17.5 mm

ONE Quality

• Reduced lock case thickness: 15 mm
• Improved locking hook design
• Identical locking gear suspension
• Soft-lock tongue for quiet and easy operation
• High energy efficiency with secure and tight door sealing

ONE Workflow

• High degree of modularity, maximum flexibility, precise, uncomplicated installation process
• 1:1 transition from existing milling types, e.g. B001
• main lock can be replaced with an axis depth of 25-80 mm
• Optional retrofit – door opening limiter (for all variants with 2 additional bodies starting from a shaft depth of 35 mm)
• Simple DIN direction change
• Easy Soft-lock tongue replacement, including insert for roller tongue
• Compatible with all current counterplates

New type of multi-point locks BS-2300 from the modular system KFV ONE - reduced lock program with uniform milling and universal latch replacement principle, which optimizes manufacturer costs and streamlines the installation process.

Montāžas un lietošanas instrukcijas

KFV ONE montāžas instrukcija

KFV ONE lietošanas instrukcija

Dokumentācija

Sertifikāts IFT Rosenheim 230-7060937-5-2 (DE/EN)-KFV ONE
